Overview:

Key applications

  • Large data centers
  • Colocation facilities
  • Server farms
  • Telecommunication installations
  • Internet service providers
  • Transportation systems
  • Security operations
  • Broadcasting and entertainment
  • Process control equipment
  • Financial systems
  • Credit card operations
  • Healthcare
  • Industrial systems
  • Multiple medical imaging units

The Power Xpert 9395 UPS provides industry-leading efficiency and scalable battery runtimes in a small footprint. A modular UPS, the Power Xpert 9395 UPS is suited for large data centers, healthcare applications, multi-tenant data centers, light industry, and other critical systems can lower their total cost of ownership. Monitor and manage your 9395 UPS with the color LCD touchscreen display.

  • Power Rating: 200-1200 kVA
  • Voltage: 480V, 400V or 600V
  • Form Factor: Tower

For more than 40 years, Eaton has been dedicated to delivering the most technologically advanced products for our customers' mission-critical applications—a commitment exemplified by the Power Xpert 9395 UPS. With an unprecedented level of power performance, reliability and energy savings, the state-of-the-art 9395 has raised the bar in three-phase power protection technology.

The reliable solution

Providing high availability for your critical systems at all times, the 9395 was designed with numerous technological advancements that create an unprecedented level of reliability while emphasizing serviceability–lowering MTTR and enhancing availability.

Double-conversion design offers the highest protection possible

Unlike some other commercially available UPS technologies, the double-conversion design completely isolates output power from all input power anomalies and delivers 100-percent conditioned, perfect sine-wave output—regulating both voltage and frequency. Even when presented with the most severe power disturbances, power output remains stable. Output voltage THD is held within two percent of nominal specification for linear loads, and within five percent for nonlinear loads—making the 9395 ideal for supporting equipment that’s sensitive to a distorted voltage input. Additionally, the 9395 excels at supporting leading power factor loads, which are becoming more prevalent in new or updated data centers. The 9395 handles leading loads, down to 0.9 power factor, without de-rating.

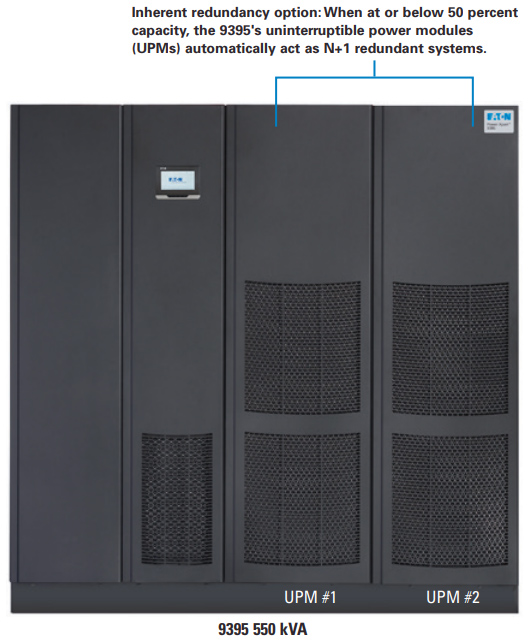

Inherent redundancy option

Surveys focused on efficiency in data centers reveal that UPSs are often under-loaded–frequently at less than 50 percent. To capitalize on this trend and create even greater reliability, you have the option to configure the 9395 with inherent redundancy. Traditional UPS manufacturers can't deliver this additional availability without adding a more costly second UPS module.


Lowest Total Cost of Ownership (TCO):

  • Reduces power and cooling
  • Conserves valuable data center floor space
  • Reduces cost and unexpected future growth risks

Customization and flexibility:

  • Offers a flexible system interface configuration
  • Human Machine Interface (HMI) design allows customization display unique to your site layout

Ease of management:

  • Provides easier access to detailed status information
  • Optimizes server virtualization through power management and connectivity software
  • Increases uptime with 24x7 remote monitoring and reporting capabilities

Eliminate system-level failure

N+1 redundancy design provides high reliability and eliminates potential for single-point of failure.

Compatible with Eaton lithium-ion batteries

The weight and dimensional benefits of lithium-ion battery cabinets create the optimal solution for your white or gray space.

Eaton's EnergyAware UPS technology

In partnership with Microsoft, Eaton recently retrofitted a 9395 UPS with additional software and controls that turned this underutilized data center asset into a profit center.

Bundle up with PredictPulse

Eaton's PredictPulse Wireless is installed on all 9395 UPS family models, including the Power Xpert 9395 UPS models, at no extra charge. Service technicians install and activate this service during startup using a cellular broadband modem/router, streamlining the setup process for customers. In addition, a one-year subscription for PredictPulse 24x7 monitoring and management service is included with each purchase.

Benefits:

Leading sustainability

  • Highest efficiency ratings lower utility costs
  • Lowest total cost of ownership and lifecycle carbon footprint
  • Smallest footprint and weight
  • Lowest transportation and installation costs

Stronger power performance

  • Lowest input to THD enhance compatibility with upstream power systems
  • Lowest output THD
  • Optimum generator sizing
  • PFC power supply compatible

Highest reliability and availability

  • Powerware Hot Sync wireless paralleling
  • Superior battery management
  • Inherent redundancy
  • Scalable architecture that adapts to increasing power requirements

Robust manageability

  • Superior control and connectivity
  • Color touchscreen display provides metering and management options

Specifications:

Eaton Power Xpert 9395 UPS Specifications
UPS rating (1.0 power factor)
kW 225, 275, 450, 500, 550, 650, 750, 825, 1000, 1100
kVA 202, 250, 405, 450, 500, 585, 675, 750, 900, 1000
General characteristics
Efficiency >94% (99% with ESS)
Parallel capability 4 distributed, 32 with SBM
Max modules per size  Up to 3 modules 550 kW
Up to 4 modules 825/1100 kW
Audible noise <76dBA @ 1 meter
Altitude (max) 2000m at 40ºC (104ºF)
N+1 redundancy capable Yes
Field upgradeable  Yes
System bypass module Included
Control panel (LCD) Color touchscreen
Battery startup Standard
Frequency conversion Standard
Multi-language Standard
Building alarm inputs 5 (galvanic isolated)
Input characteristics
Voltage 480V standard; and 400V available
Voltage range +10% / -15%
Frequency range  45-65 Hz
Power factor  0.99 (minimum)
Input current distortion  <3.5% (no input filter required)
Soft start capability Yes
Internal backfeed protection Yes
Output characteristics
Voltage  480V standard; and 400V available
Regulation  ±1%
Inverter  PWM with IGBT switching
Voltage  THD <2% (100% linear load); <5% (non-linear load)
Load power factor range  Up to a .9 power factor leading without derating
Battery
Battery types  VRLA, AGM, wet cell
Battery voltage  480V
Temperature compensation  Optional
Charging method  ABM technology or float, selectable
Dimensions and weights
225 kVA, 275 kVA
52.4”w x 32.7”d x 73.6”h (1786 lb)
225 kVA redundant, 275 kVA redundant  73.7”w x 32.7”d x 73.6”h (2875 lb)
450, 500, 550 kVA  73.7”w x 32.7”d x 73.6”h (2977 lb)
450, 550 kVA redundant  103”w x 32.7”d x 73.6”h (4153 lb)
Field upgrade module, 225 or 275 kVA  30”w x 32.7”d x 73.6”h (1176 lb)
650, 750, 825 kVA 140.9"w x 32.7"d x 73.7"h (5065 lb)
650, 750, 825 kVA +1 redundant  170.2"w x 32.7"d x 73.7"h (6365 lb)
1000, 1100 kVA  170.2"w x 32.7"d x 73.7"h (6525 lb)
Certifications
Safety UL1778, cUL
EMC IEC 62040-2, EN50091 Class A (restricted access)
Options
  • External maintenance bypass
  • PDU, RPP and STS
  • Maintenance bypass module, matching cabinet, 2/3/4 breaker
  • DC disconnects
  • 65 or 100 kAIC input breakers
Communication cards Four communication bays standard. The following connectivity options can be installed at any time:
  • PXGX-UPS card (included with eNotify activation)
  • Modbus RTU card
  • AS/400 Relay card
  • Industrial Relay card
  • Powerware HotSync CAN Bridge card
  • Environmental Monitoring Probe (included)


Remote inputs/outputs: Five building alarm inputs and one summary alarm contact (5A @ 120V) standard
Remote monitor panel: Eight backlit status indicator lamps plus an audible horn

Software compatibility Eaton Intelligence Platform:
  • Automate: Make tasks simpler via advanced alerts and automated resolution
  • Monitor: Make data actionable through faster, scalable interpretation and analysis
  • Visualize: See beyond power consumption through 3D infrastructure visualizations
  • Predict: foresee power component failure with cloud-based analytics

Images:


Power Xpert 9395 Right View
Power Xpert 9395 Left View

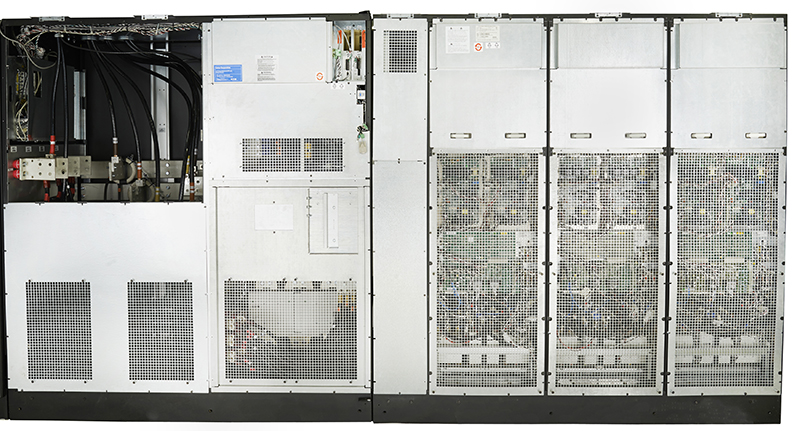

Power Xpert 9395 Front View

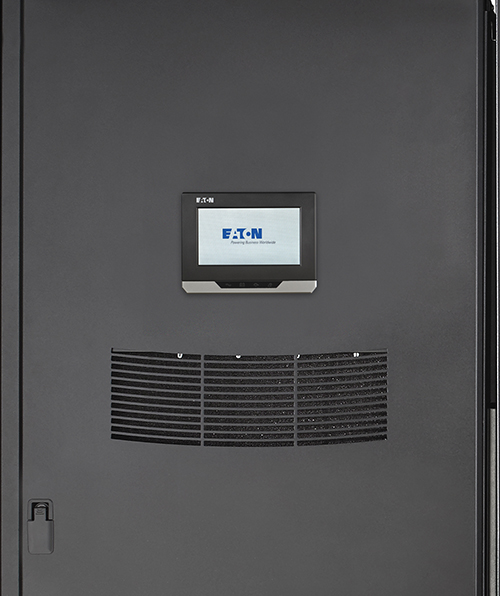

Power Xpert 9395 LCD Screen

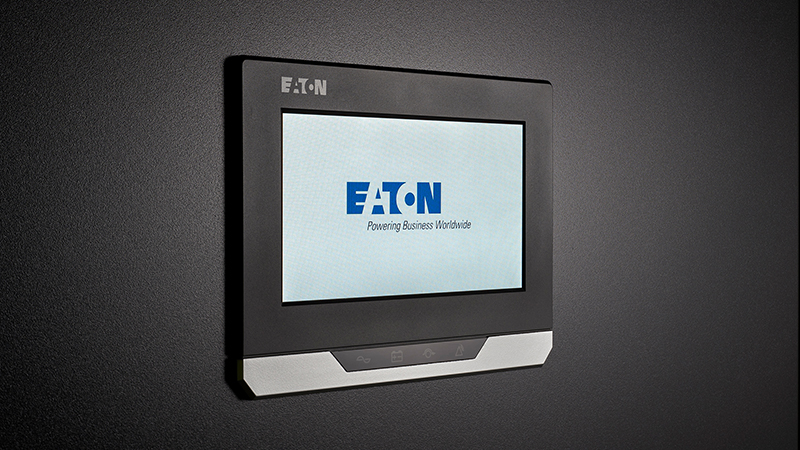

Power Xpert 9395 Touchscreen

Documentation:

Download the Eaton Power Xpert 9395 UPS Datasheet (PDF).
