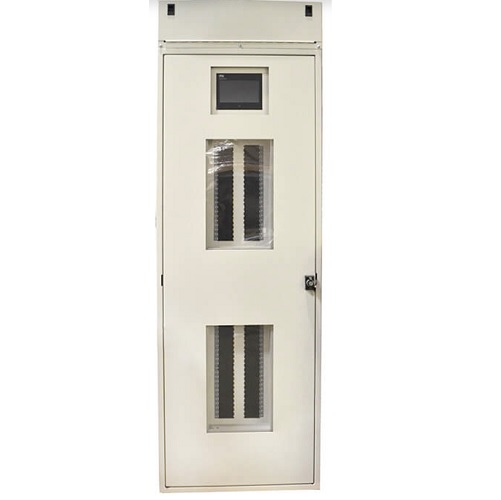

Eaton PDI Wall Mount RPP
Remote Power Panel (RPP) for IT Equipment
More pricing below, click here!
Overview:
With many different configurations, the PDI Wall Mount Remote Power Panel is a stream-lined RPP option. Its 9” x 26” footprint allows wall-mount installations that can fit into the smallest spaces. When combined with communications, BCMS Monitoring, and multiple panelboards configurations, the PDI Wall Mount RPP can be adapted to the most demanding mission critical facilities.
Configurable Panelboard Distribution
The PDI Wall Mount RPP can be configured with multiple panelboard manufacturers and styles.
Flexible Service Entrances
Landing Input and Output Cables has never been easier with Top/Bottom Entry/Exit configurations.
Front Accessibilty
The PDI Wall Mount RPP has been designed with front accessibility to give electricians easier access for working on equipment.
Trapped Key Interlocks
Mission Critical PDI Wall Mount RPPs utilize trapped key interlocks for the ultimate in sequential control of the unit.
Intelligent Power Monitoring
PDIs Branch Circuit Monitoring System (BCMS) allows for the pro-active management of power usage and availability.
Specifications:
| Eaton PDI PowerPak RPP Specifications | |
|---|---|
| Ratings | |
| Input/output: | 3-phase, 4-wire plus ground |
| Input voltage | @ 50 Hz: 220V – 415V @ 60 Hz: 208V, 400V, 415V, 480V |
| Safety standards | ETL Listed to UL and CSA standards |
| Mounting options | Wall |
| Operating Conditions | |
| Storage temperature | -67°F to +185°F (-55°C to +85°C) |
| Operating temperature | +32°F to 104°F (0°C to 40°C) |
| Audible noise | ≤45dBA |
| Relative humidity | 0% to 95% non-condensing |
| Operating altitude | Up to 6,600 ft. (2,000m) |
| Monitoring | |
| Monitor | PDI WaveStar color touch monitor |
| Communications | serial RS-485 modbus RTU, optional SNMP or TCP/IP communications |
| Distribution panelboards/sub-feed breakers | |
| Style | Classic, IEC, finger-safe |
| Number of poles | 36, 42, 48, 72, 84 |
| Amerage | 225A, 400A |
| Voltage | Up to 480V |
Pricing Notes:
- Pricing and product availability subject to change without notice.
