Eaton ATS Rack PDU
15- and 20-amp rack automatic transfer switches


Eaton ATS Rack PDU

Eaton Products
ATS Rack PDU
Eaton ATS rack PDU, 1U, 1.44 kW max, 120V, 12A, Single-phase, 10 ft cord, Input: (2) 5-15P, Outlets: (10) 5-15R
#EATS115
Our Price: $1,211.00
Eaton ATS rack PDU, 1U, 1.92 kW max, 120 V, 16 A, Single-phase, 6 ft cord, Input: (2) 5-20P, Outlets: (10) 5-20 R
#EATS120
Our Price: $1,390.00
Eaton ATS rack PDU, 1U, 3.33 kW max, 200-240V, 16A, Single-phase, 8 ft cord, Input: (2) L6-20P and (2) C20, Outlets: (8) C13 and (1) C19
#EATS220
Our Price: $1,244.00

More pricing below, click here!

Overview:

The Eaton automatic transfer switch (ATS) PDU enables you to remotely monitor alerts with compatible Eaton Gigabit Network cards, provide redundant power and keep key mission-critical applications running. Generally used to provide power redundancy to equipment with a single power supply, the Eaton ATS PDU automatically transfers power between sources with no interruption if the primary source fails or requires maintenance to eliminate equipment downtime.

Generally used to provide power redundancy to equipment with a single power supply, the eATS automatically transfers power between sources with no interruption if the primary source fails or requires maintenance, eliminating equipment downtime. Remotely monitor alerts, provide redundant power and keep key mission-critical applications running with this reliable and easy-to-use solution.

Graphical LCD

Available on 15- and 20-amp eATS models, the LCD simplifies eATS monitoring by displaying current and voltage monitoring to prevent overloading the PDU, identifying which source is being output and providing alarm warnings.

Fast transfer time

Eaton’s network-connected eATS Monitored solution delivers an approximate 10 milli-second transfer time to ensure power supplies stay on during transfer, and that critical equipment stays operational.

Network connection

The included communication card provides remote monitoring capabilities. In the event of a power drop, you will be alerted by email or your management software. The eATS allows you to continue running on the B feed, but alerts you of any issues with the A feed.

Out-of-phase transfer

The eATS Monitored safely transfers non-synchronous power sources. The Eaton eATS can be installed anywhere–regardless of phase wiring—without worrying about damage due to out-of-sync sources.

Configurations:

Eaton’s eATS Monitored models can be used in a variety of different configurations to monitor and manage connected equipment.

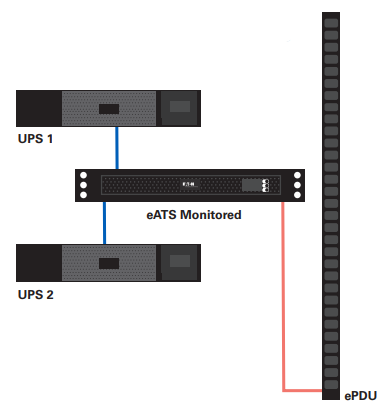

Dual-feed UPS:

eATS Monitored manages input from a pair of UPSs to create a redundant environment ensuring system uptime.

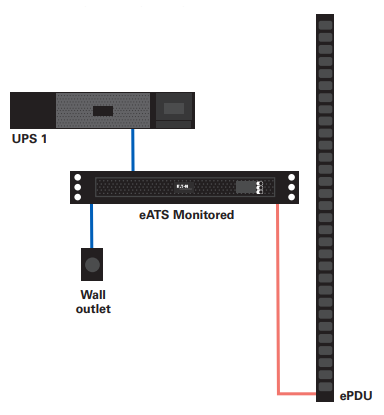

UPS bypass:

eATS Monitored can be used as a bypass to perform UPS maintenance without losing power to critical applications.

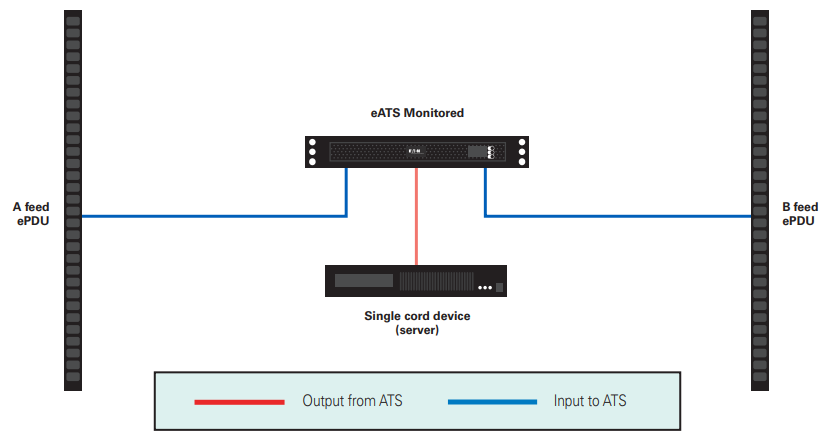

Dual-feed PDU:

Dual redundancy created for a single output device using A and B feed ePDUs.

Specifications:

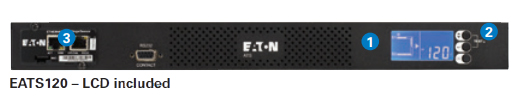

  1. Graphical LCD (available on the 15- and 20-amp models) signifies which source is being output (30-amp models have a static display for identifying the source)
  2. Test button can be used to manually force transfer
  3. Network card supports IPv6 and provides remote monitoring capabilities via web browser or SNMP
EATS115 EATS120 EATS220
Power input (2) 5-15P (2) L5-20P and 5-20P adapters included (2) L6-20P and C20 cords
Voltage 120 V 120 V 200–240 V
Current 12 A 16 A 16 A
Max kW 1.44 kW 1.92 kW 3.33 kW
Cord 10 ft 10 ft 10 ft
Output (10) 5-15R (10) 5-20R (8) C13, (1) C19
Graphical LCD Yes Yes Yes
Transfer time (milli-seconds) 8-10 18-20 (unsynchroized) 8-10 18-20 (unsynchroized) 8-10 18-20 (unsynchroized)
Dimensions (H x W x D) 1.7 (1U) x 17.25 x 9.84 in 1.7 (1U) x 17.25 x 9.84 in 1.7 (1U) x 17.25 x 9.84 in

Images:

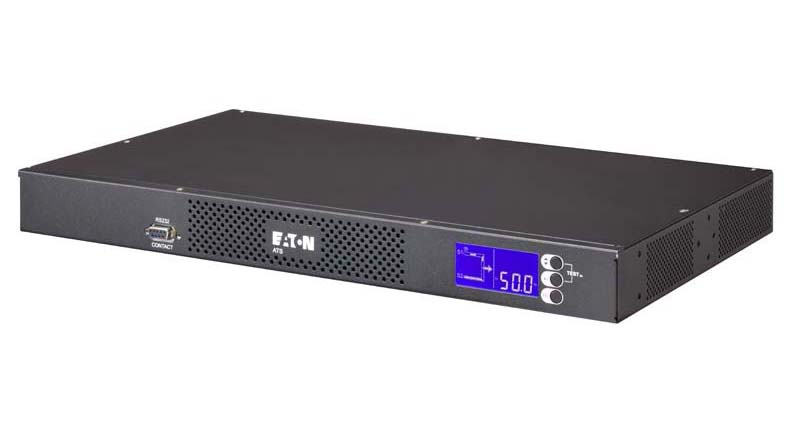

Angle View

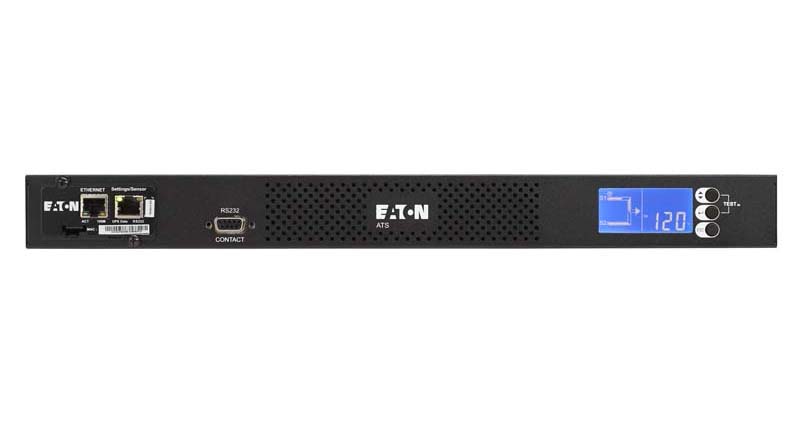

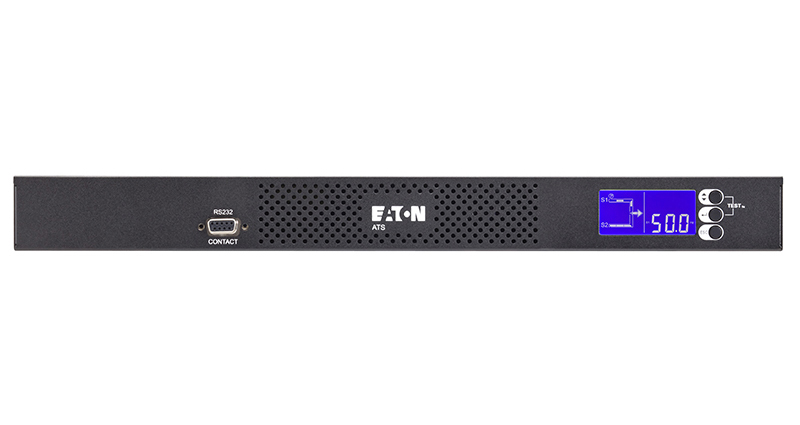

Front View

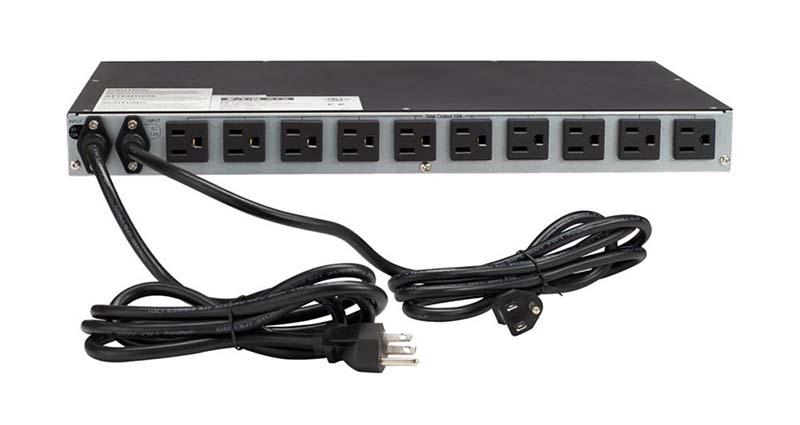

Rear View

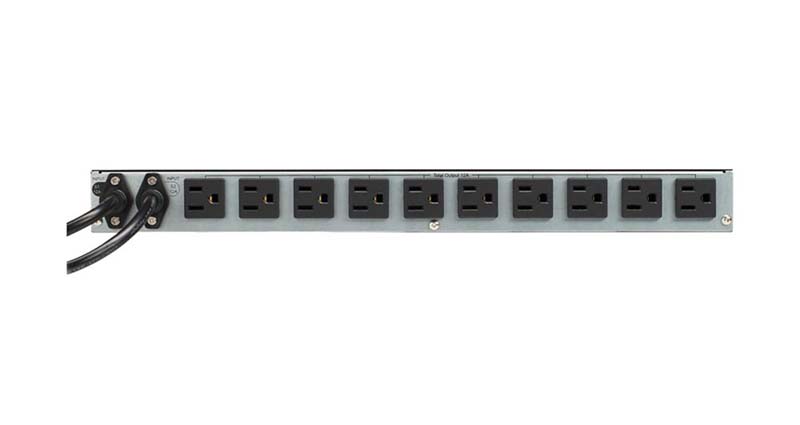

Rear View
Front Angle View

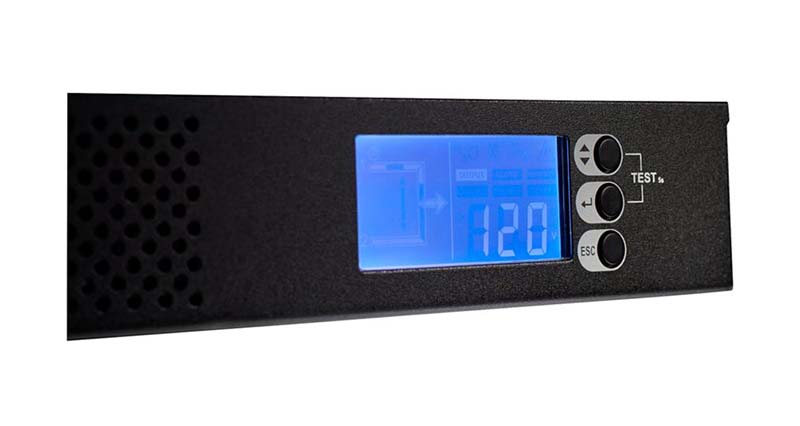

LCD View

Documentation:

Download the Eaton eATS Monitored Datasheet (PDF).
