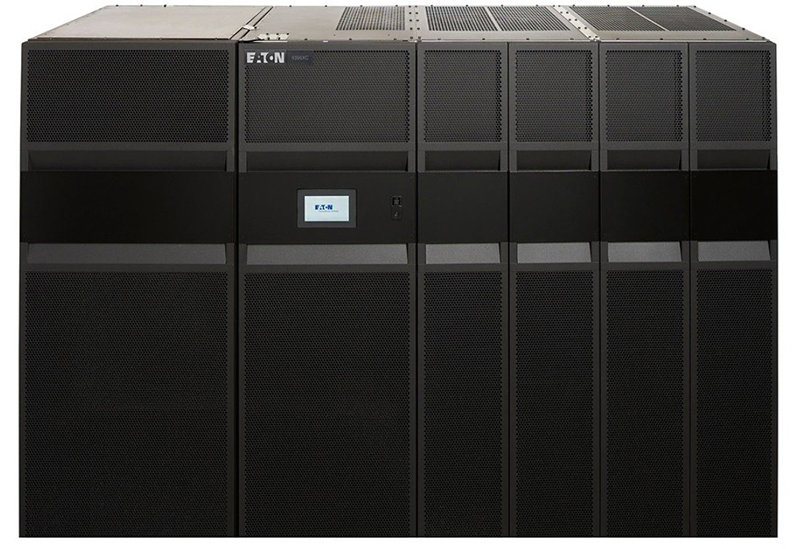

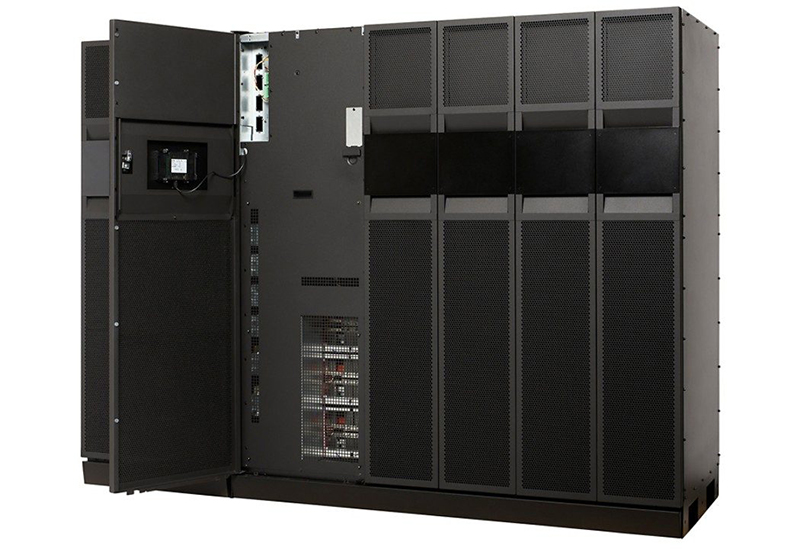

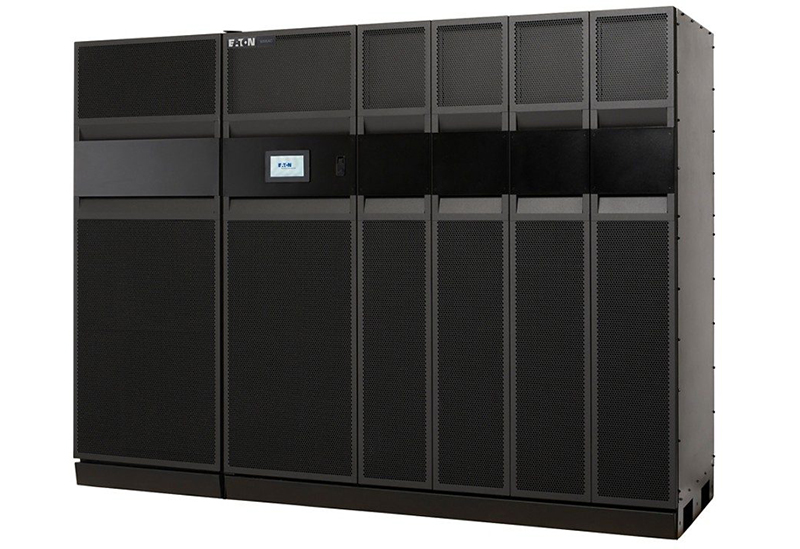

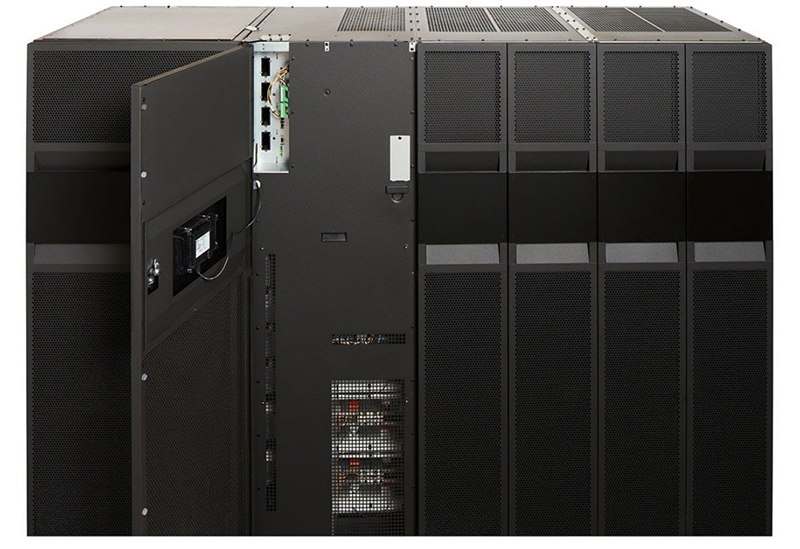

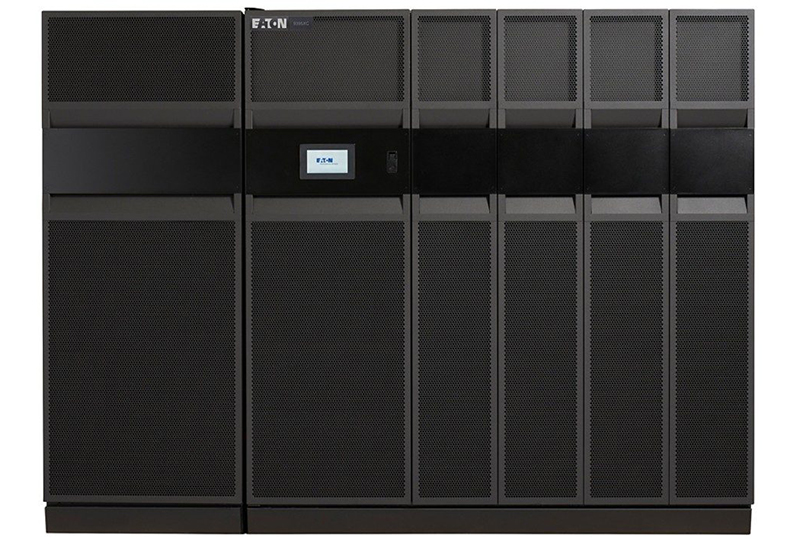

Eaton 9395XC UPS
1500 kW / 1500 kVA monolithic backup power UPS
More pricing below, click here!
Overview:
The latest addition to Eaton's 9395 UPS family, the Eaton 9395XC UPS sets new market leading capabilities to manage growing data consumption demands today and in the future. Designed to anticipate the growing needs of data centers for large power capacity, the new solution has the smallest footprint with the highest power density on the market and delivers reliable, flexible power protection for everything from hyperscale and multi-tenant data centers to enterprise and light industrial applications. The 9395XC UPS, which is compatible with both VRLA batteries and cost-effective lithium-ion UPS batteries, is available in a 1500 kW model, the first in a series of monolithic UPS solutions, with additional models expected in the future. With Eaton’s Energy Saver System mode activated, the 9395XC UPS can reach 99 percent efficiency.
- Power Rating: 1500/1500 kW/kVA
- Voltage: 480V 3W
- Form Factor: Tower
Small footprint. Big impact.
To address the challenges data centers face with growing data consumption and compute requirements, the 9395XC UPS provides market-leading footprint with the best power density (kw/ft2), leaving more space for revenue-generating IT equipment.
Easy deployment:
- World-class manufacturing processes to allow shortest lead-time from order entry to commissioning
- Self-diagnostic software and tighter integration with service tools minimize onsite commissioning
- Eliminates the cost of load bank rentals and minimizes burn-in testing energy costs with the Easy Capacity Test
- Global network of support and service personnel
Compact:
- Highest power density on the market, enabled by silicon carbide technology, to provide the best kW per square foot with up to 50% overall system footprint reduction
- Improved room configuration layout as stand-alone UPS or switchgear integrated system
- Prefabricated power solutions allows for improved room layout and system footprint
Reliable:
- Energy Saver System (ESS) provides transient suppression within the UPS
- Handles up to 0.7 leading or lagging load power factors without de-rating UPS capacity
- Power infrastructure monitoring and management with Eaton's Brightlayer Data Centers suite.
- HotSync patented load-sharing technology
Compatible with Eaton lithium-ion batteries
The weight and dimensional benefits of lithium-ion battery cabinets create the optimal solution for your white or gray space.
Bundle up with PredictPulse
Eaton's PredictPulse Wireless is installed on all 9395 UPS family models, including the 9395XC UPS, at no extra charge. Service technicians install and activate this service during startup using a cellular broadband modem/router, streamlining the setup process for customers. In addition, a one-year subscription for PredictPulse 24x7 monitoring and management service is included with each purchase.
Features:
Compact design
- Market leading power density, providing the best kW per square foot, leaving more space for revenue generating IT equipment
- Improved room configuration layout as stand-alone UPS or switchgear integrated system
- Prefabricated power solutions allow for improved room layout and system footprint
Rapid system deployment
- World class manufacturing processes to allow shortest lead-time from order entry to commissioning
- Self-diagnostic software and tighter integration with service tools minimize onsite commissioning
- Eliminates the cost of load bank rentals and minimizes burn-in testing energy costs with the Easy Capacity Test
Best uptime and reliability
- Highest energy efficient 9395 UPS to date
- 99 percent efficient with Energy Saver System (ESS)
- up to 97.5 percent efficiency in double-conversion modeEnergyAware native capabilities support the energy transition
- Multiple internal sensors with higher computing power to provide early warning capabilities and improve conditionbased maintenance
- Includes 1-year subscription to Eaton’s PredictPulse 24x7 monitoring and management service to proactively identify component risks, reduce downtime and expedited critical alarm response;
- Handles up to 0.7 leading or lagging load power factors without de-rating UPS capacity
- HotSync patented load-sharing technology enables parallel operating of static converters without communication for sync or loadshare signals
- Global network of over 2,000 support and service personnel
Efficiency and compatibility
ESS: How is it different than Eco mode?
- Instantaneous action: Less than two milliseconds transition time makes the UPS reaction time invisible to IT loads
- Inherent surge suppression: ESS provides transient suppression within the UPS—loads are protected from lightning events, even in ESS
- Fault discrimination: In a short circuit condition, the UPS detects the location of a fault (upstream or downstream), and reacts appropriately and instantly to protect the critical load
Specifications:
| Eaton 9395XC UPS Specifications | |
|---|---|
| UPS rating (unity power factor 1.0) | |
| kW/kVA | 1500/1500 |
| Efficiency | 99% in Energy Saver System (ESS) (up to 97.5% efficiency (480V) in double-conversion) |
| Parallel capability | 4 UPS units maximum for distributed bypass and 2 UPS units maximum with SBM |
| Audible noise | 67dBA @ 1 meter (50% load) 73dBA @ 1 meter (100% load) |
| Altitude (max) | 1000m at 40 degree C (104 degree F) for 1500/1500 |
| Input characteristics | |
| Voltage | 480V 3W |
| Voltage range | +10% / -15% |
| Frequency range | 45–65 Hz |
| Power factor | 0.99 for output loads greater than 60% |
| Input current distortion | <3% (no input filter required) |
| Soft start capability | Yes |
| Output characteristics | |
| Voltage | 480V 3W |
| Regulation | ±1% |
| Inverter | PWM |
| Voltage THD | <1% (100% linear load); <5% (non-linear load) |
| Load power factor range | Up to a 0.7 power factor leading/lagging without derating Up to a 0.5 power factor lagging with derating |
| Overload | 110% for 10 min; 125% for 120 sec; 150% for 15 sec; >150% for 300 msec (UPS transfer to Bypass after OL time expires) |
| Battery | |
| Battery types | VRLA, AGM, wet cell, lithium-ion |
| Battery voltage | 480V |
| Charging method | ABM technology or float, selectable |
| Dimensions (480V system) | |
| 1500 kW / 1500 kVA | 106”w x 33.7”d x 78.8”h |
| General characteristics | |
| Control panel | Color Touchscreen interface |
| Battery startup | Standard |
| Frequency conversion | Standard |
| Multi-language | Standard |
| Building alarm inputs | 5 (galvanic isolated) |
| Individual fan fail monitoring | Included |
| Power Semiconductor Temperature Monitoring | Included |
| Options | External maintenance bypass PDU, RPP and STS Maintenance bypass module, 2/3/4 breaker DC disconnects Human Machine Interface (HMI) designs for monitoring of connected equipment |
| PredictPulse remote monitoring and management service | PredictPulse is the industry’s first cloud-based 24x7 remote monitoring and predictive analytics subscription service to forecast data center power component failure and proactively replace components before failure. PredictPulse is included with the 9395XC UPS for the first year at no-charge along with the Eaton Environmental Monitoring Probe Gen 2 (customer self-installs via outbound email server or optional 4G/LTE wireless modem). |
| Communications | Direct battery monitoring via Modbus TCP/IP from UPS ethernet port Software compatibility: Software and Power Xpert Reporting The Eaton Gigabit Industrial Gateway Card can be installed at any time for the following protocols: HTTPS, TLS 1.2, SNMPv1, SNMPv3, NTP, TFTP, SMTP, SMTPS, BOOTP, DHCP, SLAAC, SSH, MQTTS, ModbusTCP, Modbus RTU, BACnet IP, BACnet BBMD Additional cards include: Eaton Environmental Monitoring Probe Gen 2 |
Images:
Documentation:
Download the Eaton 9395XC UPS Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
