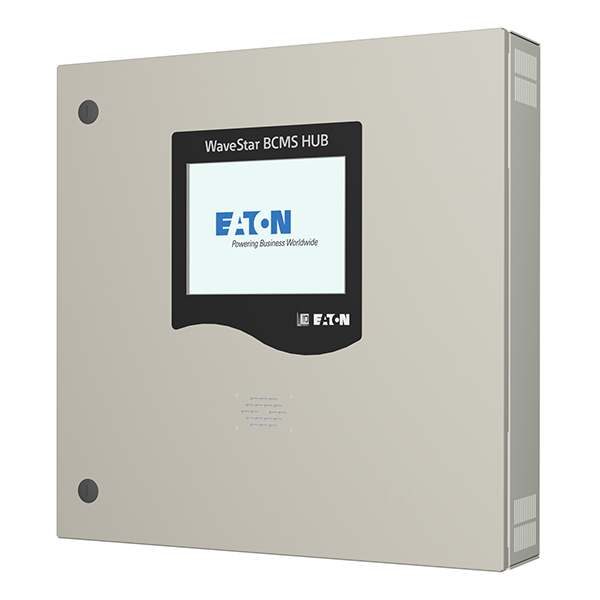

Eaton PDI Branch Circuit Monitoring System (BCMS) Hub
Branch circuit monitoring system display

Eaton Products
PDI BCMS Hub Models
Eaton PDI BCMS Hub
Get a Quote!

More pricing below, click here!


The Eaton PDI Branch Circuit Monitoring System (BCMS) Hub offers a convenient, centralized and easy-to-use platform for collecting, aggregating, tracking and displaying panelboard and busway electrical circuit performance metrics in support of a range of applications including fault detection, energy management and tenant billing. With the ability to centralize the collection and reporting of key electrical performance measurements across as many as 70 panelboards or busway devices the Eaton PDI BCMS Hub is the perfect solution for adding operational efficiency and greater convenience to your facility. Designed to work with branch circuit information coming from PDI Remote Power Panels (RPP), PDI Power Distribution Units (PDU), PDI PowerWave 2 busway distribution and stand alone panelboards Eaton PDI BCMS Hub can support nearly any panelboard configuration from PDI or other OEM vendors. With a 10” color touchscreen display the Eaton PDI BCMS Hub simplifies activities such as measurement validation, alarm management, maintenance and repair. With support for multiple communication protocols including Modbus RTU and Modbus TCP the WaveStar BCMS Hub can be easily integrated with nearly any BMS, DCIM or EMS in the market today.

PowerWave Bus System

Data center managers are tasked each day with collecting and managing a tremendous amount of information on the power architecture that supports critical loads. Once this information has been gathered, the next step is to interpret data from the monitoring of each branch circuit or server load by using Eaton’s patented Branch Circuit Monitoring System (BCMS).

Eaton has both raised-floor and solid-floor solutions that employ BCMS to make load management easy. The Eaton BCMS Hub brings together up to 70 downstream BCMS devices—at your finger tips—and allows you to focus where needed and stay ahead of power issues before they occur.

  1. Alarm event capture and log
    Scroll through real-time events captured on-screen for easy interpretation
  2. Alarm notification
    Email, pager and IP addressable
  3. Security features
    Scroll named users with log-in and password protection
  4. Branch circuit graphs and tabulations
    • By breaker and panelboard
    • Actual, warning and alarm settings real time

IP Address Access

The BCMS Hub can also be accessed via an IP address for real-time management of multiple devices over the web.

The standard BCMS Hub package also includes:

  • Modbus RTU protocol
  • Touchscreen WaveStar monitor to graphically show each BCMS-enabled panel board
  • Standard reporting software with exportable Excel files
  • Embedded web server IP addressable interface for remote monitoring
  • Software that looks at alarms, current and power measurements in real time through TCP / IP connections

Core Features:

Centralized monitoring

The Eaton PDI BCMS Hub centralizes the monitoring of branch circuit information across dozens of panelboards or busway equipment within your facility.

Intuitive information display

The Eaton PDI BCMS Hub comes with an intuitive 10” color touchscreen display for easy navigation and visualization of metering data and alerts.

Broad panelboard configuration support

The Eaton PDI BCMS Hub is capable of supporting the wide variety of panelboard and busway configurations found across equipment and facilities.

Multiple intergration options

The Eaton PDI BCMS Hub supports multiple integration options to simplify connectivity to your building management system, energy management system or data center infrastructure management solutions.


Eaton PDI BCMS Hub Specifications
Monitoring Capabilities
WaveStar BCMS Hub GUI 10.4" color touchscreen display
Data collection Devices include PowerWave, PowerWave 2 Busway BCMS & panelboard BCMS
Monitoring Capabilities
Protocol (downstream) MODBUS RTU via RS422/485; 2-wire or 4-wire
Baud rate (downstream) 9600
Protocol (upstream) Modbus RTU, modbus TCP I/P
Baud rate (upstream) Modbus RTU link at 9600 or 19200 – TCP I/P link via Cat5 cable
Parity (upstream) Odd, even or none
Communication format 8 data bits, 1 start bit, 1 stop bit
Electrical Characteristics
Input voltage 100 -277VAC – 1.2A, single phase + neutral + ground
Input frequency 50/60 Hz
Output voltage 24VDC – 3.15A
Power usage 75.6W Max
Weight Approx. 38 lbs. or 17.2 kg.
Dimensions 24"W x 24"H x 5"D
Enclosure rating NEMA 1
Operating conditions
Storage temperature -33° to +158°F (-36° to +70°C)
Operating temperature +32° to +140°F (0° to +60°C)
Realative humidity 0% to 95% non-condensing

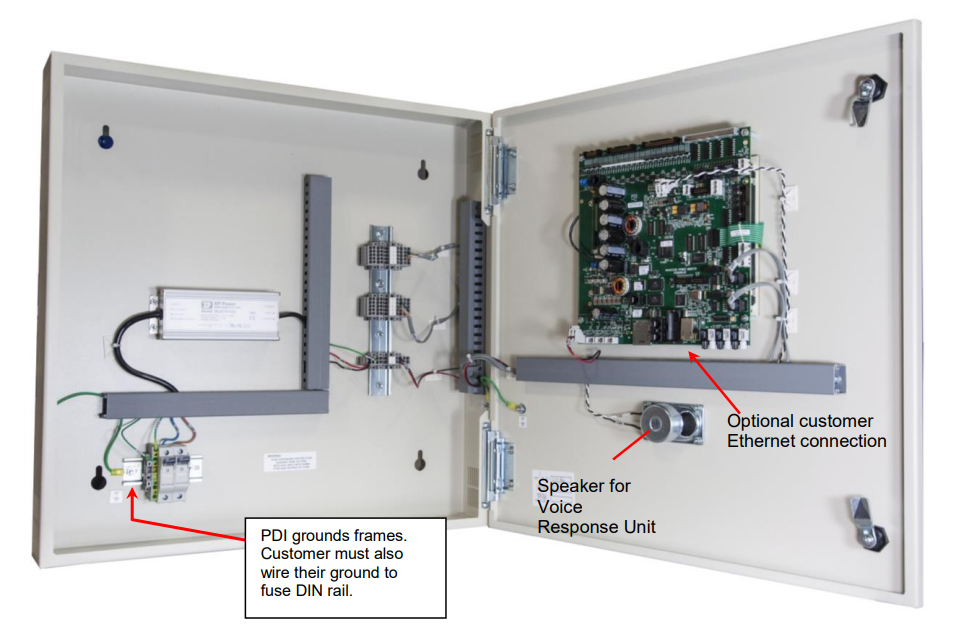

Internal Panels

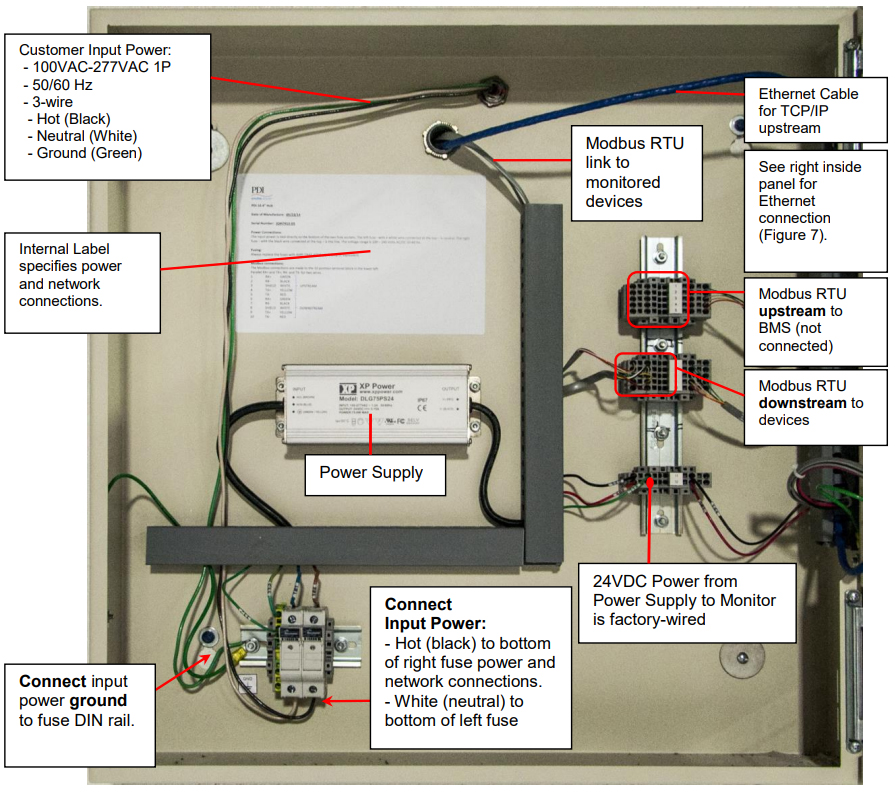

Power and Communications, Left Inside Panel


Download the Eaton PDI BCMS Hub Datasheet (PDF).
