Eaton Fuse Disconnect Rack PDU
The next generation of power distribution


Eaton Fuse Disconnect Rack PDU

Eaton Products
Fuse Disconnect Rack PDU
Eaton Fuse Disconnect Rack PDU, 0U, 17.3 kW max, 230/400V, 24A, Three-phase, 10 ft cord, Input: 309-532P6W, Outlets: (48) C13 Outlet grip and (12) C19 Outlet grip
#EMI356-10
Our Price: $2,355.00
Eaton Fuse Disconnect Rack PDU, 0U, 17.3 kW max, 200-240V, 48A, Three-phase, 6 ft cord, Input: 309-460P9, Outlets: (48) C13 Outlet grip and (12) C19 Outlet grip
#EMI359-06
Our Price: $2,487.00

More pricing below, click here!

Overview:

Eaton Fuse Disconnect rack power distribution units (PDU) offer data centers, especially those operating at higher voltages, a fuse capability that delivers high performance and protection. The rackmount fuse disconnect models are able to clear higher fault currents than models with circuit breakers of similar size. They feature a higher amp interrupt capacity that makes them an ideal fit for power-dense IT racks that are often subject to high fault currents.

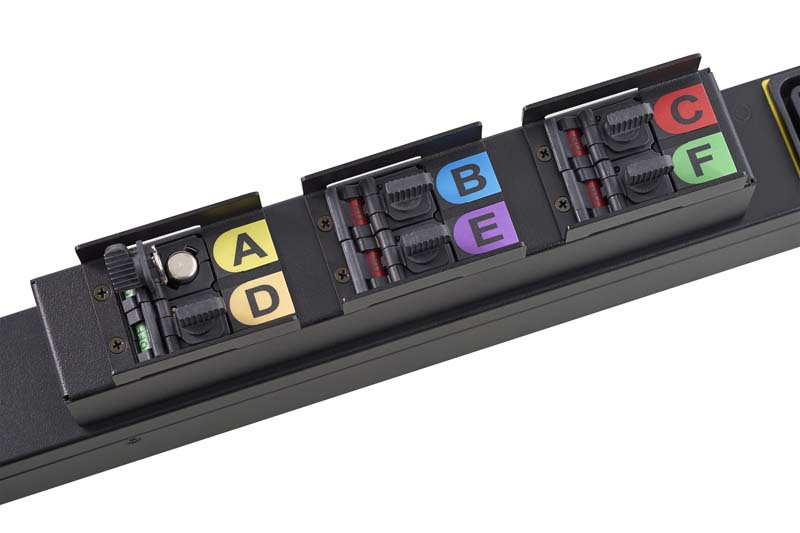

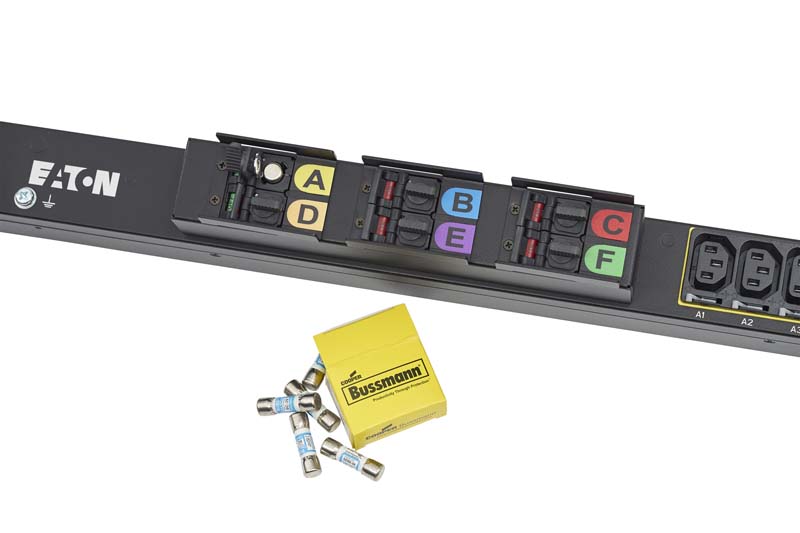

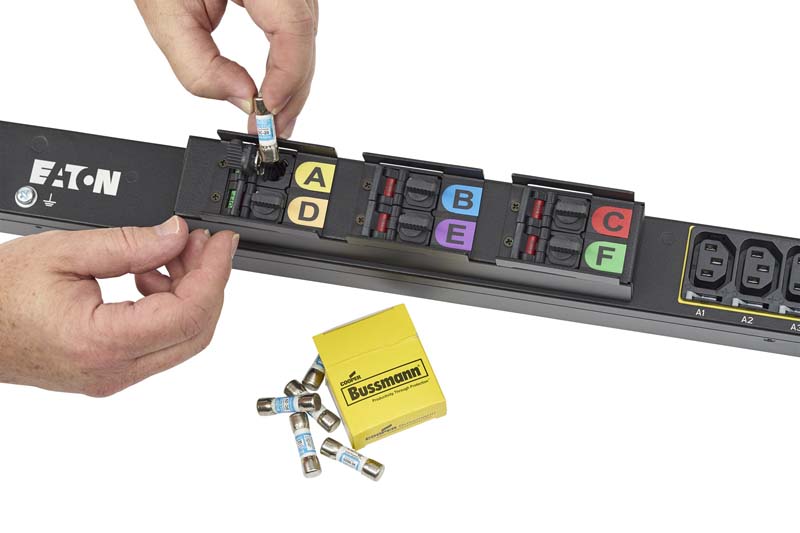

The patented Eaton low profile compact circuit protector provides the ability to hot-swap fuses, allowing them to be safely changed without removing power to the PDU that’s providing high availability to your critical equipment. Combined with Eaton’s ePDU G3 technology best-in-class features, the Fuse Disconnect rackmount PDU models are a perfect solution for data centers with high power densities looking for a high-power PDU.

Why choose fuses for your rack PDU?

  • Protect high power density applications
  • Clear higher fault currents than circuit breakers
  • Change fuses without removing power

Eaton ePDU G3 platform: The next generation of power distribution

Offered in Basic, Metered Input, Metered Outlet and Managed technologies, the new ePDU G3 fuse disconnect models include all of the same best-in-class features of the G3 platform.


Secure plugs in place with a lever-actuated grip to prevent accidental disconnect.

Daisy chain up to eight ePDUs to share same network connection and IP address.


Prevent unbalanced loading that would unnecessarily trip a breaker.

Increase uptime while enhancing serviceability with ability to remove network management module without removing power to the ePDU.


Fuses rather than circuit breakers:

Fuses aren’t always the answer and won’t replace ePDUs using circuit breakers in all applications. However, using fuses in a rack PDU can be a smart decision in data centers operating with 400/230 volt distribution. Here are some benefits of using fuses that make the ePDU G3 fuse disconnect a solution to consider:


1. Disconnect switch

Turn off power to the fused section and replace it without the need to unplug the PDU

2. Interrupt capacity

Interrupts larger currents than circuit breakers giving applications operating at higher voltages a solution for high fault currents

3. Current limiting

Limit the amount of fault current that is passed through to down-stream equipment

4. Selective coordination

Coordinate with upstream fuses to isolate faults by having the fuse in the PDU blow before the one upstream


Standard fuse holder Fuse disconnect switch Circuit breaker
UL standard UL 248 UL 248 UL 489
On/off control No Yes Yes
Reset after fault process Unplug PDU replace fuse Hot swap replace fuse Resettable
Stock spare fuses Yes Yes No, resettable
Current limiting Yes Yes No
Interrupting capacity 100 KAIC 100 KAIC 5 or 10 KAIC
Selective coordination Easy Easy Complicated

*Bold/yellow colored cells signify a preferred feature that provides an advantage

Specifications:


Function Input plug Cable Circuit protection Current Max kW Output receptacles Dimensions
(H x W x D)
EMI350-10 Metered input IEC60309 532P6W 10 (6) 20A 24 A 17.3 (24) C13, (6) C19 66.5 x 2.05 x 2.1 in
EMI351-10 Metered input L22-30P 10 (6) 20A 24 A 17.3 (24) C13, (6) C19 66.5 x 2.05 x 2.1 in
EMI352-10 Metered input IEC60309 532P6W 10 (6) 20A 24 A 17.3 (18) C13, (12) C19 66.5 x 2.05 x 2.1 in
EMI353-10 Metered input L22-30P 10 (6) 20A 24 A 17.3 (18) C13, (12) C19 66.5 x 2.05 x 2.1 in
EMI354-06 Metered input IEC60309 460P9W 6 (6) 20A 48 A 17.3 (12) C13, (12) C19 72 x 2.05 x 2.1 in
EMI355-HW Metered input Hardwired Hardwired (6) 20A 24 A 17.3 (48) C13, (12) C19 63.1 x 4.09 x 2.1 in
EMI356-10 Metered input IEC60309 532P6W 10 (6) 20A 24 A 17.3 (48) C13, (12) C19 63.1 x 4.09 x 2.1 in
EMI357-10 Metered input L22-30P 10 (6) 20A 24 A 17.3 (48) C13, (12) C19 63.1 x 4.09 x 2.1 in
EMI358-HW Metered input Hardwired Hardwired (6) 20A 48 A 17.3 (48) C13, (12) C19 63.1 x 4.09 x 2.1 in
EMI359-06 Metered input IEC60309 460P9W 6 (6) 20A 48 A 17.3 (48) C13, (12) C19 63.1 x 4.09 x 2.1 in

Images:

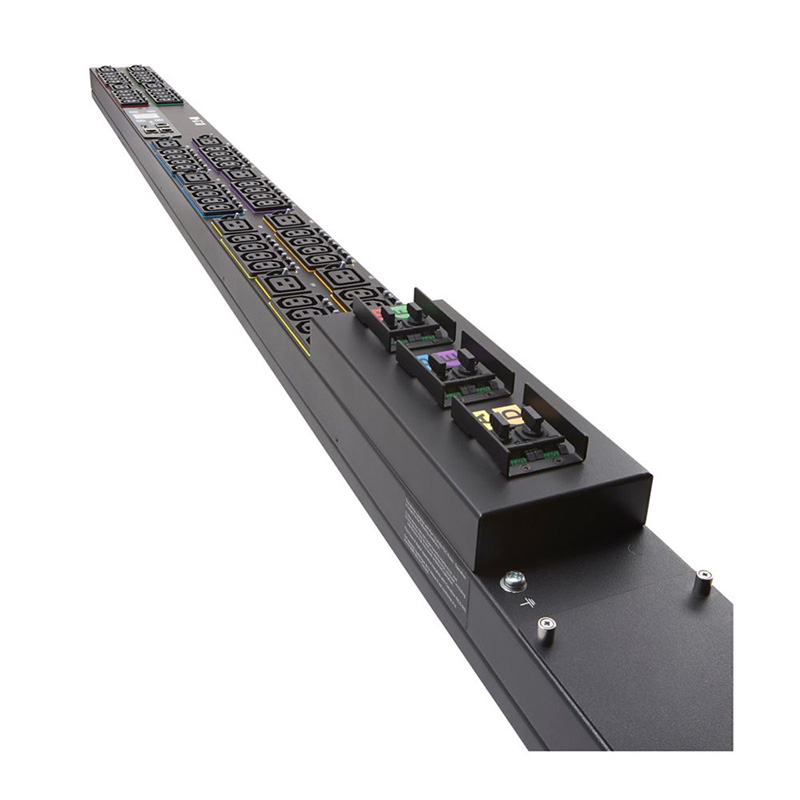

Angle View

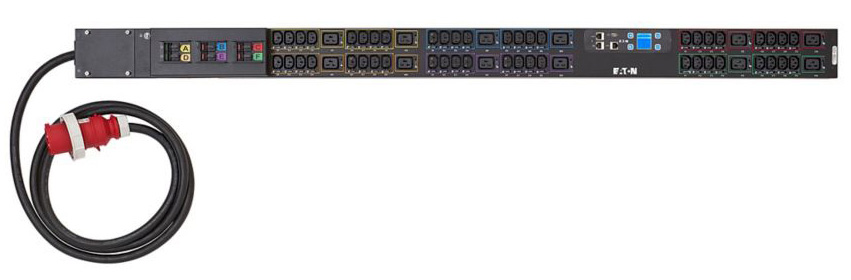

Front View

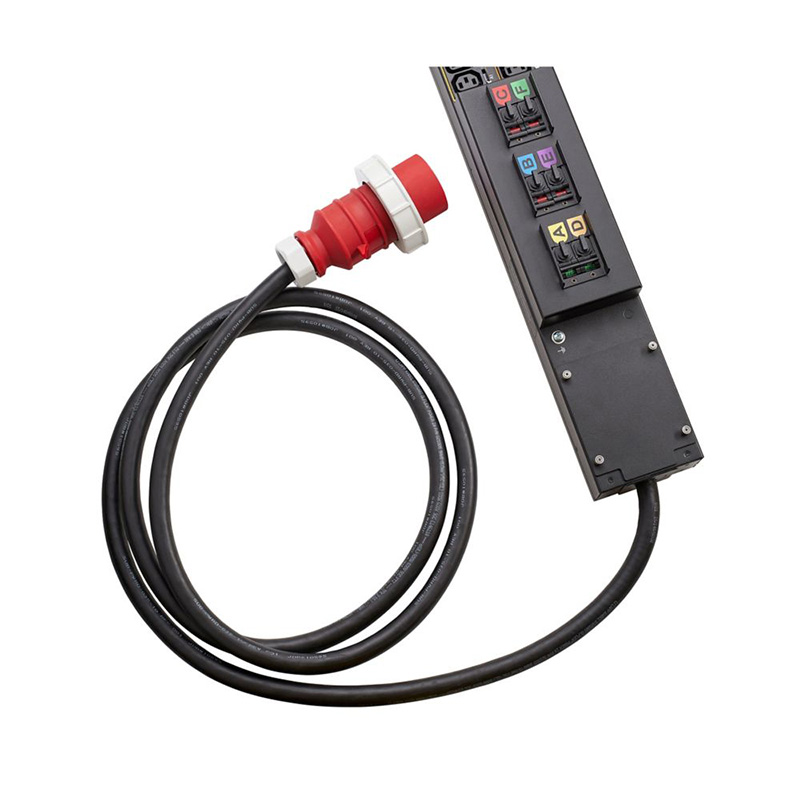

Rear View
Rear View
Front Angle View

Documentation:

Download the Eaton Fuse Disconnect Rack PDU Datasheet (PDF).
