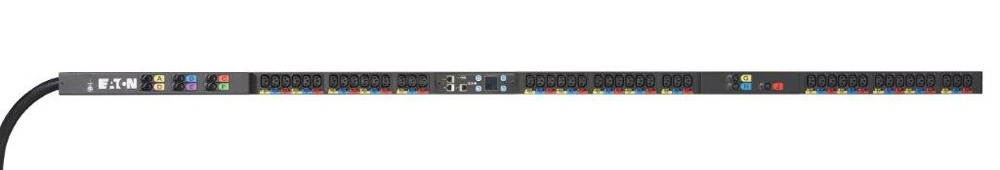

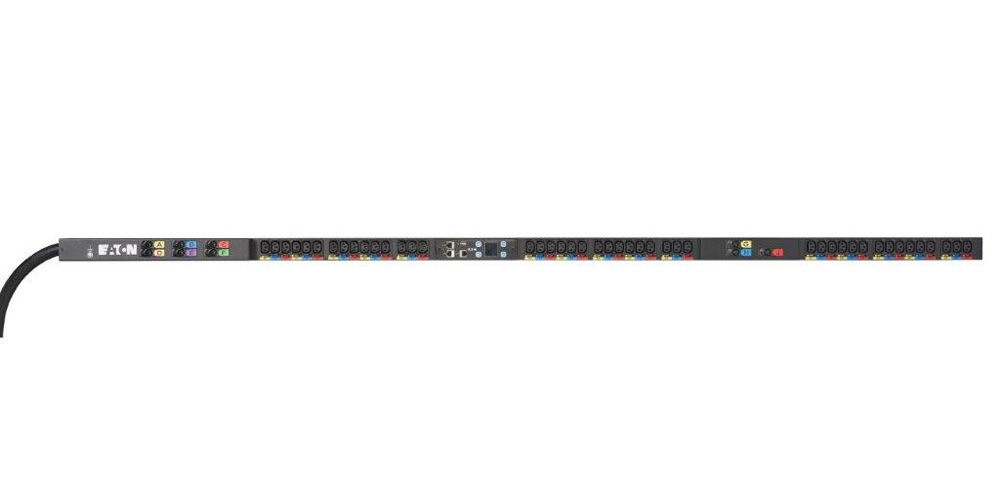

Created with data center design in mind, the Eaton High Density (HD) rack power distribution unit (PDU) builds off the best-in-class Eaton ePDU G3 technology. High density means more outlets in the same space and fewer PDUs to support your equipment’s power needs. With more outlets than any other PDU, this data center PDU not only gives you the number of outlets you want, it also gives you the type of outlets you need. The HD PDU offers two configurable outlet module slots with IEC and NEMA options. Mix and match the 10 modules to configure up to 54 outlets.
In addition, you can configure the cord entry position and cord length of the Eaton HD rackmount PDUs and install them easily with a tool-less mounting system for a seamless box-to-rack transition. With a configurable color chassis and alternating phase outlets, you can easily identify where power is coming from and going to in rack enclosures while also quickly distinguishing between A and B power feeds.
Designed with data center customers in mind, the HD rack PDU helps you make the choices you need to save time, save money and reduce risk.
Configure the cord entry position and cord length for a seamless box-to-rack transition. Combined with G3’s standard tool-less mounting system, you can install your PDUs without any tool fumbling or cord wrestling.
High density means more outlets in the same space and fewer PDUs to support your equipment’s power needs. Configure up to 54 outlets per PDU including the new C39 outlet for future proofing your deployments.
Easily identify where power is coming from and where it is going to with configurable color chassis and alternating phase outlets. When it is that easy to distinguish between A and B power feeds, losing power to your IT equipment or overloading a phase is less of a risk.

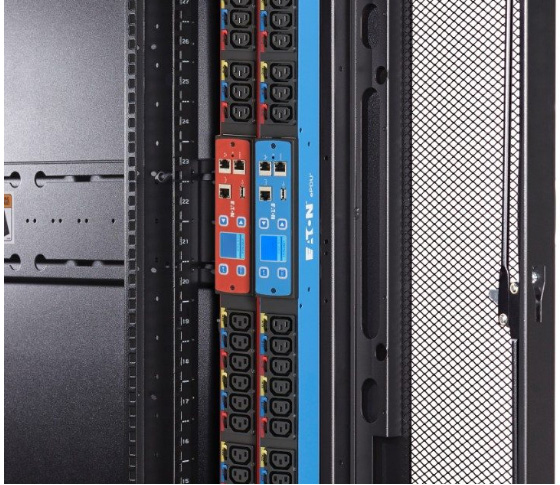

Optimize input for your environment
Optimize your PDUs for your IT environment with configurable input options. Create exactly what will work best in your data center.

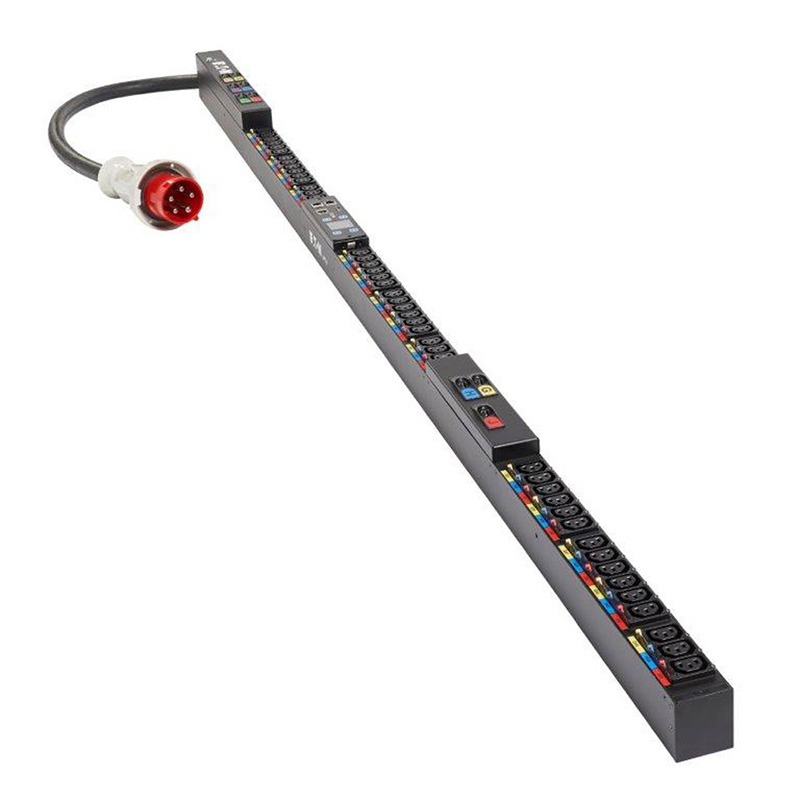

Input plug and cables: Choose from multiple options, including IEC, NEMA, locking and hardwired.
Input cord length: While the standard 6-foot and 10-foot cords fit most cases, some environments require something special. Whether you want enough cord to reach anywhere or you’re looking to reduce cable clutter, the HD rack PDU has additional options to match what you need.
Cord entry position: Reduce interference in racks and potential hazards by configuring your input cord for front or end entry.
Optimize output for your environment

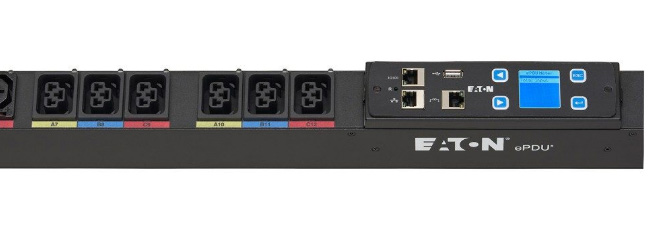

Eaton’s C39 outlet accommodates 15 and 20 amp input plugs.
Like its NEMA counterpart the 5-20P, the C39 outlet allows for both 15- and 20-amp inlets, allowing both C14 and C20 plugs to connect into a singular outlet. This flexibility allows you to swap out equipment without having the inconvenience of re-ordering a new rack PDU to meet specific outlet count requirements on a per rack basis.

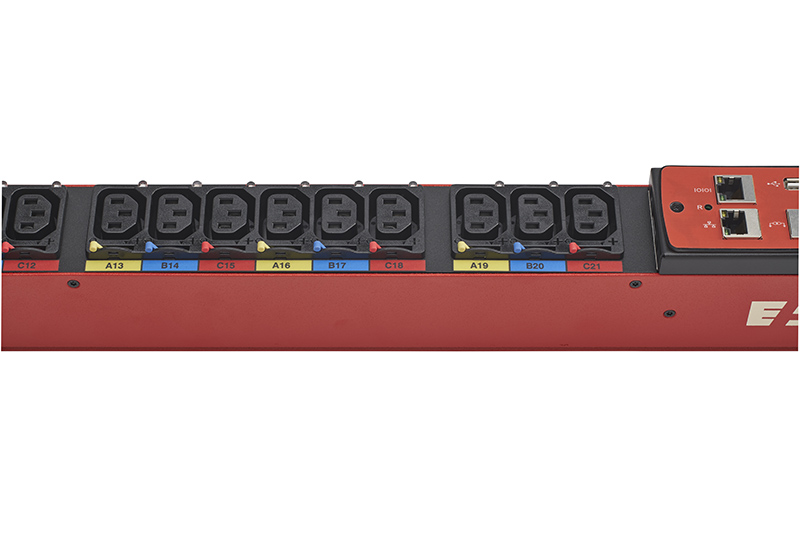

Simplify load balancing with alternate phase outlets.
With alternating phases outlet-by-outlet instead of per branch, each color-coded outlet corresponds to a circuit breaker for quicker, visual identification of potential unequal power distribution. When load balancing is this straightforward, tripped breakers become a thing of the past.

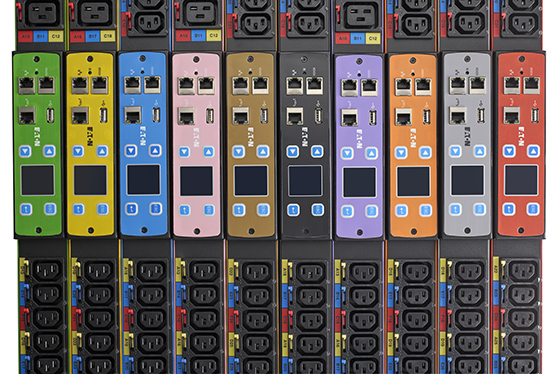

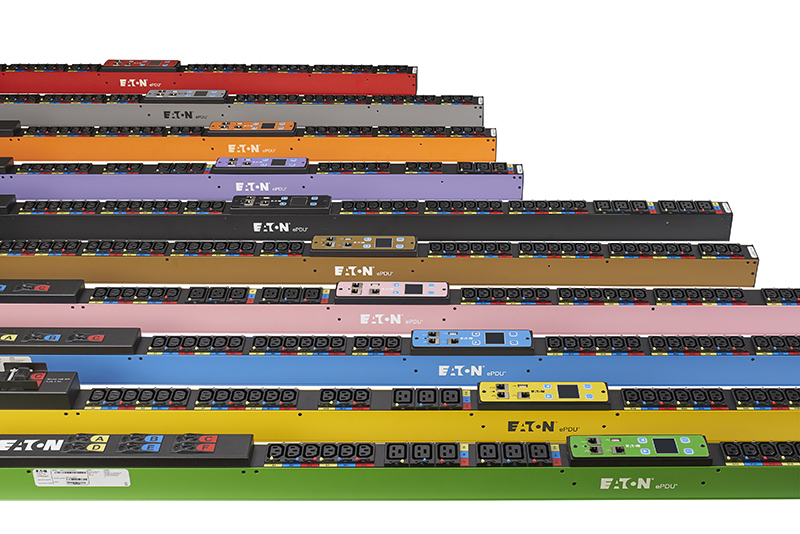

Functional chassis colors
HD rack PDUs bring life to every gray and white space environment, while providing simplicity for A/B feed identification. Choose from eleven color options for your PDU and communications module to rapidly identify A and B power feeds.
Configurable outlet modules
With more outlets than any other PDU, the HD rack PDU not only gives you the number of outlets you want, it also gives you the type of outlets you need. The HD PDU offers two configurable outlet module slots with IEC, NEMA and Eaton’s C39 options. Mix and match the 15 modules to configure up to 54 outlets, with the option for fewer outlets to fit smaller racks.
The HD’s outlets provide more than a place to plug in a piece of equipment. Each outlet comes complete with an IEC outlet grip and outlet-by-outlet switching and metering options. Without needing an onsite visit you can feel confident that all of your equipment is protected from accidental disconnections and no unauthorized equipment has been plugged in.

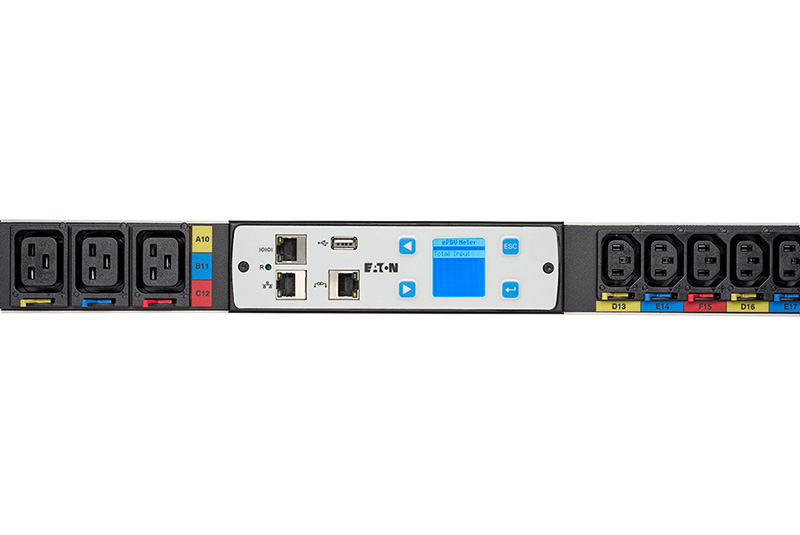

Hot-swappable communications module
The advanced LCD pixel display on Eaton’s rack PDUs allows for easy onsite issue resolution and monitoring. Featuring hot-swappable technology, the communications module can be replaced without powering down your rack. Increase uptime by eliminating forced downtime and enhance the serviceability of your rack.
Metered outlet PDU
Monitor and measure critical power quality factors, such as voltage, current and power consumption. This rack mounted PDU helps conserve energy with Level 3 power usage effectiveness, ideal for optimizing data center performance.
Eaton’s Managed PDUs offer the same power quality measurement and monitoring capabilities as the Metered Outlet PDU with additional per-outlet switching control built in.

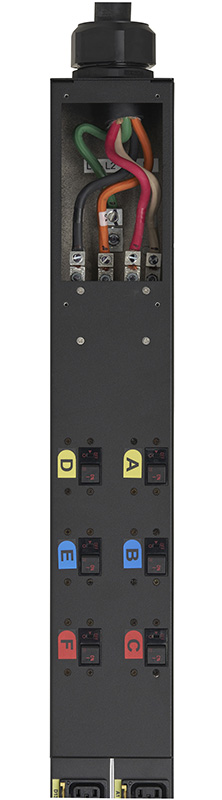

Circuit protection for all voltages
Protecting your equipment from electrical faults is serious business. To make sure you get exactly the protection you need, the HD rack PDU offers configurable circuit protection. With options for both circuit breakers and fused switches, you can select the best circuit protection for your electrical system.
With HD you’re no longer trading adequate protection for air flow issues, either. We have done away with large protruding breaker boxes in favor of low-profile designs that enable full rack unit serviceability and bolster airflow management.
|Eaton High Density Rack PDU Specifications|
|General operating and unit characteristics|
|Electrical ratings||From 4.99 to 22 kW (selection dependent)|
|Temperature||0 to 60°C (+32 to 140°F)|
|Relative humidity||5% to 95% without condensation|
|Altitude||Up to 10,000 ft. (3,000m) above Mean Sea Level Derated for higher altitude applications|
|Technology type||Metered outlet PDU and Managed PDU|
10 additional color options available
|Input voltage options||Single-phase 208V and 230V;
Three-phase Wye 120/208V, Delta 208V, and Wye 230/400V (or 240/415V) input options available
|Input plug||28+ plug options available (selection dependent)|
|Input cord length||6- and 10-ft cord lengths standard, 3- and 15-ft longer lead time (selection dependent)|
|Input frequency||50/60 ± 3Hz|
|Input voltage tolerance||+6% / -10%|
|Branch circuit protection||Breaker and fuse options available (selection dependent)|
|Outlet types||IEC 60320 C13, IEC 60320 C19, EATON C39 (C13/C19 COMPATIBLE), NEMA 5-20R|
|Output voltage||100-127V or 200-240V|
|Outlet options||10 standard module options available, less for some input types (see details)|
|Overall unit (HxWxD)||Height: 1250-2445 mm / 49-96 in. (selection dependent)
Width: 52 mm / 2 in.
Depth: 57 mm / 2 in. (excluding outlet protrusions)
|Breaker box depth||See individual unit drawing|
|Communication module depth||71.3 mm / 2.8 in. (easily removable in case of interference)|
|Safety standard and compliance|
|UL 62368-1, EN/IEC 62368-1, ROHS|
Download the Eaton High Density Rack PDU Datasheet (PDF).
