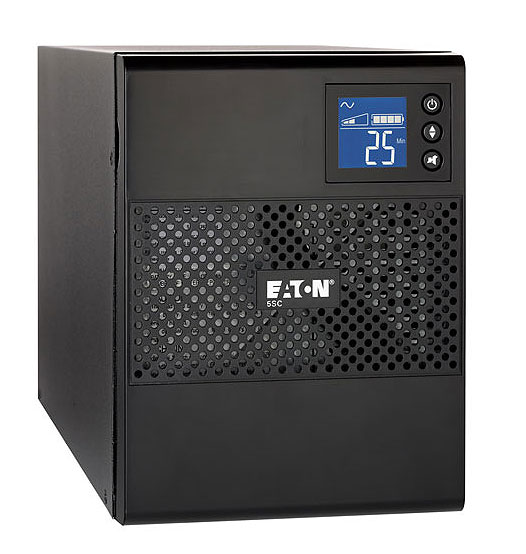

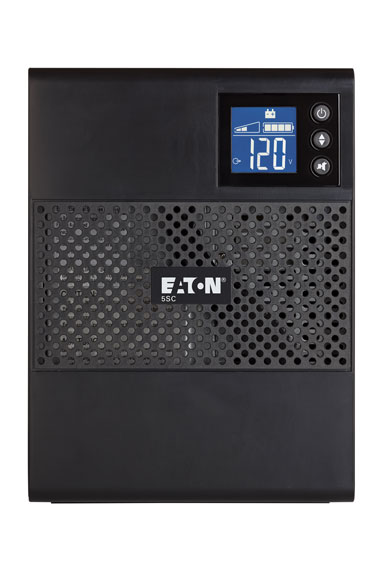

Eaton 5SC UPS
Affordable and reliable protection for small business servers, storage and network equipment

Eaton 5SC UPS

Eaton Products
5SC UPS Models
5SC500 Tower
UPS 350 watts / 500 VA - 120V - 5-15P Input; (4) 5-15R Output
#5SC500
List Price: $248.00
Our Price: $213.90
5SC750 Tower

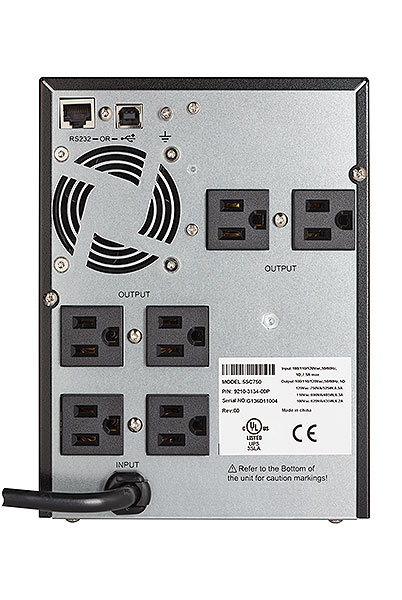

UPS 525 watts / 750 VA - 120V - 5-15P Input; (6) 5-15R Output
#5SC750
List Price: $360.00
Our Price: $309.35
5SC1000 Tower

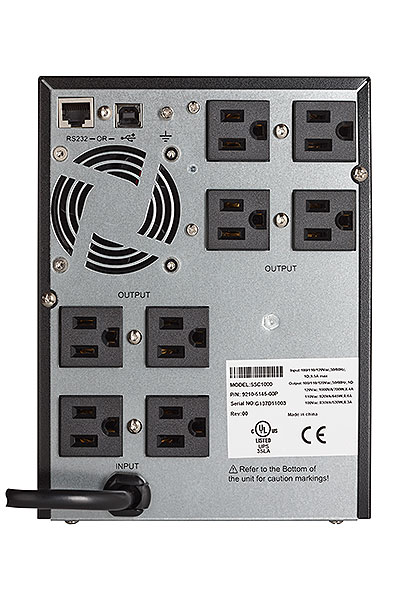

UPS 700 watts / 1000 VA - 120V - 5-15P Input; (8) 5-15R Output
#5SC1000
List Price: $411.00
Our Price: $353.05
5SC1500 Tower
UPS 1080 watts / 1500 VA - 120V - 5-15P Input; (8) 5-15R Output
#5SC1500
List Price: $530.00
Our Price: $455.40

Overview:

Eaton® 5SC features and benefits:

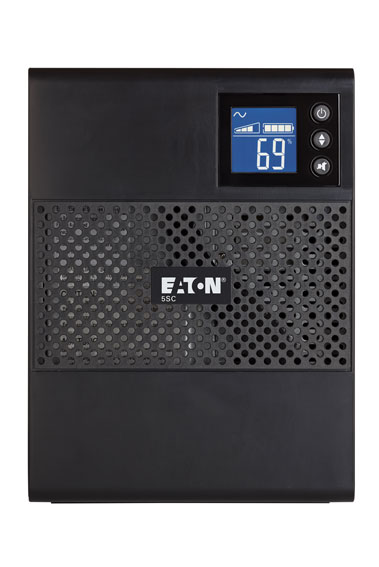

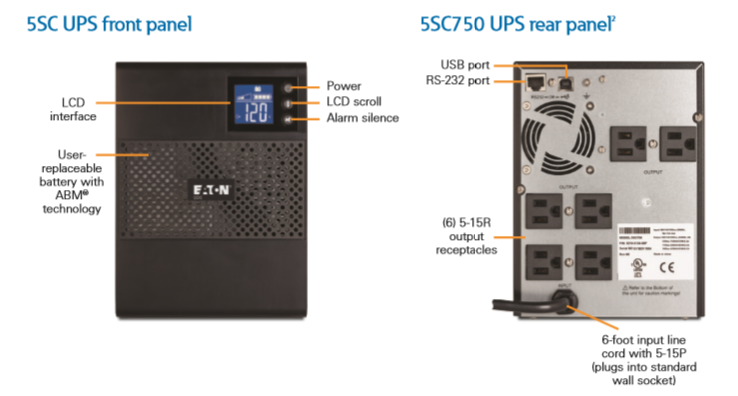

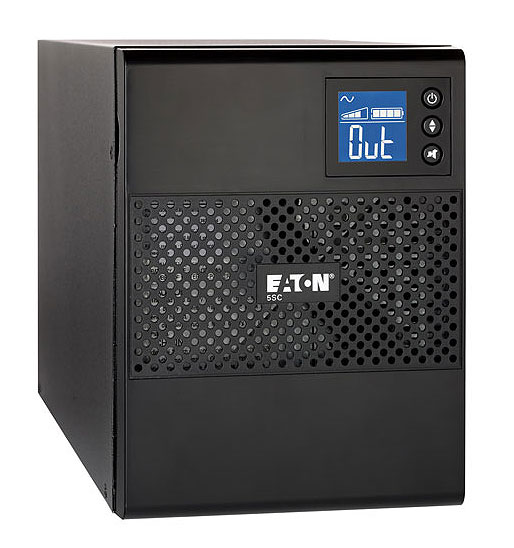

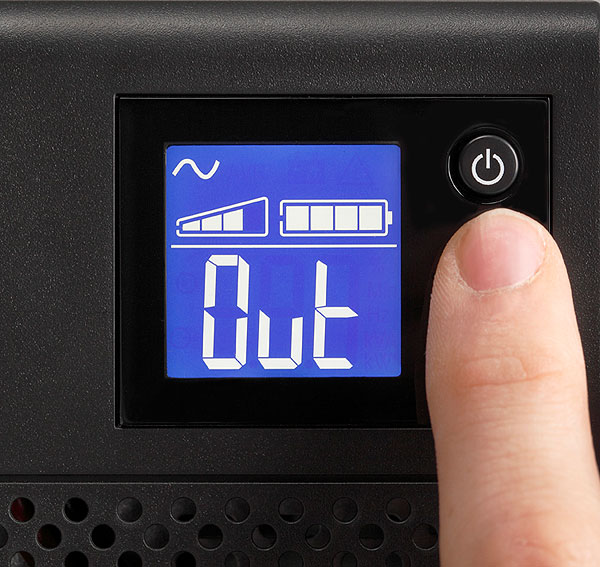

LCD display: The LCD interface provides clear status of UPS key parameters such as input and output voltage, load and battery level, and estimated runtime. Configuration capabilities are also offered for output voltage, audible alarm and power input sensitivity.

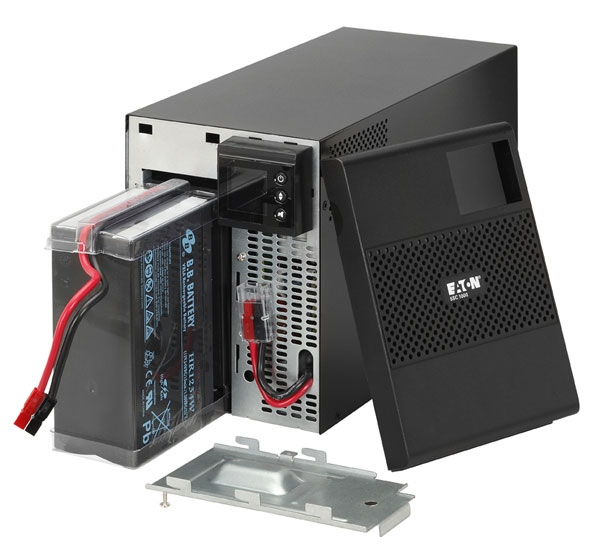

Battery life: Eaton’s exclusive ABM® technology increases battery service life by 50 percent with easy front panel battery replacement to extend UPS service life.

Manageability:

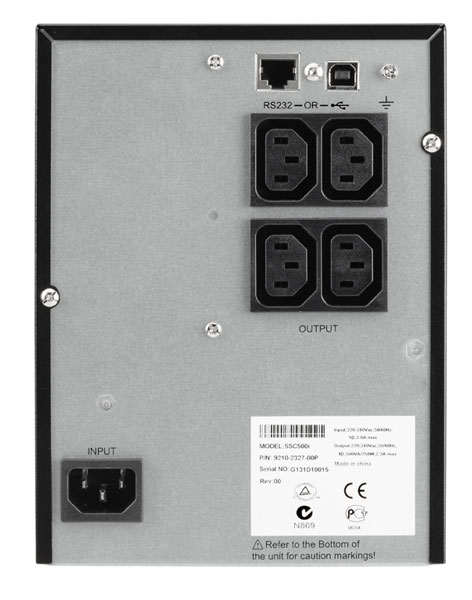

  • USB, serial and relay connectivity: USB port is HID-compliant for automatic integration into Windows, Mac OS and Linux.
  • Eaton Intelligent Power Manager (IPM): IPM software provides network power management. 5SC is managed over the network through a proxy server having IPP installed.

Reliable power protection:

  • Pure sinewave output: When operating in battery mode, the 5SC provides a high-quality output signal for any sensitive equipment connected.
  • Buck and boost operation: The 5SC corrects a wide range of input voltage variations through continuous regulation without the use of batteries, and ensures consistent input voltage to the connected equipment.

Flexible integration:

  • Convenient form factor: The 5SC fits easily into small spaces such as kiosks, cash machines and ticket machines while delivering flexibility with up to eight outlets.
  • Adjustable input waveform sensitivity: The 5SC is adaptable to specific environments, like genset.

Intelligent Power Software Suite:

By integrating Intelligent Power Manager and Intelligent Power Protector software with the 5SC, you can:

  • Get up-to-the-minute information on the status of UPS power locally on your PC or remotely through your PC/server as a proxy
  • Execute graceful, automatic shutdown of network devices during a prolonged power disruption, preventing data loss and saving work-in-progress
  • Manage and optimize power performance in your virtual environment and manage your 5SC on the same screen

5 series UPS Overview:

5 Series Platform Capabilities
Model 5PX Rackmount 5P Rackmount 5P Tower 5SC Tower 5S Tower
Power range 1000-3000 VA 550-3000 VA 550-3000 VA 500-1500 VA 550-1500 VA
Extended battery module
Outlet metering
Network card slot
Virtualization-ready bundles with network card
Outlet control
Sinewave output on battery
Graphical LCD
Icon-based LCD
ABM® technology (50% longer battery service life)
Virtualization-ready software
UPS companion software
ENERGY STAR qualified
3-year warranty (including batteries)

Eaton 5S

Competes against Back-UPS Pro
Why the 5S?

  • Cost-effective solution for desktops and POS equipment
  • Cut energy costs up to 30% with EcoControl technology
  • Seamless integration with WindowsT, MacintoshT and LinuxT

Eaton 5SC

Competes against Back-UPS Pro
Why the 5SC?

  • Ideal for protecting small business servers, network-attached storage (NAS), network equipment, ATMs, ticket machines and kiosks
  • Small footprint for easy integration within small spaces
  • USB port for automatic HID identification on Windows®, Mac® and Linux®
  • Best price to performance ratio in its class
  • Pure sinewave output for any sensitive equipment attached

Eaton 5P

Competes against Smart-UPS SMTM
Why the 5P?

  • Seamless integration with the leading virtualization platforms
  • Flexibility with multiple form factors, ideal for high density environments
  • Premium protection for servers, network equipment and storage
  • Standard communication slot for optional network card

Eaton 5PX

Competes against Smart-UPS SMX
Why the 5PX?

  • Extend battery runtimes with extended battery modules (EBMs)
  • Advanced integration with virtualization platforms from VMwareT, CitrixT, Red HatT and MicrosoftT
  • Full array of communications capabilities with bundled network card (virtualization-ready “N” bundles)
  • Optimum protection for NetAppT and CiscoT ExpressPodT converged infrastructure platform

Specifications:

5SC specifications

5SC Tower 120V, 50/60 Hz models
  Rating (VA/watts) Input connection Output receptacles Dimensions (H x W x D), in Net weight, l

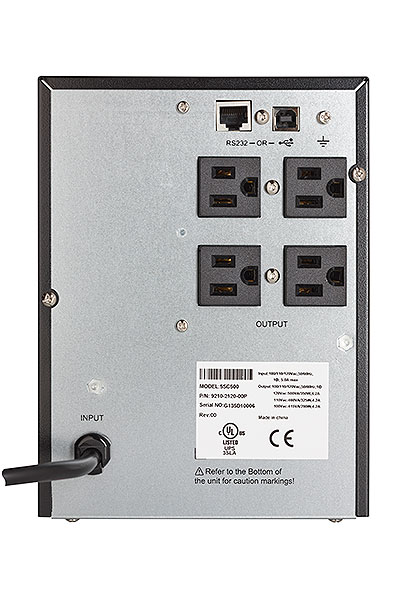

5SC500
 500/350 5-15P (6 ft) (4) 5-15R 8.2 x 5.9 x 9.4 15.2
5SC750
 750 / 525 5-15P (6 ft) (6) 5-15R 8.2 x 5.9 x 13. 23.1
5SC1000
 1000/700 5-15P (6 ft) (8) 5-15R 8.2 x 5.9 x 13.4 25.6

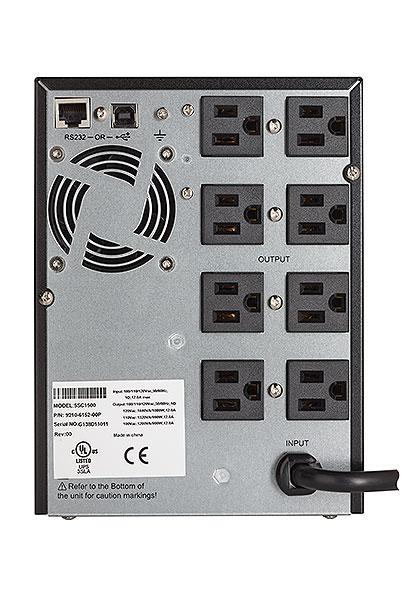

5SC1500
 1440/1080 5-15P (6 ft) (8) 5-15R 8.2 x 5.9 x 16.1 34.0

Documentation:

Download the Eaton 5SC UPS Brochure (PDF).

Download the Eaton 5 Series UPS Overview (PDF).
