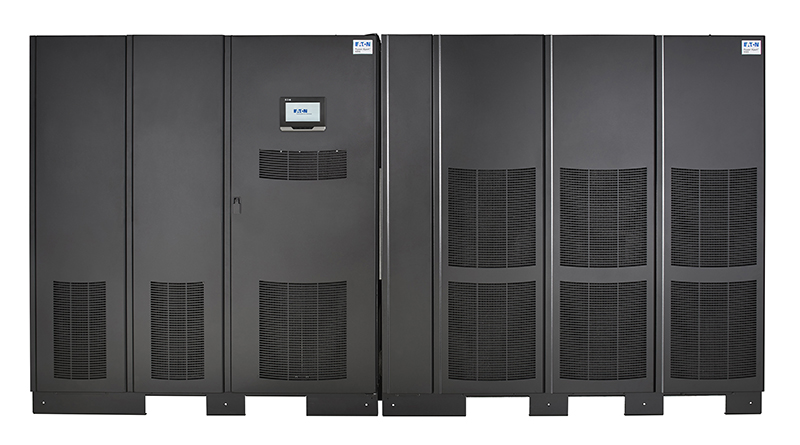

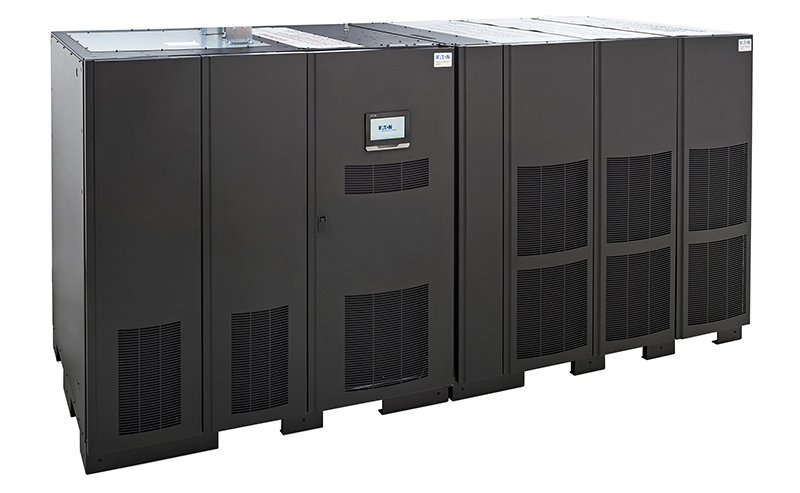

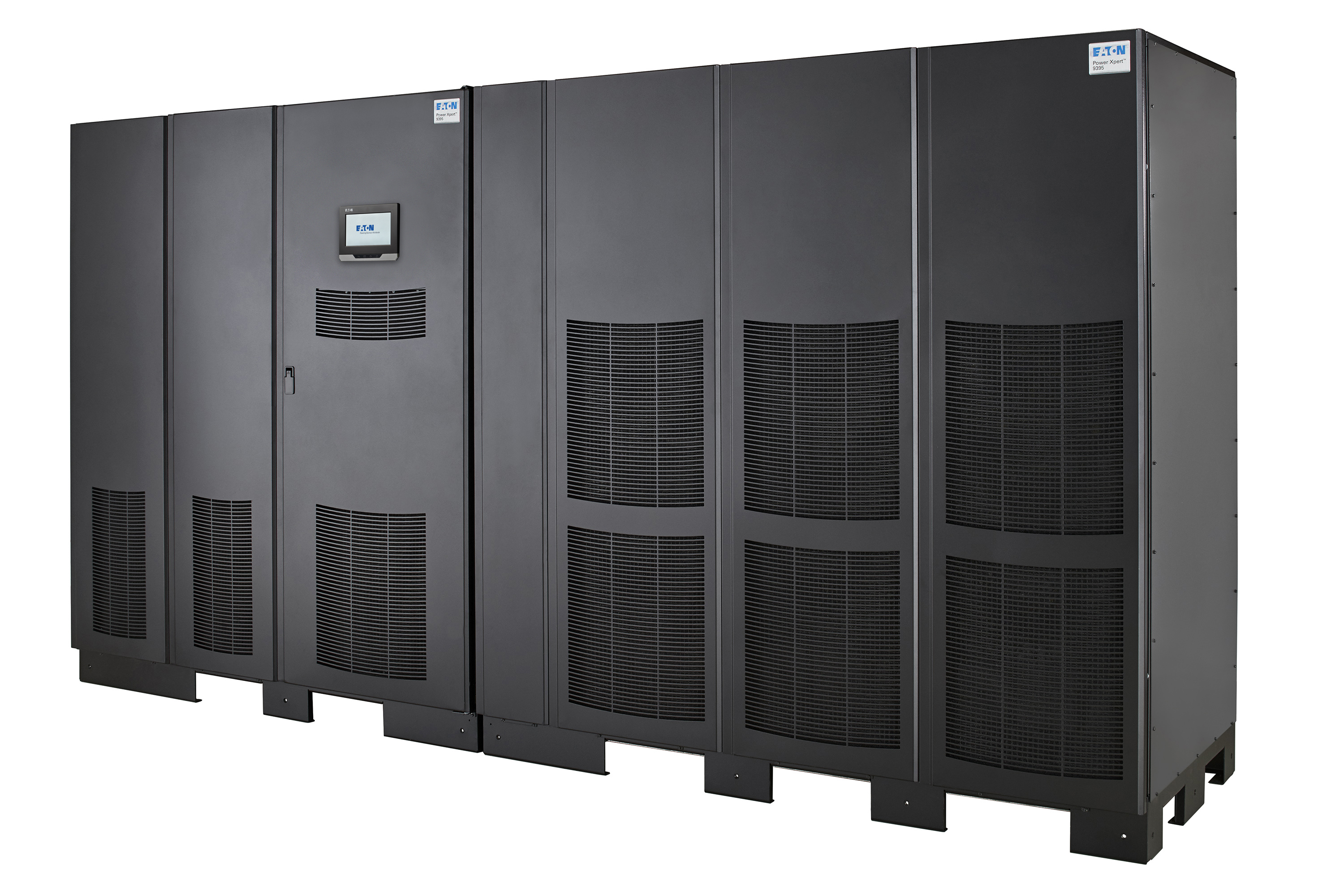

Eaton Power Xpert 9395P High Performance UPS
250 - 1200 kVA double conversion UPS
More pricing below, click here!
Overview:
Advanced power protection for:
- Large data centres, infrastructure projects, industrial complexes and other buildings
- Process control equipment
- Healthcare
- Finance and banking infrastructure
- Transportation systems
- Security operations
- Telecommunications installations
Eaton's Power Xpert 9395P UPS builds on the reputation of reliability of the Eaton 9395 UPS family with up to 20 percent more power than the original Power Xpert 9395, all within the same footprint. The 9395P’s three-level converter topology operates components at less than half the stress of a conventional converter, which reduces energy losses and allows for higher power efficiency. The cost reduction is so great that replacing an older generation UPS with a Power Xpert 9395P UPS allows you to pay back the price of the UPS in 2 to 3 years.
- Power Rating: 200-1200 kVA
- Voltage: 480V, 400V or 600V
- Form Factor: Tower
Eliminate system-level failure
N+1 redundancy design provides high reliability and eliminates potential for single-point of failure.
Lowest Total Cost of Ownership (TCO):
- Reduces power and cooling
- Conserves valuable data center floor space
- Reduces cost and unexpected future growth risks
Customization and flexibility:
- Offers a flexible system interface configuration
- Human Machine Interface (HMI) design allows customization display unique to your site layout
Ease of management:
- Provides easier access to detailed status information
- Optimizes server virtualization through power management and connectivity software
- Increases uptime with 24x7 remote monitoring and reporting capabilities
Compatible with Eaton lithium-ion batteries
The weight and dimensional benefits of lithium-ion battery cabinets create the optimal solution for your white or gray space.
Eaton's EnergyAware UPS technology
In partnership with Microsoft, Eaton recently retrofitted a 9395 UPS with additional software and controls that turned this underutilized data center asset into a profit center.
Bundle up with PredictPulse
Eaton's PredictPulse Wireless is installed on all 9395 UPS family models, including the Power Xpert 9395 UPS models, at no extra charge. Service technicians install and activate this service during startup using a cellular broadband modem/router, streamlining the setup process for customers. In addition, a one-year subscription for PredictPulse 24x7 monitoring and management service is included with each purchase.
Features:
10% more power
- 96.3% double conversion efficiency, delivers 10% more power than the previous 9395 UPS.
- Complete isolation of output power from all input power anomalies, to deliver 100% conditioned, perfect sine-wave output – even during severe power disturbance.
- High efficiency even when UPS load levels are low, optimised by Variable Module Management System (VMMS).
- Energy Saver System (ESS) improves efficiency levels to 99% by suspending power modules when double conversion is not required. Switches to double conversion mode in less than 2 milliseconds in event of pre-set input limits being exceeded. Filtering against fast low-energy transients provided by ESS.
- Producing 18% less heat helps reduce the need for cooling. Designed for continuous operation at ambient temperatures up to 40°C without de-rating. Can also deliver safe power in higher temperatures without shutting down.
Ultimate resiliency
- HotSync patented load-sharing technology enables parallel operating of static converters without communication or loadshare signals. Eliminating the communication link eliminates risk of single point of failure.
- One static switch per UPS enables the full bypass capacity to be achieved from day one. Power modules can be added as loads increase.
- Wide power factor range meets rapidly changing load power factor without de-rating.
- Intelligent battery charging through Advanced Battery Management prevents unnecessary charging and significantly retards battery wear rate.
Scalability and flexibility
- Number of power modules per UPS can be specified.
- Layout can be chosen to suit installation: back-to-back, L-shaped etc. Front-accessible design minimises installation costs and saves valuable data centre space.
- Preferred bypass topology can be specified. Additional modules can be added as power load increases.

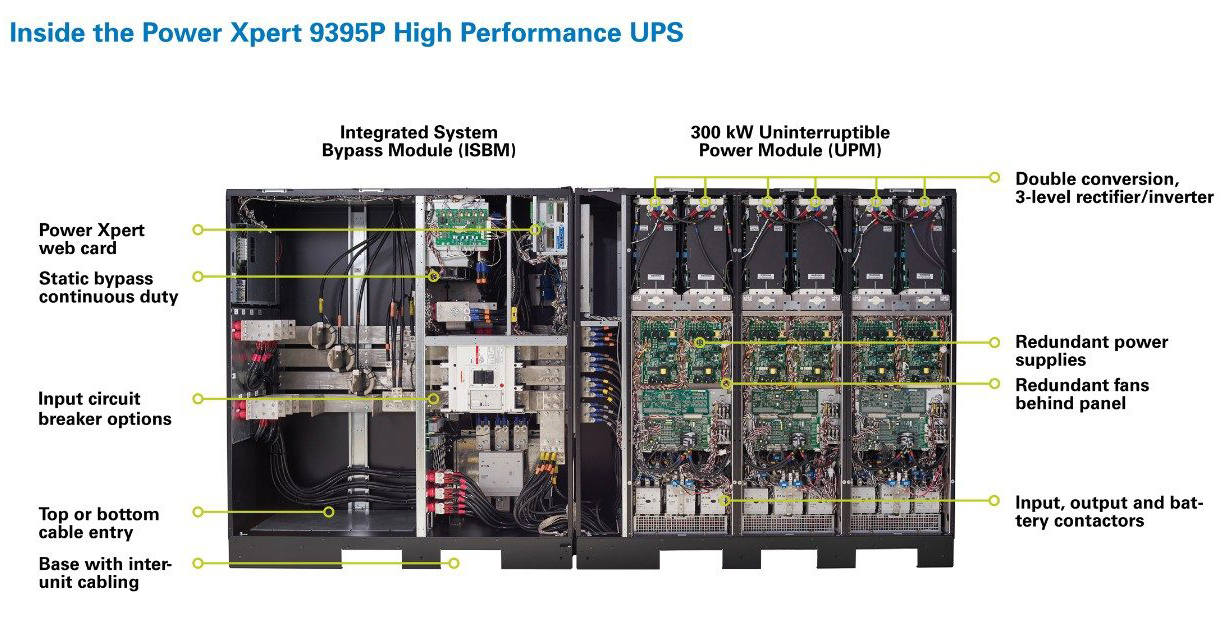

- Centralised multi-module paralleled 9395P systems are supported by the Eaton System Bypass Module (SBM). Available in ratings from 2000 A to 5000 A as standard, the SBM includes a continuous-duty centralised static switch, backfeed protection device and centralised bypass systems.

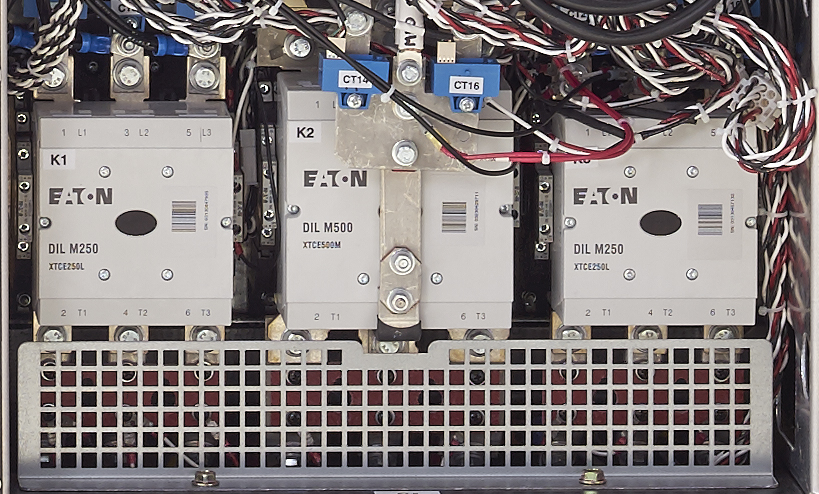

- Service disconnect in each power module allows easy maintenance while the UPS is supporting the load in double conversion mode.
- More than 90% of materials used can be recycled, decreasing end-of-life impact.
Specifications:
| Eaton Power Xpert 9395P UPS Specifications | |
|---|---|
| UPS rating (1.0 power factor) | |
| kW | 200, 250, 275, 300, 400, 500, 550, 600, 675, 750, 825, 900, 1000, 1100, 1200 |
| kVA | 200, 250, 275, 300, 400, 500, 550, 600, 675, 750, 825, 900, 1000, 1100, 1200 |
| General characteristics | |
| Efficiency | 99% with Energy Saver System Up to 97% (480V) and 96% (600V and 400V) in double-conversion |
| Parallel capability | 4 UPS units maximum for distributed bypass and
8 UPS units maximum with SBM |
| Max modules per size | Up to 2 modules 300 kW Up to 3 modules 600 kW Up to 4 modules 900/1200 kW |
| Audible noise | As low as 75dBA @ 1 meter* |
| Altitude (max) | 1000m at 40 degree C (104 degree F) 1000m at 35 degree C (95 degree F ) when UPM capacity is above 275 kW |
| N+1 redundancy capable | Yes |
| Field upgradeable | Yes |
| System bypass module | Included |

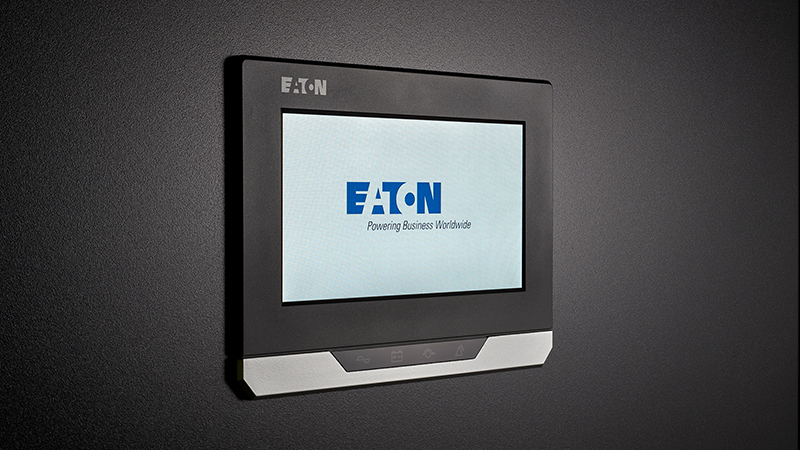

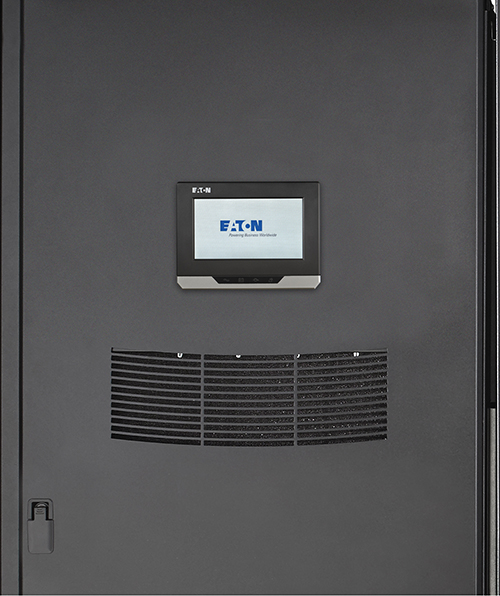

| Control panel (LCD) | Color touchscreen |
| Battery startup | Standard |
| Frequency conversion | Standard |
| Multi-language | Standard |
| Building alarm inputs | 5 (galvanic isolated) |
| Input characteristics | |
| Voltage | 480V standard; and 400V available |
| Voltage range | +10% / -15% |
| Frequency range | 45-65 Hz |
| Power factor | 0.99 (minimum) |
| Input current distortion | <3.5% (no input filter required) |
| Soft start capability | Yes |
| Internal backfeed protection | Yes |
| Output characteristics | |
| Voltage | 480V standard; and 400V available |
| Regulation | ±1% |
| Inverter | PWM with IGBT switching |
| Voltage | THD <2% (100% linear load); <5% (non-linear load) |
| Load power factor range | Up to a .9 power factor leading without derating |
| Overload | 110% for 10 minutes, 125% for 2 minutes, 150% for 15 seconds |
| Battery | |
| Battery types | VRLA, AGM, wet cell |
| Battery voltage | 480V |
| Temperature compensation | Optional |
| Charging method | ABM technology or float, selectable |
| Dimensions and weights | |
| 225 kVA, 275 kVA |
52.4”w x 32.7”d x 73.6”h (1786 lb) |
| 225 kVA redundant, 275 kVA redundant | 73.7”w x 32.7”d x 73.6”h (2875 lb) |
| 450, 500, 550 kVA | 73.7”w x 32.7”d x 73.6”h (2977 lb) |
| 450, 550 kVA redundant | 103”w x 32.7”d x 73.6”h (4153 lb) |
| Field upgrade module, 225 or 275 kVA | 30”w x 32.7”d x 73.6”h (1176 lb) |
| 650, 750, 825 kVA | 140.9"w x 32.7"d x 73.7"h (5065 lb) |
| 650, 750, 825 kVA +1 redundant | 170.2"w x 32.7"d x 73.7"h (6365 lb) |
| 1000, 1100 kVA | 170.2"w x 32.7"d x 73.7"h (6525 lb) |
| Certifications | |
| Safety | UL1778, cUL |
| EMC | IEC 62040-2, EN50091 Class A (restricted access) |
| Options |
|
| Communication cards | Four communication bays standard. The following connectivity options can be installed at any time:
|
Remote inputs/outputs: Five building alarm inputs and one summary alarm contact (5A @ 120V) standard |
|
| Software compatibility | Eaton Intelligence Platform:
|
*Assumes operation in nominal voltage, no battery charging on <60% load
**600V and 400V are 275 kW UPM max capacity
Images:
Documentation:
Download the Eaton Power Xpert 9395P UPS Datasheet (PDF).
