Eaton PDI Modular Compact RPP

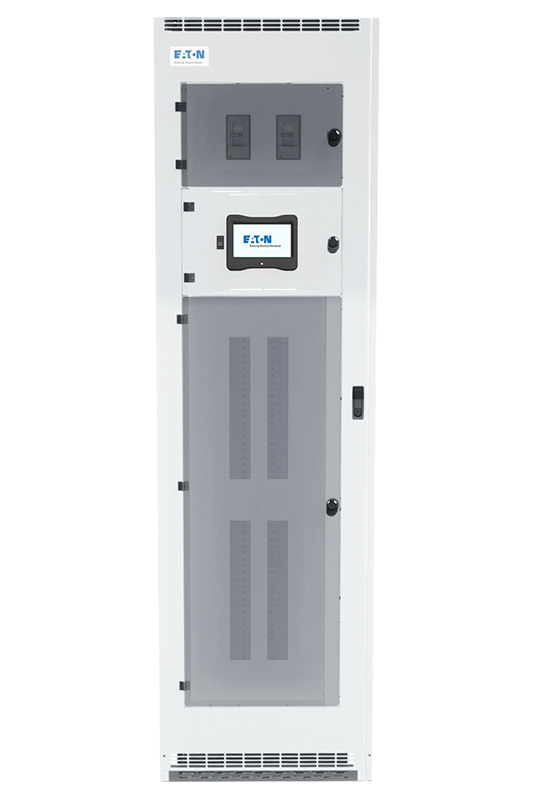

Mission-critical modular compact remote power panel

Eaton Products
PDI Modular Compact RPP Models
Eaton PDI Modular Compact RPP
Get a Quote!

More pricing below, click here!


With over 150 possible configurations, the PDI Modular Compact Remote Power Panel (RPP) is the most versatile RPP on the market today. Its 12” x 24” footprint allows wall-mount, in-tile, on-tile and multi-unit installations that can be field modified. When combined with communications and high voltage compartmentalization, BCMS monitoring, trapped key interlocking and multiple panelboards configurations, the PDI Modular Compact RPP can be adapted to the most demanding mission critical facilities.

  • 2’ x 2’ footprint cabinet
  • Enhanced RPP security
  • Designed to provide an alternate feed to loads
  • MLO (main lugs only) panelboards
  • 400A system also available
  • (2) 225A Square D mission critical circuit breakers
  • Kirk key interlocks
  • Solenoid key release
  • Sync check relay
  • Can be switched between two sources in a make-before-break configuration without interrupting the load
  • Isolated ground and equipment ground
  • Switching neutral contactor for separately derived loads
  • Neutral is rated at 400A with an option for 800A

The modular compact remote power panel mounts on-tile and in-tile with standard raised floor systems.

Core Features:

Highly configurable platform

The modular compact RPP is highly configurable with multiple wall and floor mount options including: wallmount— single or side by side. Floor mount—in-tile or on-tile as well as side by side, back to back, back to back and one side and back to back and two sides. By utilizing a common 12” x 24” footprint, the modular compact RPP can be configured and re-configured in the field.

Flexible panelboard distribution

The modular compact RPP is compatible with multiple panelboard manufacturers and styles which allows the end user complete flexibility in the deployment and type of branch circuits. Classic and finger-safe panelboards are both available.

Isolated controls and high voltage compartments

In order to simplify maintenance and increase safety of operators, the modular compact RPP features isolated controls and high voltage compartments within the main cabinet. Compartmentalized components include high voltage input breakers and panelboards as well as controls PCBs and displays associated with the WaveStar® BCMS.

Intelligent power monitoring

Eaton’s BCMS delivers pro-active management of power usage and availability ensuring maximum uptime and reliability. BCMS monitors server loads locally via a 7” touchscreen display or remotely by multiple open protocols including Modbus® RTU, Modbus TCP/IP and SNMP. Power data includes current, voltage, voltage L-L, L-N, kW, kVA, kVAR, kWh per panelboard, kWH per branch circuit and more.

Flexible mounting

The modular compact RPP was engineered with flexibility and modularity in mind. This one-size-fits-all approach enables operators to adapt the modular compact RPP to fit multiple specifications whether it be floor or wall-mount or single or multiple-unit configurations. This adaptability enables true in-the-field modification and extends the life-cycle of the product.

Adaptable service entrances

Becaue every data center is different, determining service entrance for line and load connections can vary from site to site as well as unit to unit. The modular compact RPP offers both top/bottom entry/exit for the ultimate in flexibility. The modularity of the unit allows for entry/exit panels to be changed in the field.

Trapped key interlocks

Trapped key Interlocks (Kirk Keys®) force the user to follow the correct sequence to switch power sources when using the mission critical modular compact RPP. The use of a sync-check relay as well as a make-before-break Kirk Key Interlock system ensures the safe operation and maximum uptime of server loads.

TVSS/SPD surge protection

Electrical surges and spikes can wreak havoc on sensitive mission critical servers and equipment. Protect these assets by utilizing optional fast acting TVSS (Transient Voltage Surge Suppressor) units in order to keep these servers and equipment from being damaged and protecting your data and IT investment.


Eaton PDI Modular Compact RPP Specifications
Input/output: 3-phase, 4-wire plus ground
Input voltage @ 50 Hz: 220V – 415V
@ 60 Hz: 208V, 400V, 415V, 480V
Safety standards ETL Listed to UL and CSA standards
Mounting options Wall, floor, in tile, on tile
Operating Conditions
Storage temperature -67°F to +185°F (-55°C to +85°C)
Operating temperature +32°F to 104°F (0°C to 40°C)
Audible noise ≤45dBA
Relative humidity 0% to 95% non-condensing
Operating altitude Up to 6,600 ft. (2,000m)
Option A
  • Monitor: WaveStar Infinity Monitor.
  • Communications: Native modbus RTU. Native modbus TCP. SNMP (Version 1 & Version 2). Native TCP/IP WebServer (HTML 5 Support).
  • Display: 7-inch color touchscreen.
  • Data refresh rate: 1 second.
  • Transformer monitoring.
  • Sub-feed monitoring.
  • Panelboad monitoring.
Option B
  • Monitor: WaveStar monitor.
  • WaveStar color touch monitor.
  • Communications: serial RS-485 modbus RTU; optional SNMP or TCP/IP communications.
  • BCMS: available as factory-installed option.
  • Options: Per circuit output monitoring.
  • Thermal: Dual transformer thermal sensors.
  • True RMS metering.
  • Accurate kW, power factor and THD measurement.
Distribution panelboards/sub-feed breakers
Brands Eaton, SquareD, Schneider Electric, ABB
Style Classic, IEC, finger-safe
Number of poles 36, 42, 48, 72, 84
Amerage 225A, 400A
Voltage Up to 480V


Download the Eaton PDI Modular Compact RPP Datasheet (PDF).
