Eaton 5S UPS
The energy-efficient UPS for desktops and workstations.
Eaton Products
5S Tower, 120V, 50/60 Hz
5S 550VA Tower 120V
0.02 Hour Full Load - 8 x NEMA 5-15R
0.02 Hour Full Load - 8 x NEMA 5-15R
#5S550
List Price:$138.00
Our Price: $119.60
List Price:
Our Price: $119.60
5S 700VA Tower 120V
0.03 Hour Full Load - 8 x NEMA 5-15R
0.03 Hour Full Load - 8 x NEMA 5-15R
#5S700
List Price:$152.00
Our Price: $131.10
List Price:
Our Price: $131.10
5S LCD 700VA Tower 120V
0.03 Hour Full Load - 8 x NEMA 5-15R
0.03 Hour Full Load - 8 x NEMA 5-15R
#5S700LCD
List Price:$161.00
Our Price: $140.30
List Price:
Our Price: $140.30
5S LCD 1000VA Tower 120V
1 kVA/600 W Tower 0.05 Hour Full Load - 10 x NEMA 5-15R
1 kVA/600 W Tower 0.05 Hour Full Load - 10 x NEMA 5-15R
#5S1000LCD
List Price:$193.00
Our Price: $166.75
List Price:
Our Price: $166.75
5S LCD 1500VA Tower 120V
1.50 kVA/900 WTower 0.03 Hour Full Load - 10 x NEMA 5-15R
1.50 kVA/900 WTower 0.03 Hour Full Load - 10 x NEMA 5-15R
#5S1500LCD
List Price:$258.00
Our Price: $225.40
List Price:
Our Price: $225.40
Overview:

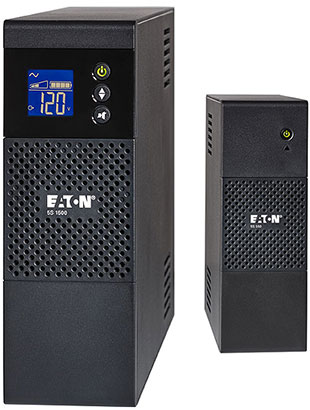

The compact 5S UPS delivers backup power for desktop PCs and workstations. The Eco-Control capability enables you save up to 30 percent in energy consumption. You can also enhance your power protection and safeguard your data when you pair it with the Eaton UPS Companion software. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.

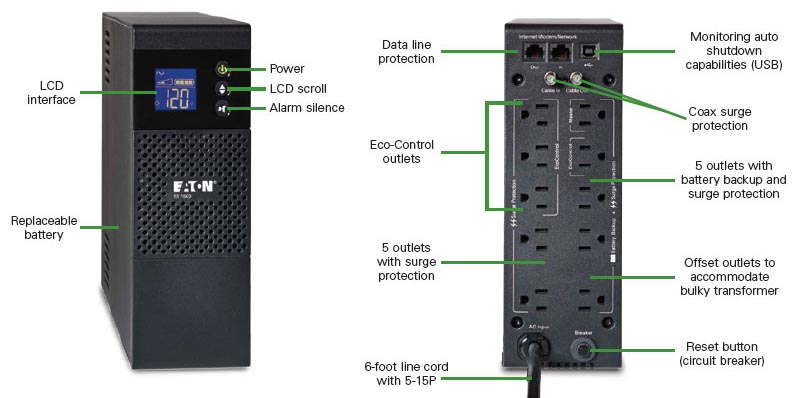

Features
- Power management:
Enhance your power protection capabilities and ensure safe system shutdown with the Eaton UPS Companion software. The 5S interface is auto-recognized when plugged into computers with Windows, Macintosh and Linux environments - LCD display:
Access critical UPS information including battery time and outage tracking in a single screen view with the user friendly LCD - Data protection:
Safeguard your work and data with the UPS Companion software by gracefully shutting down your equipment during power outages - Eco-Control:
Save up to 30 percent on energy consumption by shutting down non-essential peripherals when the computer is turned off - Convenient form factor:
Fit the 5S easily into tight spaces with its slim form factor. The versatile 5S can be used as a tower or as a desktop monitor stand - Surge protection:
Provide surge protection for network phone lines, cable TV and satellite applications - Battery health check:
Schedule daily, weekly or monthly health checks to verify battery performance and ensure that it delivers power during the next outage - Eaton UPS Companion software:
The Eaton UPS Companion software provides safe system shutdown for small offices and residential users looking for an easy way to enhance the protection capabilities of their Eaton UPS. In addition, the Eaton UPS Companion provides energy usage and cost data, resulting in a better understanding of the power requirements of the protected equipment.
- Safe system shutdown
- Energy use and cost reporting
- Easy access to UPS status and events
- Configuration of UPS parameters
- Multiple language support
- Automatic software updates
Specifications:
| Product Snapshot | |||
|---|---|---|---|
| Power Rating | 500-1500 VA | ||
| Voltage | 120V, 208/230V | ||
| Frequency | 50/60 Hz | ||
| Configuration | Tower | ||
| UPS Models | |||
| Part Number | Power Rating(VA/Watts) | Input Plug | Output Receptacles |
| 5S550 |
550 / 330 | 5-15P | (8) 5-15R |
| 5S700 |
700 / 420 | 5-15P | (8) 5-15R |
| 5S700LCD |
700 / 420 | 5-15P | (8) 5-15R |
| 5S1000LCD |
1000 / 600 | 5-15P | (10) 5-15R |
| 5S1500LCD |
1500 / 900 | 5-15P | (10) 5-15R |
Model Overview:
| Catalog Number |
Power rating (VA/watts) |
Input | Output | Dimenstions (HxWxD, in.) |
Weight (lb.) |
|---|---|---|---|---|---|
| Tower 120V, 50/60 Hz models | |||||
| 5S550 | 550/330 | 5-15P (6 ft) | (8) 5-15R | 9.8 x 3.4 x 10.2 | 12.6 |
| 5S700 | 700/420 | 5-15P (6 ft) | (8) 5-15R | 9.8 x 3.4 x 10.2 | 14.7 |
| 5S700LCD | 700/420 | 5-15P (6 ft) | (8) 5-15R | 9.8 x 3.4 x 10.2 | 15.1 |
| 5S1000LCD | 1000/600 | 5-15P (6 ft) | (8) 5-15R | 9.8 x 3.4 x 15.0 | 21.7 |
| 5S1500LCD | 1500/900 | 5-15P (6 ft) | (10) 5-15R | 9.8 x 3.4 x 15.0 | 26.1 |
Battery runtimes (in minutes)
| Model | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 240W | 270W | 300W | 330W | 360W | 390W | 420W |
| 5S550 | 121 | 56 | 31 | 20 | 14 | 10 | 8 | 6 | 5 | 4 | 1 | |||
| 5S700 | 151 | 75 | 37 | 30 | 21 | 14 | 12 | 11 | 9 | 7 | 6 | 5 | 3 | 2 |
| 5S700LCD | 86 | 67 | 36 | 27 | 20 | 15 | 11 | 9 | 7 | 6 | 5 | 4 | 2 | 2 |
| Model | 120W | 180W | 240W | 300W | 360W | 420W | 480W | 540W | 600W | 660W | 720W | 780W | 840W | 900W |
| 5S1000LCD | 43 | 26 | 18 | 14 | 10 | 9 | 6 | 4 | 3 | |||||
| 5S1500 | 79 | 43 | 30 | 22 | 17 | 13 | 10 | 9 | 8 | 6 | 4 | 5 | 3 | 2 |
| 1500VA (LCD) | 71 | 42 | 31 | 22 | 16 | 13 | 10 | 8 | 7 | 6 | 5 | 4 | 3 | 2 |
| General | 5S550, 5S700 | 5S700LCD, 5S1000LCD, 5S1500LCD |
| Graphical LCD | None | Graphical display. UPS status in a single view |
| LED | UPS On LED | |
| Topology | Line interactive | |
| Configuration | Tower | |
| Color | Black | |
| Warranty | 3 years including batteries | |
| Contents (Ships with the following items) |
|
|
| Electrical input | ||
| Nominal voltage | 120V: 100/120/127V 230V(G models): 220/230/240V |
|
| Default voltage | Low Voltage: 120V High Voltage: 230V |
|
| Communitcations | ||
| Input voltage range | 120V: 93-138 Vac 230V: 175-275 Vac |
|
| Frequency | 50/60 Hz | |
| Frequency range | 60 Hz: 46–70 Hz 50 Hz: 57–70 Hz |
|
| Electrical output | ||
| On utility voltage regulation | 120V: 102-132 Vac 230V: 184-256 Vac |
|
| On battery voltage regulation | -20%, +15% of nominal | |
| Efficiency | Normal or line mode: >95% above 60% load | |
| Frequency tolerance | ±0.1Hz | |
| Over current protection | Electronic current limit | |
| Battery | ||
| Battery description | Sealed, lead-acid; maintenance free | |
| Battery management | ABM technology; 3-stage charging extends battery service life by 50% and provides advance warning for battery replacement | |
| Battery replacement | Tool-less, replaceable internal batteries (not hot-swappable) | |
| Start on battery | Cold-start enabled; first cold start is always forbidden | |
| User interface | None | LCD graphical display. UPS status in a single view. |
| LEDs | UPS On LED | |
| Communication ports | USB port as standard (HID). USB Cord Included | |
| Power management software | Eaton UPS Companion Software | |
| Environmental & standards | ||
| RoHS compliance | Yes | |
| Surge protection | IEEE ANSI C62.41 Cat B2 | |
| EMC compliance | 120V: FCC Part 15 subpart B Class B IEC 62040-2 C1/ EN 55024 / CISPR22 Class B / FCC part 15 Class B |
|
| Audible noise | < 25 dB at 1 meter | |
| Operating temperature | 0° to 35°C (32°F to 95°F) | |
| Safety Markings | CE / cTUVus / NOM | |
| Storage temperature | -25°C to 40°C (-13°F to 104°F) | |
| Relative humidity | 0 to 93% non-condensing | |
| Altitude | Up to 6,500 ft (2000m) without de-rating | |
Documentation:
Download the 5S UPS Brochure (PDF).
Download the Eaton 5S Technical Specifications (PDF).
