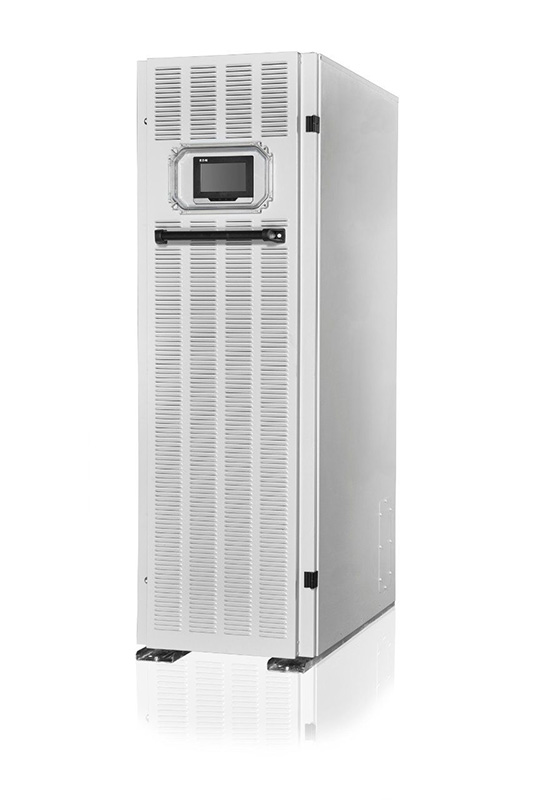

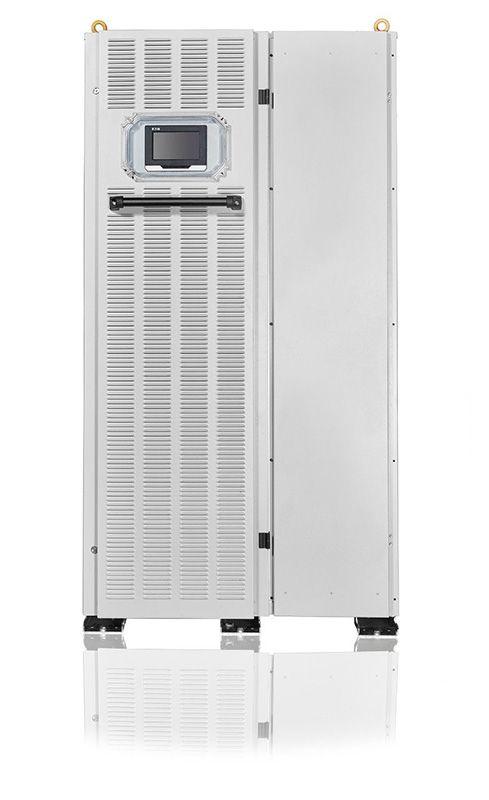

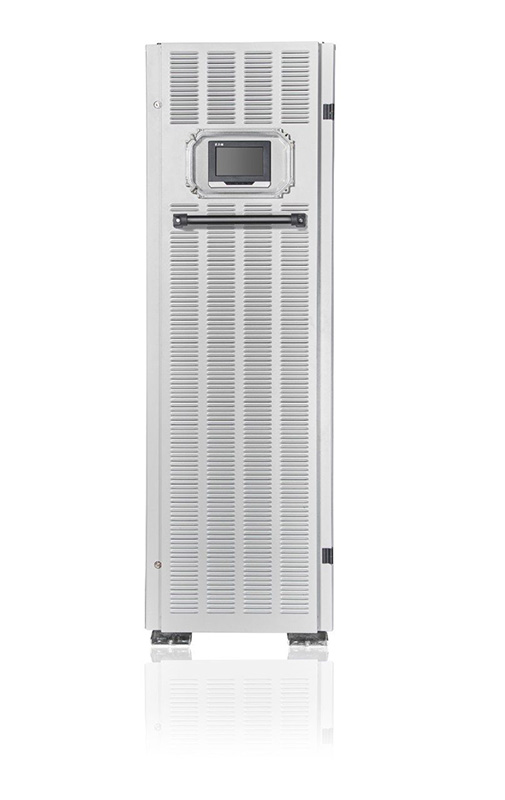

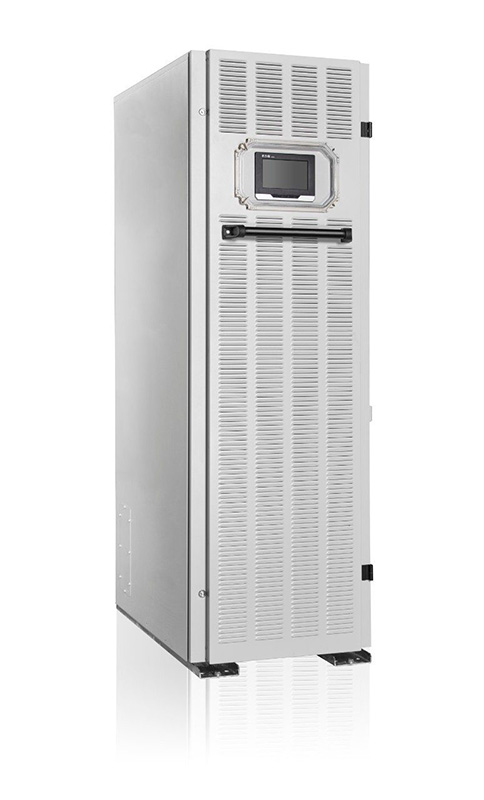

Eaton 9PHD Marine UPS
Strong and Smart Power Protection for Marine and Offshore
More pricing below, click here!
Overview:
Eaton 9PHD Marine UPS is a reliable and efficient, state of the art UPS solution that can be configured for a range of marine & offshore applications. It brings the benefits of modern, modular, IGBT based UPS technology to the shipborne environment providing the lowest Total Cost of Ownership in its power range.
- Topology: Online (IGBT)
- Power Rating: 30 - 200 kW
- Efficiency: 97%
Reliable
An unexpected loss of power in critical marine & offshore applications can result in anything from an economic setback or physical damage, or in the worst case, to the loss of lives. Reliability is the number one requirement for a marine UPS. The Eaton 9PHD Marine UPS ensures the reliable supply of uninterrupted clean power to keep your critical load up and running no matter what. Reliability equals safety.
Efficient
UPS reliability is essential for the continuation of operations, and so too is financial performance. High efficiency (up to 97% on double conversion mode) means less energy burned to heat and a reduction in energy used for cooling. This means lower costs and lower emissions. The Eaton 9PHD Marine UPS efficiency brings savings in money, weight, space and for the environment.
Versatile
Whatever the changing conditions – and however quickly they change – the Eaton 9PHD Marine UPS is designed to maintain a steady, uninterrupted, clean power supply. This market-leading resiliency is the result of the number of advanced technologies built-in to the Eaton 9PHD UPS. With a wide range of optional add-on features, the unit is built to meet the specific and demanding requirements on land and at sea.
Features:
Designed for marine and offshore environments
- Marine certificate from any marine classification society
- Marine vibration tested units
- Halogen free cables
- IP23 protection
- Conformally coated PCB boards
- Cable area designed to support marine cabling practices
- Vibration dampers and installation brackets for floor and wall
- Door handle, stopper and triangle key included
Strong design for demanding environments
- Protection against dirt, dust, water and moisture with cover options up to IP54
- 1.5mm cover plates for robust use
- Protection for touch screen display
Smart technology for maximizing reliability
- Large touch screen display for easy operation and reduced risk of human error
- Modular design allows building fault tolerant N+1 units
- Redundant monitored cooling fans in each power module
- Battery start feature
- Eaton’s unique Hot Sync wireless paralleling for building n+1 systems with several UPS units
Smart technology for minimizing operating costs
- The 9PHD UPS sets new standards with an operating efficiency level up to 97% in double conversion mode
- > 99% superior efficiency is delivered in Energy Saver System mode (ESS)
- Power factor 1 increases unit power by 10-20% compared to average UPS
Easy deployment for optimizing installation costs
- Front access for installation and service
- Cabinet supports use of halogen free cables, double cables and large cables for installation
- Lifting lugs included for easier unit handling during installation
- Suitable for 3-wire and 4-wire networks and voltage range 380V-480V without transformers
- Small footprint due compact power electronics and internal transformer options
Specifications:

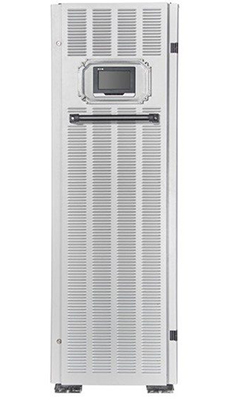

| Eaton 9PHD Marine UPS 100 kW | |
|---|---|
| Phases in/out | 3:3 |
| Power range | 30-100 kW |
| Number of power modules | 1 - 2 |
| Available voltage levels (line to line) | 208 V, 230 V, 380 V, 400 V, 415 V, 440 V, 480 V, 690 V |
| IP class | IP23 / IP33 / IP54 |

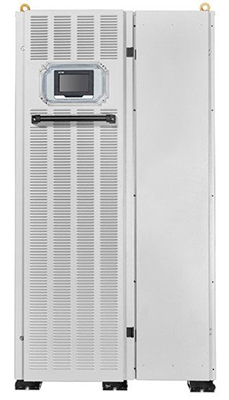

| Eaton 9PHD Marine UPS 200 kW | |
|---|---|
| Phases in/out | 3:3 |
| Power range | 80-200 kW |
| Number of power modules | 2 - 4 |
| Available voltage levels (line to line) | 208 V*, 230 V*, 380 V, 400 V, 415 V, 440 V, 480 V, 690 V* |
| IP class | IP23 / IP33 / IP54 |
*up to 100kW
| Eaton 9PHD Marine UPS 30 - 200 kW Specifications | |
|---|---|
| General | |
| Output power rating (PF 1.0) | 30, 40, 50, 60, 80, 100, 120, 150, 160, 200 kW |
| External paralleling | Up to 8 units with HotSync technology |
| Efficiency in double-conversion mode | Up to 97% |
| Efficiency in Energy Saver System (ESS) mode | Up to 99% |
| UPS topology | IGBT with PWM, double conversion |
| Degree of ingress protection | IP23, IP33 or IP54 |
| Ambient temperature | 0°C to 40°C up to 1000m altitude, higher ratings as optional |
| RoHS/WEEE compliancy | Yes |
| Input Characteristics | |
| Nominal voltage rating Input voltage with internal transformers |
380 V, 400 V, 415 V, 440 V or 480 V, conficurable 208 V - 690 V |
| Input frequency range | 40 - 72 Hz |
| Input wiring | 3ph+N+PE / 3ph+PE |
| Input power factor | 0.99 |
| Input THDi 100% linear load | < 4,5% |
| Soft start for generators | Yes |
| Internal back feed protection | Yes, for rectifier and bypass lines |
| Output Characteristics | |
| Output wiring | 3ph+N+PE / 3ph+PE |
| Rated output voltage Output voltage with internal transformers |
380 V, 400 V, 415 V, 440 V or 480 V, configurable 208 V - 690 V |
| Output frequency | 50 Hz / 60Hz configurable |
| Output UTHD | < 1% (100% linear load), < 5% (reference non-linear load) |
| Default overload capacity on inverter | 10 min 102 – 110% load 60 s 111 – 125% load 10 s 126 – 150% load 300 ms > 150% load |
| Max overload capability on inverter | 60 min 102 - 110% load 10 min 111 – 125% load 60s 126 – 150% load 300ms > 150% load |
| Overload capability on bypass | Continuous < 125% load, 50 ms 2000% load |
| Rated output power factor | 1.0 |
| Load power factor range | 0.8 lagging to 0.8 leading |
| Battery | |
| Battery technology | VRLA, Li-Ion, NiCd, Eaton Super Capacitors |
| Nominal battery voltage | 432 V - 480 V |
| Maximum charging current | 29.3 A, 58.6 A, 87.9 A, 117.2 A depending on model |
| Charging method | Voltage regulated current limited with Eaton ABM technology |
| Boost charge function | Yes |
| Temperature compensation | Yes |
| Battery start option | Yes |
| Communications | |
| MiniSlots | 4 communication bays for Web/SNMP, ModBus/Jbus & Industrial realy |
| Standard connectivity ports | Device USB and Host USB, RS-232 service port, relay output, 5 building alarm inputs, 1 relay output and a dedicated EPO |
| Accessories | |
| Accessories for UPS | Internal transformers; Vibration dampers with mounting brackets; Seismic kit; Internal automatic transfer switch; Single feed kit; Earth fault monitoring; 24V Emergency Power Off (EPO); Custom system and battery voltages; Custom colors; Exhaust air management options |
| Accessory cabinets | Industrial battery cabinets with long-life batteries; Matching transformer cabinet for one or two transformers; External maintenance bypass switch. |
| Compliance with Standards | |
| Safety (CB certified) | IEC 62040-1 |
| EMC | IEC 62040-2 |
| Performance | IEC 62040-3 |
| RoHS | EU directive 2011/65/EU |
| WEEE | EU directive 2012/19/EU |
| Seismic testing | NEBS GR-63-CORE, Zone 4 |
Images:
Documentation:
Download the Eaton 9PHD Marine UPS Datasheet (PDF).
