Eaton Rack Power Module (RPM)
Power distribution unit for IT equipment


Eaton Products
Rack Power Module Models
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L21-20R Outlets
#Y03113011100000
Our Price: $3,545.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L21-30R Outlets
#Y03113022100000
Our Price: $3,635.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L6-30R Outlets
#Y03113055100000
Our Price: $3,445.00

More pricing below, click here!

Overview:

The RPM delivers up to 36 kW of power to loads of various voltages, power cords and layouts. The 3U RPM can be deployed in the same rack with the UPS and IT equipment; there’s no need for a dedicated infrastructure rack. The resulting architecture has fewer cables to manage, fewer distribution points to monitor, and greater flexibility for IT personnel to make changes without an electrician.

  • Provides plug-and-play primary distribution of power from threephase input source to secondary power distribution devices
  • Serves data center loads with various voltages, power cord configurations and layouts
  • Distributes three-phase power to 12 poles, grouped into two sets of six poles, with choice of output receptacle types
  • “Power equalizer” LED display gives quick visual indication of each circuit's load, reducing possibility of overloads and breakers tripped off line
  • Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)
  • Branch circuit monitoring option allows easy load monitoring over the network

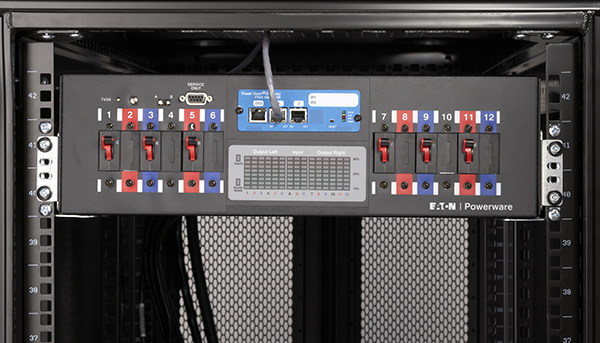

  • Installs in only 3U of space in EIA 19” rack or enclosure (or wall-mounted)
  • Enables customer installation and changes without the services of an electrician

Lower infrastructure costs

Single-point distribution means less wiring to run and manage.


Customize input and output options

Choose from four input options and 15 outlet plates, including IEC and NEMA, straight and locking receptacles.


Quickly check circuit load

"Power Equalizer" LED on the front gives a quick visual indication of each circuit's power load.


Specifications:

Eaton Rack Power Module Specifications
General specifications
Depth 20 inches (corded)
26 inches (hardwired)
Height 5.2 inches
Width 17.4 inches
Weight 36 - 50 lbs (depending on cords)
Warranty 18 months
Mounting Direction Horizontal
Color Black
Form Factor Rackmount or wallmount, 3U
Configuration options
Input Voltage 208V (three phase)
400V (single phase)
Input Connections Hardwired
BladeUPS Unit 208V
IEC309-60 5 wire
NEMA I21-30P
BladeUPS Unit 400V
Input Cord Length Hardwire
6 ft
10 ft
15 ft
20 ft
Metering Power Equalizer
Engery Management System (no card)
Energy Management system (with card)
Output Receptacle Plates (Two Plates Per Unti) L21-20R (2 per plate)
L21-30R (2 per plate)
L6-15R (3 per plate)
L6-20R (3 per plate)
L6-30R (3 per plate)
5-15R (6 per plate)
5-20R (6 per plate)

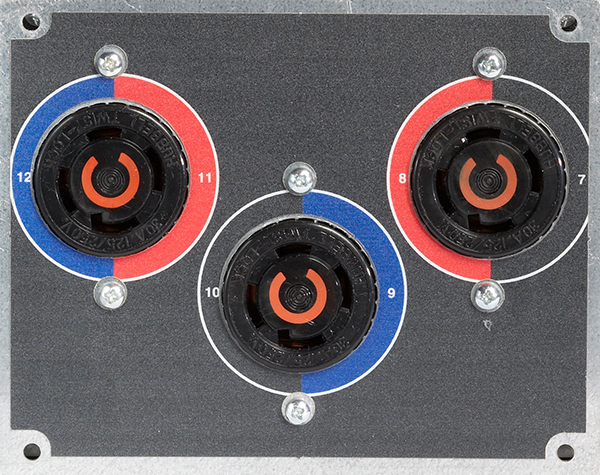

L14-20R (3 per plate)
L14-30R (3 per plate)
IEC320-C13 (208V) (12 per plate)
IEC320-C19 (208V) (6 per plate)
IEC320-C13 (230V) International (12 per plate)
IEC320-C19 (230V) International (6 per plate)
L15-20R (2 per plate) L15-30R (2 per plate)

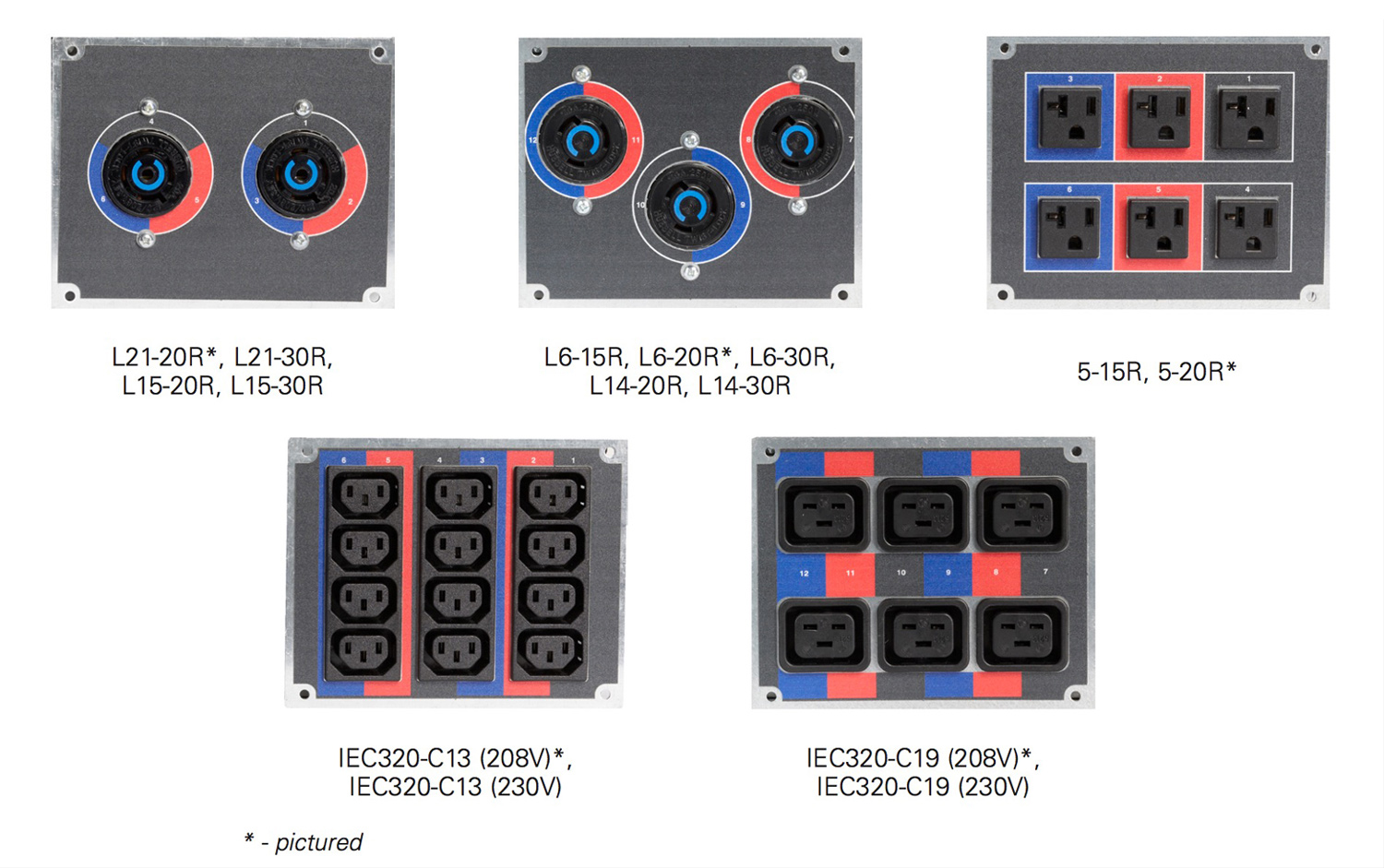

Output Receptacle Plates:

Images:

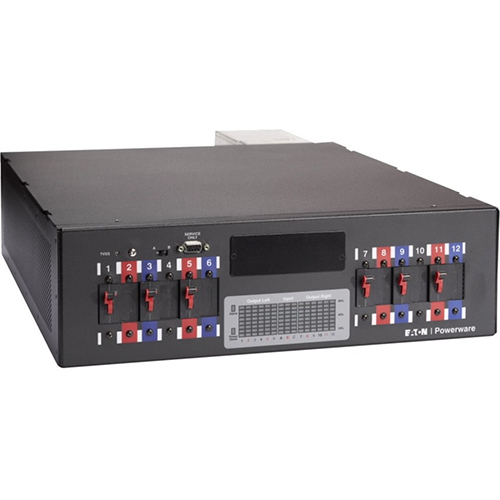

Angle View

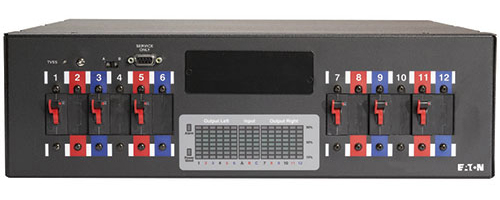

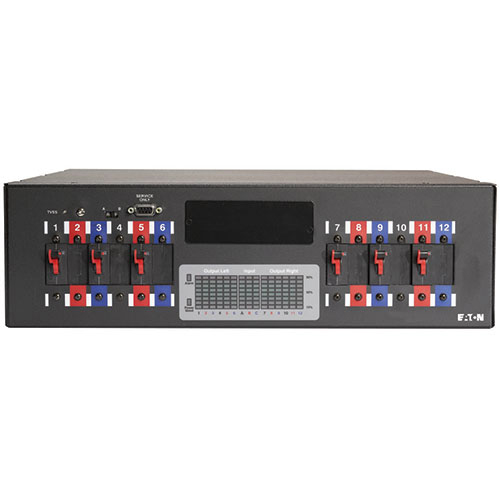

Front View

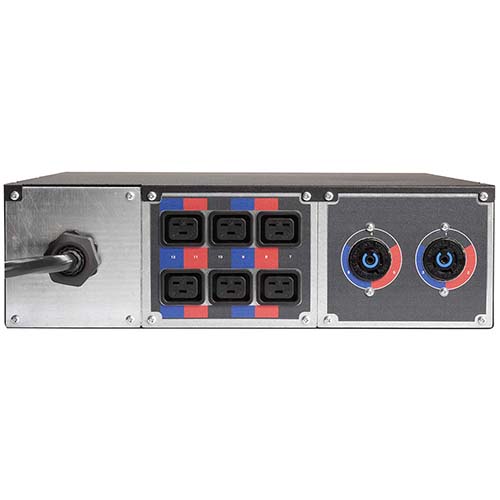

Rear View

Documentation:

Download the Eaton Rack Power Module (RPM) Datasheet (PDF).

Pricing Notes:

Eaton Products
Rack Power Module Models
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L21-20R Outlets
#Y03113011100000
Our Price: $3,545.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L21-30R Outlets
#Y03113022100000
Our Price: $3,635.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L6-30R Outlets
#Y03113055100000
Our Price: $3,445.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (3) L6-20R and (6) 5-20R Outlets
#Y03113047100000
Our Price: $3,445.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (3) L21-20R and (6) 5-20R Outlets
#Y03113017100000
Our Price: $2,716.00
Eaton BladeUPS Rack Power Module, 208V, 15 ft Input Cord, (4) L15-30R Outlets
#Y031130FF100000
Our Price: $3,635.00
