Eaton 5PX G2 UPS
Secure, connected power protection with extended runtime designed for distributed IT

Eaton 5PX G2 UPS

Eaton Products
5PX G2 Models - 2U Rackmount
Eaton 5PX G2 UPS, 2U, 1000 VA, 1000 W, 5-15P input, Outputs: (8) 5-15R, 120V
#5PX1000RTG2
Our Price: $858.00
Eaton 5PX G2 UPS, 2U, 1000 VA, 1000 W, 5-15P input, Outputs: (8) 5-15R, 120V, Network card
#5PX1000RTNG2
Our Price: $1,281.00
Eaton 5PX G2 UPS, 2U, 1500 VA, 1500 W, C14 input, Outputs: (8) C13, 208V
#5PX1500HRTG2
Our Price: $1,329.00

More pricing below, click here!

Overview:

Introducing the latest addition to Eaton's 5 series UPS line, the Eaton 5PX G2 rackmount and tower UPS provides the maximum power possible at each power rating. The 5PX G2 UPS has power ratings ranging from 1 to 3 kVA, with low and high voltage options and offers up to four optional external battery modules for extra runtime. With select 2 and 3 kVA models, the 5PX G2 UPS offers a reduced depth that conserves space for high density wallmount rack installations.

Applications include: Enterprise and distributed IT, telecom, retail, banks, IDF, small business, long runtime needs.

Connected equipment may include: Servers (including VoIP), storage, networking equipment, switches (including PoE) and other IT equipment.

Features include:

  • Deployment simplified: The 5PX G2 UPS offers mass UPS firmware upgrades without dropping the load and provides an easy startup configuration wizard simplifying your UPS setup process.
  • Runtime: Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the original 5PX UPS
  • Stay connected, securely: Reduce risk of intrusion with the optional Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
  • Enhanced surge protection: The 5PX G2 provides enhanced surge protection keeping your branch offices and IT closets equipment safe
  • Quieter operation: The 5PX G2 utilizes less fans and the internal fans have the capability to completely turn off at less than 30% load when the unit is fully charged for improved energy efficiency and reduced noise pollution

Made for distributed IT

  • Ideal for servers, switches, storage and other distributed IT loads that keep your business running
  • Flexible UPS can be rackmounted in a traditional 2-post or 4-post rack or used in a tower form
  • Quieter operation than legacy models with less fans required in each UPS

Deployments simplified

  • Mass UPS firmware upgrades without dropping the load
  • Easy startup configuration wizard
  • DHCP enabled by default for network-bundle models

Stay connected, securely

  • Reduce risk of intrusion with the Gigabit Network Card (NETWORK-M2), which is the first UPS connectivity device to meet both UL and IEC cybersecurity standards
  • Remote monitoring and management of your deployment is made easy with Eaton VPM or IPM software, which includes graceful shutdown of servers and virtualized environments during extended power outages

Resolve issues quickly

  • Troubleshoot UPS status and alarms remotely when used with the Gigabit Network Card
  • LED status bar provides quick and clear visual diagnostics in all environments
  • Higher contrast interface for easier visibility, plus detailed alarms and notifications to help diagnose the issue the first time
  • 24/7 technical support available, along with a standard three-year warranty on the UPS and batteries

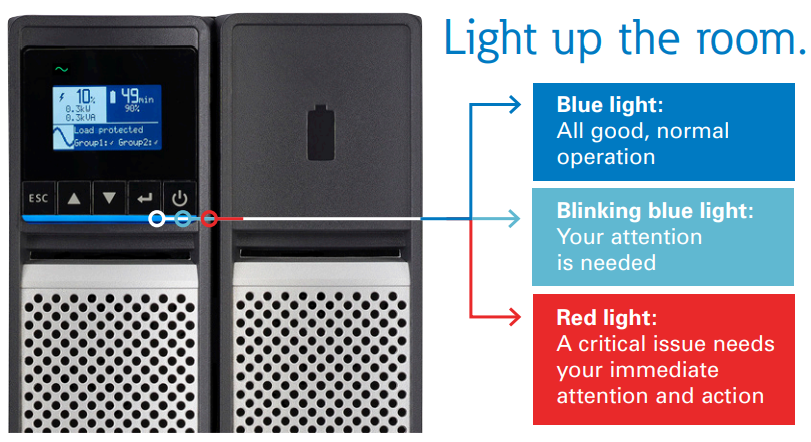

LED status bar allows for quick and easy status updates at-a-glance

A model to fit your needs.

  • Support more equipment, provides the maximum power (watts) possible at each power rating, otherwise known as unity power factor
  • Reduced depth to conserve space, the 2 to 3 kVA short-depth models allow for high density wallmount rack options
  • UPS ship-in-rack option for integration into packaged deployments simplifying set up and getting you online quicker (available with the 4-post rail kit)
  • Increased standard runtime by at least 25% on 1.5 and 2 kVA models compared to the legacy 5PX UPS
  • Enhanced surge protection to keep your equipment safe in your branch offices and IT closets
  • Reduced number of fans and the capability to completely turn off fans when the unit is fully charged to reduce noise pollution and promote energy efficiency

Brightlayer Data Centers Suite:

A portfolio of software applications designed to aggregate data, monitor infrastructure, drive operational performance, predict maintenance and maintain safety and security. Applications within the suite that pair well with the 5PX G2 UPS include:

IPM – Intelligent Power Manager

IPM is an easy-to-use disaster avoidance platform with sophisticated capabilities that include triggering alerts and automating resolutions to keep applications running. IPM enables you to:

  • Leverage Eaton’s integrations with industry leaders to keep critical applications running and automate resolutions for your entire network risking potential downtime.
  • Migrate workloads to increase system uptime and minimize generator load by suspending non-critical virtual machines.
  • Power cap servers to keep critical loads running longer by limiting server power consumption.

VPM – Visual Power Manager

With Visual Power Manager (VPM), you can remotely monitor the power of hundreds of PDU and UPS devices through a user-friendly, visual interface that simplifies data for quick action. VPM enables you to:

  • Gain vendor agnostic insight. Monitor a mixed environment through VPM’s unique protocol-based data collection.
  • Know what’s coming. Analyze power devices visually and get notified ahead of replacement through custom reports.
  • Get real-time, rack-level statistics. Quickly remediate through up-to-theminute analytics, notifications and alarms for events exceeding what any branch can support.

PredictPulse Insight

PredictPulse Insight is the industry’s first cloud-based 24x7 remote monitoring and predictive analytics subscription service to forecast data center power component failure and proactively replace components before failure. PredictPulse enables you to:

  • Save time. Focus on other critical IT tasks while this predictive analytics service and Eaton’s remote monitoring team oversees power remotely.
  • Save money. Eliminate surprise maintenance expenses — this subscriptionbased service includes parts, labor, on-going preventive maintenance and expedited repairs.
  • Reduce risk. Utilize Eaton’s propriety algorithms, based on data from thousands of installed devices to predict UPS component failure and proactively replace parts before issues arise.

Specifications:

120V, 50/60Hz rack/tower models
Catalog number Rating (VA/watts) Input connection Output receptacles Dimensions (H x W x D), in Net weight, lb Internal runtime (min)
Full / half load
Plus 1 EBM
Full/ half load
5PX1000RTG2 1000/1000 5-15P, 10 ft. (8) 5-15R 3.4 (2U) x 17.2 x 17.6 44.5 6/17 35/82
5PX1500RTG2 1440/1440 5-15P, 10 ft. (8) 5-15R 3.4 (2U) x 17.2 x 17.6 50.7 5/15 26/60
5PX2000RTG2 1950/1950 5-20P, 10 ft. (1) L5-20R, (6) 5-20R 3.4 (2U) x 17.4 x 23.7 65.3 4/12 27/62

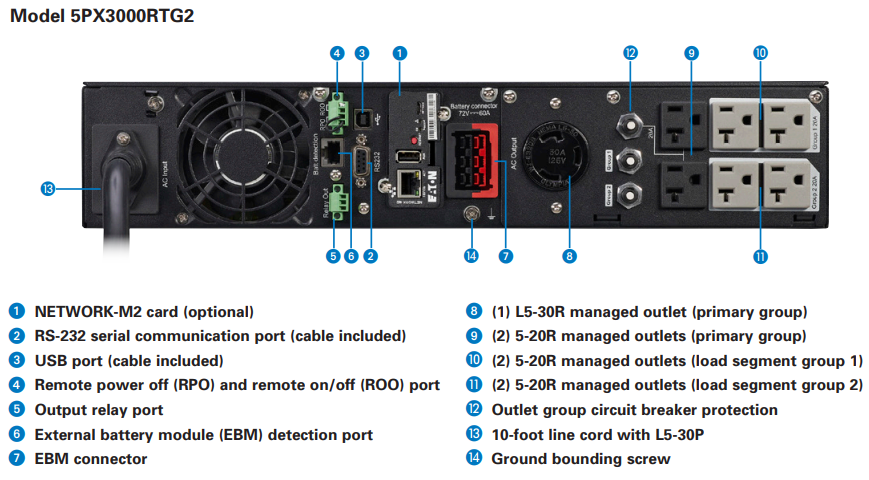

5PX3000RTG2 3000/3000 L5-30P, 10 ft (1) L5-20R, (6) 5-20R 3.4 (2U) x 17.4 x 23.7 74.5 3/9 17/41
120V, 50/60Hz rack/tower network card bundles with NETWORK-M2
Catalog number Rating (VA/watts) Input connection Output receptacles Dimensions (H x W x D), in Net weight, lb Internal runtime (min)
Full / half load
Plus 1 EBM
Full/ half load
5PX1000RTNG2 1000/1000 5-15P, 10 ft. (8) 5-15R 3.4 (2U) x 17.2 x 17.6 44.5 6/17 35/82
5PX1500RTNG2 1440/1440 5-15P, 10 ft. (8) 5-15R 3.4 (2U) x 17.2 x 17.6 50.7 5/15 26/60
5PX2000RTNG2 1950/1950 5-20P, 10 ft. (1) L5-20R, (6) 5-20R 3.4 (2U) x 17.2 x 23.7 65.3 4/12 27/62
5PX2000RT3UNG2 1950/1950 5-20P, 10 ft. (1) L5-20R, (6) 5-20R 5.1 (3U) x 17.2 x 19.0 64.2 4/12 27/62
5PX3000RTNG2 3000/3000 L5-30P, 10 ft (1) L5-30R, (6) 5-20R 3.4 (2U) x 17.2 x 23.7 74.5 3/9 17/41
5PX3000RT3UNG2 3000/3000 L5-30P, 10 ft (1) L5-30R, (6) 5-20R 5.1 (3U) x 17.2 x 19.0 72.8 3/9 17/41
5PX G2 extended battery module options
Catalog number Description DC voltage Dimensions (H x W x D), in Net weight, lb
5PXEBM48RTG2 Extended battery module for 5PX1000RTG2, 5PX1000RTNG2, 5PX1500RTG2, 5PX1500RTNG2, 5PX1500HRTG2 48V 3.4 (2U) x 17.2 x 17.6 61.3
5PXEBM72RTG2 Extended battery module for 5PX2000RTG2, 5PX2000RTNG2, 5PX2200HRTG2, 5PX3000RTG2, 5PX3000RTNG2, 5PX3000HRTG2, 5PX3000HRTNG2 72V 3.4 (2U) x 17.2 x 23.7 89.1
5PXEBM72RT3UAG2 Extended battery module for 5PX2000RT3UNG2, 5PX3000RT3UNG2 72V 5.1 (3U) x 17.2 x 19.0 87.5
5PX G2 power distribution (PDU) and maintenance bypass (MBP) options
Catalog number Description Input connection Output connection Dimensions (H x W x D), in
EHBPL1500R-PDU1U 1.5 kVA HotSwap MBP 5-15P (6) 5-15R 2.1 x 17.3 x 3.8
EHBPL2000R-PDU1U 2 kVA HotSwap MBP 5-20P (6) 5-20R 2.1 x 17.3 x 3.8
EHBPL3000R-PDU1U 3 kVA HotSwap MBP L5-30P (5) 5-20R, (1) L5-30R 2.1 x 17.3 x 3.8
ePBZ90 Basic 3 kVA, 120V, 0U rackmount PDU L5-30P (24) 5-20R 40 (0U) x 1.9 x 2.1
ePBZ71 Basic 2 kVA, 120V, 0U rackmount PDU 5-20P, L5-20P (30) 5-20R 72 (0U) x 1.5 x 1.5
ePBZ78 Basic 3 kVA, 120V, 0U rackmount PDU L5-30P (20) 5-20R 1.7 (1U) x 17 x 5.1

Images:

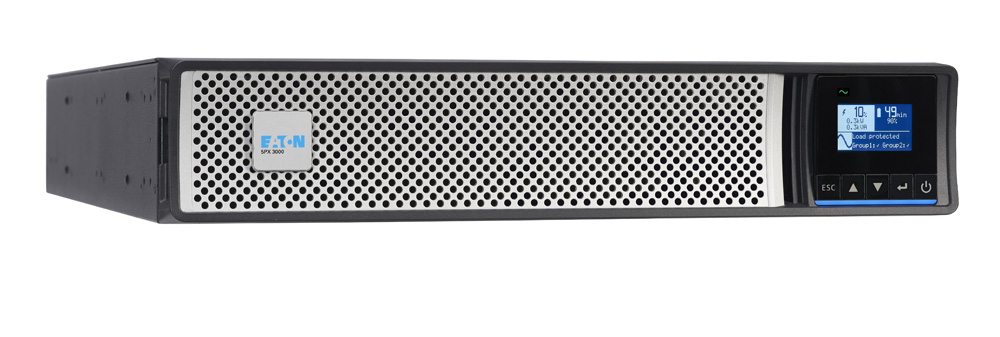

5PX G2 Top Angle View

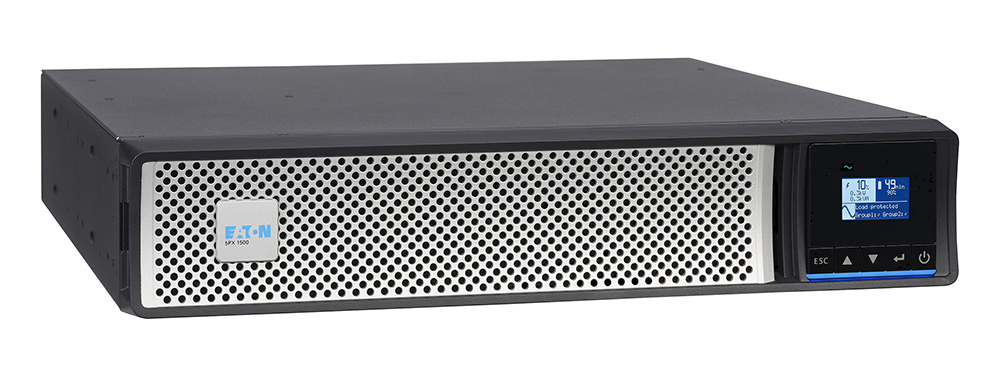

5PX G2 Angle View

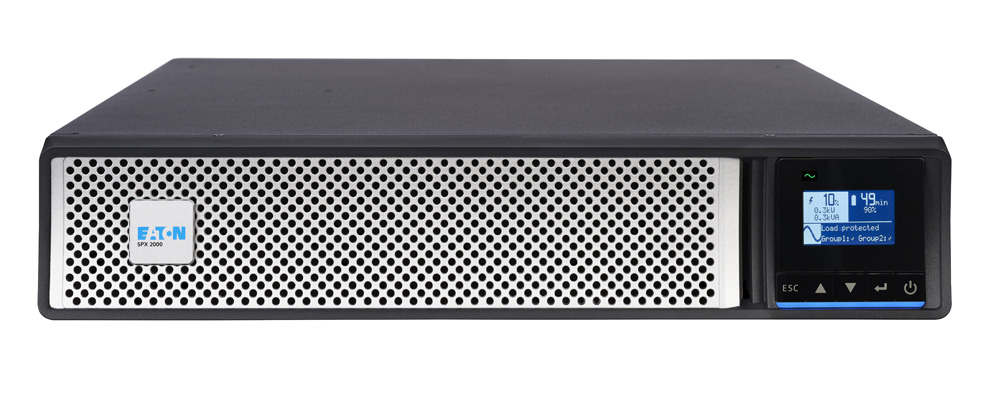

5PX G2 Top Front View

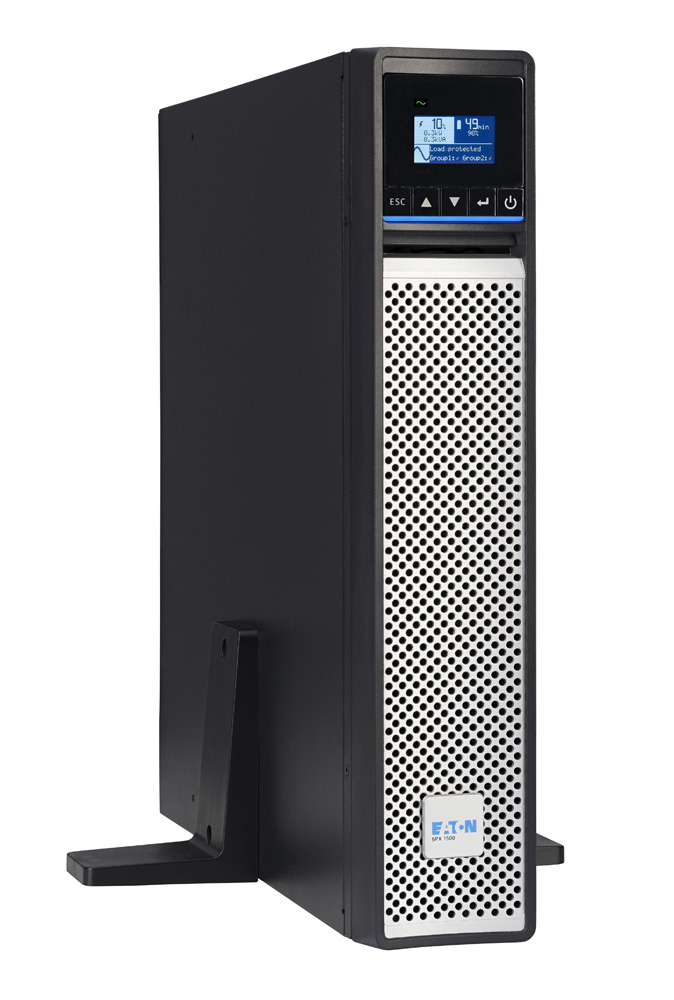

5PX G2 angle vertical

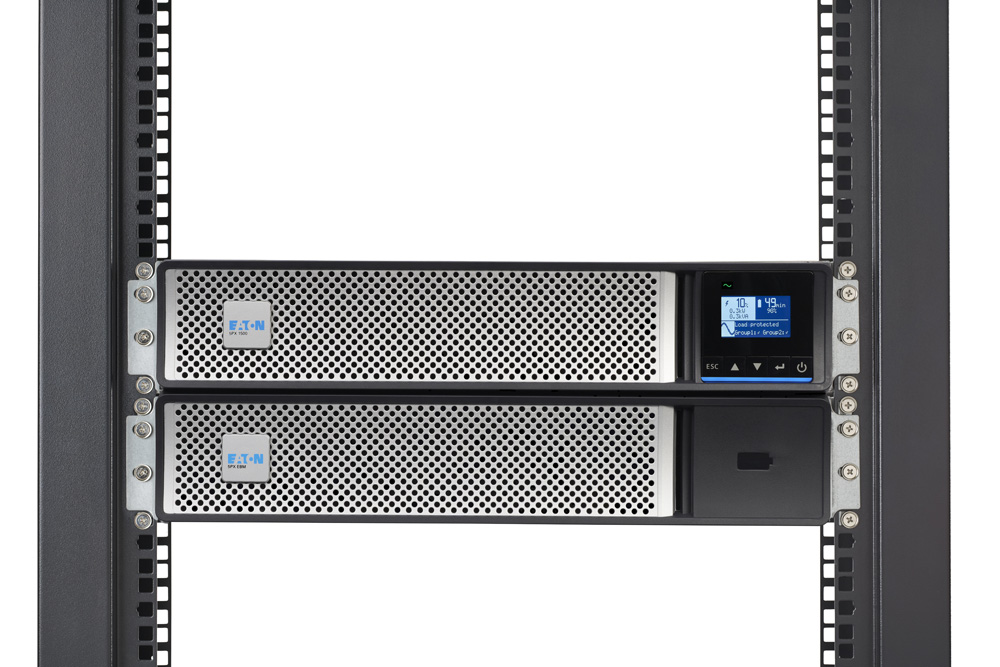

5PX G2 rackmount stack

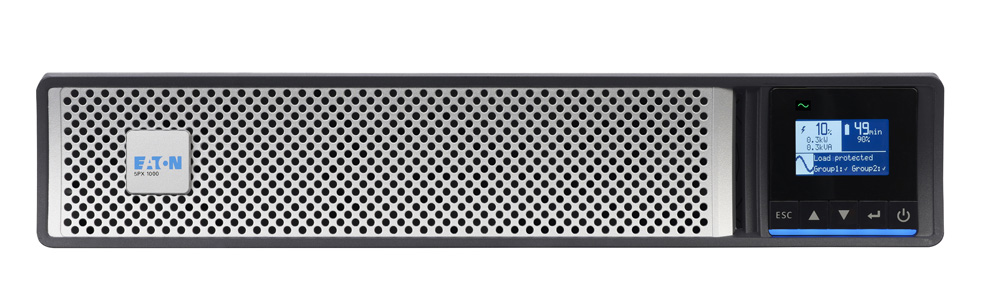

5PX G2 UPS Front View

Documentation:

Download the Eaton 5PX G2 UPS Brochure (PDF).

Pricing Notes:

Eaton Products
5PX G2 Models - 2U Rackmount
Eaton 5PX G2 UPS, 2U, 1000 VA, 1000 W, 5-15P input, Outputs: (8) 5-15R, 120V
#5PX1000RTG2
Our Price: $858.00
Eaton 5PX G2 UPS, 2U, 1000 VA, 1000 W, 5-15P input, Outputs: (8) 5-15R, 120V, Network card
#5PX1000RTNG2
Our Price: $1,281.00
Eaton 5PX G2 UPS, 2U, 1500 VA, 1500 W, C14 input, Outputs: (8) C13, 208V
#5PX1500HRTG2
Our Price: $1,329.00
Eaton 5PX G2 UPS, 2U, 1440 VA, 1440 W, 5-15P input, Outputs: (8) 5-15R, 120V
#5PX1500RTG2
Our Price: $1,143.00
Eaton 5PX G2 UPS, 2U, 1440 VA, 1440 W, 5-15P input, Outputs: (8) 5-15R, 120V, Network card
#5PX1500RTNG2
Our Price: $1,566.00
Eaton 5PX G2 UPS, 2U, 1950 VA, 1950 W, 5-20P input, Outputs: (1) L5-20R, (6) 5-20R, 120V
#5PX2000RTG2
Our Price: $1,964.00
Eaton 5PX G2 UPS, 2U, 1950 VA, 1950 W, 5-20P input, Outputs: (1) L5-20R, (6) 5-20R, 120V, Network card
#5PX2000RTNG2
Our Price: $2,387.00
Eaton 5PX G2 UPS, 2U, 2200 VA, 2200 W, L6-20 input, Outputs: (2) C19, (8) C13, 208V
#5PX2200HRTG2
Our Price: $2,302.00
Eaton 5PX G2 UPS, 2U, 3000 VA, 3000 W, L6-20 input, Outputs: (2) C19, (8) C13, 208V
#5PX3000HRTG2
Our Price: $2,718.00
Eaton 5PX G2 UPS, 2U, 3000 VA, 3000 W, L6-20 input, Outputs: (2) C19, (8) C13, 208V, Network card
#5PX3000HRTNG2
Our Price: $3,141.00
Eaton 5PX G2 UPS, 2U, 3000 VA, 3000 W, L5-30P input, Outputs: (1) L5-30R, (6) 5-20R, 120V
#5PX3000RTG2
Our Price: $2,351.00
Eaton 5PX G2 UPS, 2U, 3000 VA, 3000 W, L5-30P input, Outputs: (1) L5-30R, (6) 5-20R, 120V, Network card
#5PX3000RTNG2
Our Price: $2,774.00
5PX G2 Models - 3U Rackmount
Eaton 5PX G2 UPS, 3U, 1950 VA, 1950 W, 5-20P input, Outputs: (1) L5-20R, (6) 5-20R, 120V
#5PX2000RT3UNG2
Our Price: $2,305.00
Eaton 5PX G2 UPS, 3U, 3000 VA, 3000 W, L5-30P input, Outputs: (1) L5-30R, (6) 5-20R, 120V, Network card
#5PX3000RT3UNG2
Our Price: $2,652.00
