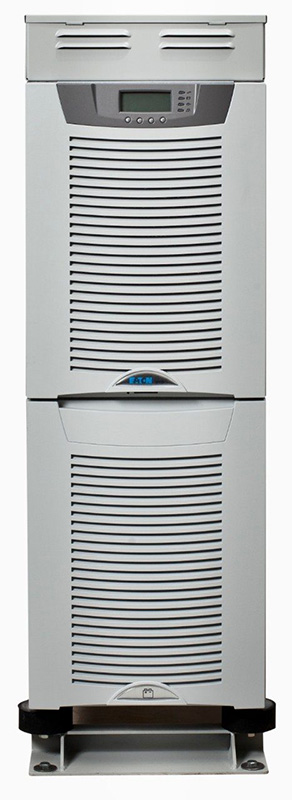

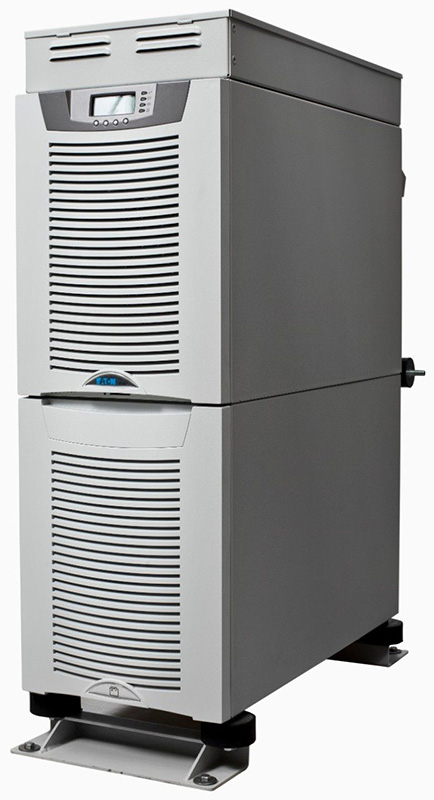

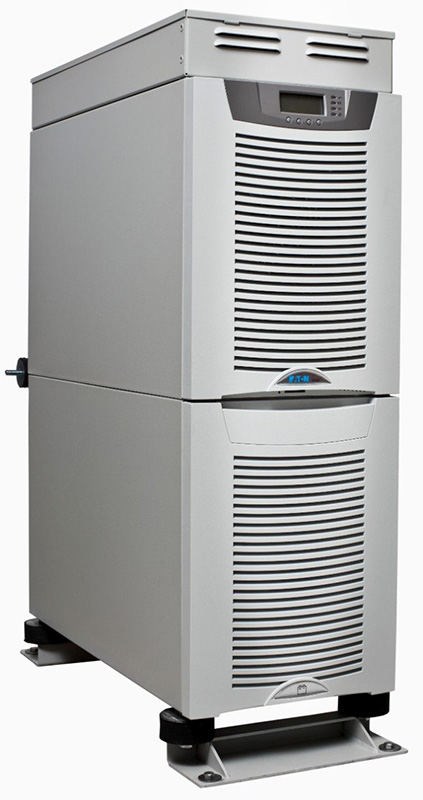

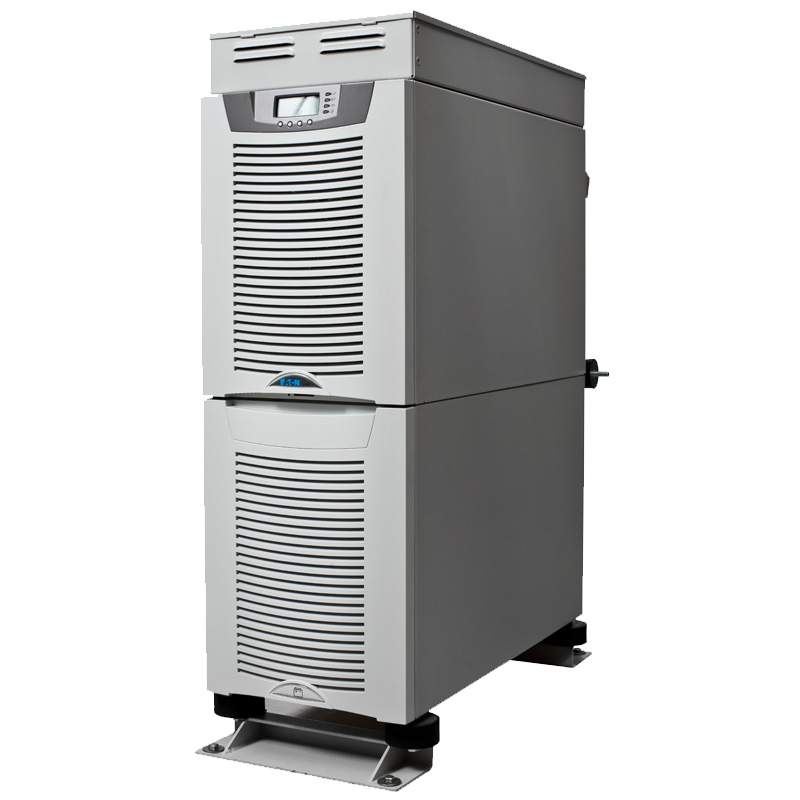

Eaton 9155 Marine UPS
Double Conversion UPS for Marine and Offshore

Features:

Qualifed design for marine and offshore environment

• Compact design for saving space
• Easy to install, mounting rails can be bolted or welded to the deck/bulk head
• IP22 protection class
• Vibration absorbers under and at the back of the cabinet
• Maintenance from the front

Premium power performance

• Double conversion provides the highest level of protection available by isolating the output power from all input anomalies.
• Active power factor correction (PFC) provides 0,99 input power factor and less than 4,5% ITHD, thus eliminating interference with other critical equipment in the same network and enhancing compatibility with generators.
• The UPS is optimized for protecting modern 0,9 p.f. rated IT equipment without the need to oversize.

True reliability

• Patented Powerware HotSync technology makes possible to parallel up to four UPSs to increase availability or add capacity. The technology enables load sharing without any communication line, thus eliminating single point of failure.
• ABM technology charges batteries only when necessary, preventing batteries corrosion and prolonging batteries service life by up to 50%.
• Internal automatic static bypass switch
• Internal mechanical bypass switch

Extensive confgurability

• Configurable to frequency converter operation (50 Ô 60Hz and 60 Ô 50Hz)
• A multilingual graphical LCD display makes possible to monitor the UPS status easily.
• Wide software and connectivity options provide monitoring, management and shutdown capabilities over network
• Internal space for 1 - 2 optional input/output transformers

Cost savings and sustainability

• Compact space efficient tower design offers smaller footprint enabling easy data centre space-planning and preserving valuable raised-floor real estate.
• Possibility for internal transformer eliminate the need for costly and space-consuming external cabinets.
• A single technical platform used in Eaton´s UPS products guarantee easy upgrades and similarity in service, thus lowering total cost of ownership.
• A range of service agreement options can be easily customized for customers’ needs and budget.
• Eaton uses sustainable materials and highly efficient manufacturing technology, thus generating dramatic savings in carbon footprint as compared to competitive UPS systems.

Specifications:

Eaton 9155 Marine UPS 20 - 40 kVA Specifications
UPS output power rating (0,9 p.f.)
kVA	20, 30, 40
kW	18, 27, 36
General
Efficiency in double conversion mode (full load)	93% (without transformer)
Efficiency in double conversion mode (half load)	91% (without transformer)
Distributed parallelling with Hot Sync technology	4
Field upgradeable	Yes
Inverter/rectifier topology	Transformer-free IGBT with PWM
Audible noise	<50 dB
Colour	RAL 7035
Input Characteristics
Nominal voltage rating (configurable)	380, 400, 415 V 50/60 Hz
With external transformer	e.g. 230, 440, 480, 690 V
Input voltage range	Low -20% at 100% load/-50% at 50% load without battery discharge; High +10%/max +20%
Input frequency range	45-65 Hz
Input power factor	0,99
Input ITHD	less than 4,5%
Soft start capability	Yes
Internal backfeed protection	Yes
Output Characteristics
Nominal voltage rating (configurable)	220/380, 230/400, 240/415 V 50/60 Hz
With transformer	e.g. 230, 440, 480, 690 V
Output UTHD	<3% (100% linear load); <5% (reference non linear load)
Output power factor	0,9 (e.g. 27 kW at 30 kVA)
Permitted load power factor	0,7 lagging - 0,8 leading
Battery
Type	VRLA, Li-Ion, NiCd, Eaton Super Capacitors
Charging method	432 V - 480 V
Temperature compensation	29.3 A, 58.6 A, 87.9 A, 117.2 A depending on model
Battery nominal voltage (lead-acid)	432 V (36x12 V, 216 cells)
Charging current / Model	Default 3 A *Max 60 A
Communications
X-Slot	2 communication bays
Serial ports	1 available
Relay inputs/outputs	2/1 programmable
Accessories
Accessories	Isolation transformer, long-life batteries, external battery cabinets, X-Slot connectivity (Web/SNMP, ModBus/Jbus, Relay, Hot Sync, ViewUPS-X remote display), Hot Sync parallel tie cabinet, integrated manual bypass, external maintenance bypass switch
Compliance with Standards
Classification survey report	On request
Dimensions and weights (mm/inches)
Dimensions (HxWxD)	9155-20-NT-M (20 kVA / 18 kW): 1745x575x762 (+200) mm 9155-30-NT-M (30 kVA / 27 kW): 1745x575x762 (+200) mm
Weight	9155-20-NT-M (20 kVA / 18 kW): 450 kg with input transformer 9155-30-NT-M (30 kVA / 27 kW): 450 kg with input transformer

*May be limited by maximum UPS input current rating

Images:

Documentation:

Download the Eaton 9155 and 9355 Marine UPS Datasheet (PDF).
