Eaton PDI WaveStar Infinity Monitoring System
Equipment monitoring and metering for the most demanding applications

Eaton Products

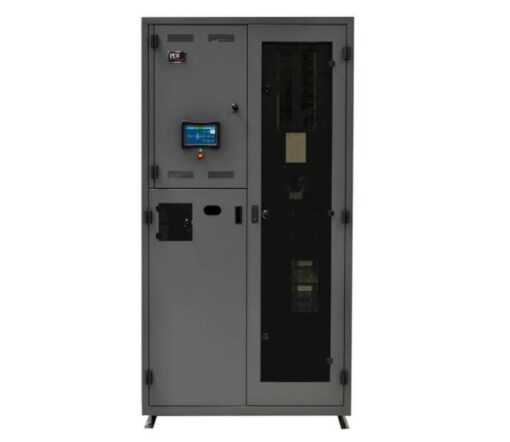

PDI WaveStar Infinity Monitoring System

Eaton PDI WaveStar Infinity Monitoring System

#PDI-WAVESTAR-IMS
Get a Quote!

Overview:

Eaton PDI WaveStar Infinity provides you with the most advanced power distribution equipment monitoring and metering solution to help you make prompt and informed decisions to support fault detection, energy management and tenant billing applications.

Real-time monitoring and notification
Revenue grade metering accuracy
Broad monitoring and metering feature support
Advanced network integration capability
Intuitive full function display

Real-time monitoring and notification

WaveStar Infinity is designed for real-time sensing, measuring, collecting, calculating, reporting and alarming of all electrical and equipment performance metrics.

Real-time monitoring
Low-latency response
100% ethernet connectivity

Revenue grade data accuracy

WaveStar Infinity ensures that you have metering data at the level of precision you need to accurately monitor consumption and validate your results.

Revenue grade
1% error
Energy management

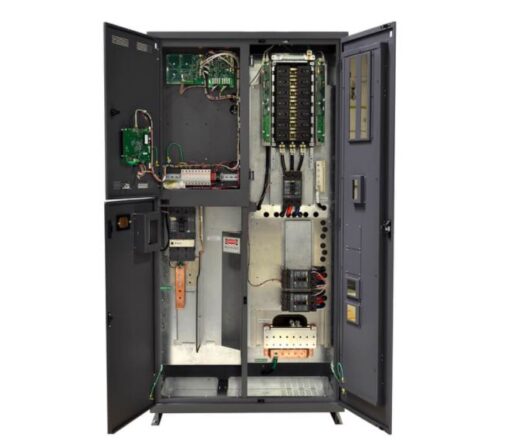

Broad monitoring and metering feature support

WaveStar Infinity supports a variety of optional monitoring and metering features both today and well into the future.

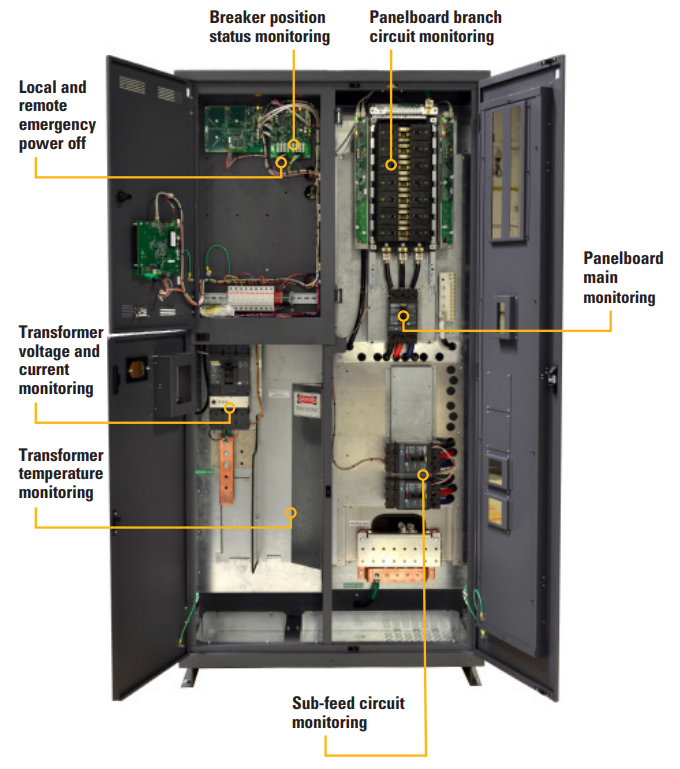

Breaker position and trip monitoring
Panelboard branch circuit monitoring
Panelboard mains monitoring
Sub-feed monitoring
Transformer performance monitoring
Power quality monitoring

Intuitive full function display

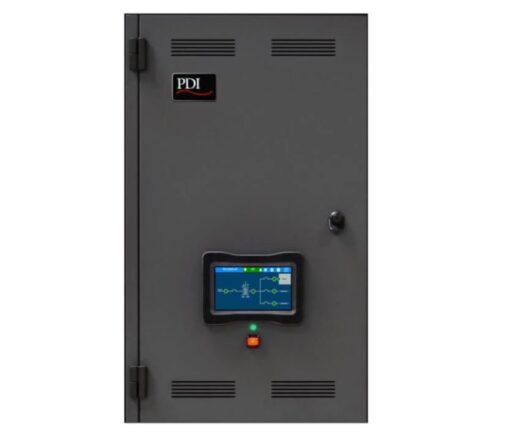

WaveStar Infinity comes standard with both local and remote access to your equipment monitoring and metering solution making it easier than ever to visualize, navigate, manage and configure your power distribution equipment monitoring.

Local 7” color display
Intuitive real-time user interface
On-screen configuration and setup
On-screen alarm management
Remote web browser access
User access controlled

Core Features:

Real-time monitoring and notificatio

PDI WaveStar Infinity is designed for real-time sensing, measuring, collecting, calculating, reporting and alarming of all electrical and equipment performance metrics.

Revenue grade data accuracy

PDI WaveStar Infinity ensures that you have metering data at the level of precision you need to accurately monitor consumption and validate your results.

Intuitive full function display

PDI WaveStar Infinity comes standard with both local and remote access to your equipment monitoring and metering solution making it easier than ever to visualize, navigate, manage and configure your power distribution equipment monitoring.

Broad monitoring/metering support

PDI WaveStar Infinity supports a variety of optional monitoring and metering features both today and well into the future.

Advanced network integration

The combination of multiple physical connection options, high data transfer rates and standard protocol support makes communication and integration with PDI WaveStar Infinity easy and versatile.

Specifications:

Eaton PDI WaveStar Infinity Monitoring System Specifications
Ratings
kVA rating	100 kVA – 400 kVA
Input	3-phase, 3-wire plus ground
Input voltage	@ 50 Hz: 380V – 415V @ 60 Hz: 600, 480 or 208
Output	3-phase, 4-wire plus ground
Output voltage	@ 50 Hz: 575, 415/240, or 380/230V128 @ 60 Hz: 600, 575, 480, or 208/120V
Listed to UL	UL 60950-1, CSA C22.2#60950-1, UL 891, IEC60950-1, EN 60950-1, EN 61000-6-2, EN 61000-6-4
General
Transformers	Voltage range support of 208V (L-L) to 600V (L-L) Transformer configuration support: Delta-Delta (Δ-Δ) Delta-Wye (Δ-Y) Wye-Wye(Y-Y) Delta(Δ)-ZigZag Wye(Y)-ZigZag Support for local and remote Emergency Power Off (EPO) Measured or calculated values Voltage (L-L & L-N) Frequency Current demand (per phase, neutral and ground) Current peak (per phase, neutral and ground) Real power (per phase and sum) Apparent power (per phase and sum) Reactive power (per phase and sum) Energy (per phase and sum) Power factor (signed) Transformer temperature (normal/elevated/alarm)
Sub-feed monitoring	CT ratings of 100A to 3200A Measured or calculated values Current demand (per phase, neutral and ground) Current peak (per phase, neutral and ground) Real power (per phase and sum) Apparent power (per phase and sum) Reactive power (per phase and sum) Energy (per phase and sum) Power factor (signed)
Display	7 inch color touchscreen Capacitive touch technology 800x480 resolution Audio speaker
Network integration	Ethernet RJ-45 Serial RS-485 (4-wire and 2-wire) Serial baud rate of 9.6k to 115.2k (configurable) Native Modbus RTU Native Modbus TCP SNMP (version 1 and version 2) Native TCP/IP WebServer (HTML 5 support)
Operating Conditions
Operating temperature	0° to 60° C (32° to 140°F)
Storage temperature	-40° to 70° C (-40° to 158° F)
Relative humidity	<95%, non-condensing
Control power	90 VAC to 500 VAC (Line-to-Line)
Data sample resolution	24-bit per channel
Frequency range	50Hz or 60Hz
Sample rate	7680Hz per channel
Maximum data refresh rate	1 second
Panelboard Monitoring
Mains monitoring	CT ratings of 100A to 3200A Voltage range of 208V (L-L) to 480V (L-L) Measured or calculated values Frequency Voltage (L-L & L-N) Current (per phase, neutral and ground) Real power (per phase and sum) Apparent power (per phase and sum) Energy (per phase and sum) Power factor (signed)
Branch circuit monitoring	Maximum CT rating of 100A Measured or calculated values Current (demand and peak) Power (real, apparent) Energy (kWh) Power factor (signed)
