Eaton PDI PowerPak RPP
Remote Power Panel (RPP) for IT Equipment
More pricing below, click here!
Overview:
With over 150 possible configurations, the PDI PowerPak Remote Power Panel is one of the most versatile RPP on the market today. Its 24” x 24” or 24” x 38” footprint allows in-tile or on-tile installations. When combined with BCMS monitoring, trapped key interlocking and multiple panelboards configurations, the PDI PowerPak RPP can be adapted to the most demanding mission critical facilities.
- 2’ x 2’ footprint cabinet
- Freestanding enclosure
- Removable top, side and rear panels
- Full front inner hinged panelboard cover
- 208/120 Vac - 60 Hz or 50 Hz available
- 3-pole, 225A, 240V plug-in molded case main input switch
- Panelboard vision panels
- 400A system also available
- Square D or GE 42 pole distribution panelboard
- Listed to UL standards
- Oversized neutral for non-linear loads
- Single point grounding
- Configurable for top or bottom entry
- Compression connections on all panelboards
- Hinged side and rear panels
- Flush-mounted door handle with integral keyed locks
- Increased wiring space
- “Door-in-door” handle on dead front

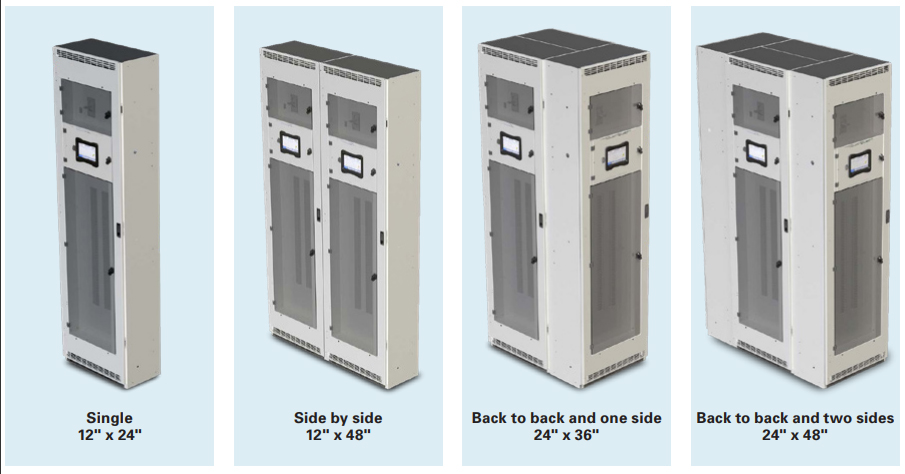

The modular compact remote power panel mounts on-tile and in-tile with standard raised floor systems.
Core Features:
Configurable panelboard distribution
The PDI PowerPak RPP can be configured with multiple panelboard manufacturers and styles.
Intelligent power monitoring
The PDI Branch Circuit Monitoring System (BCMS) enables pro-active management of power usage and availability.
Adaptable service entrances
Landing input and output cables has never been easier with top/bottom entry/exit configurations.
Trapped key interlocks
Mission Critical PDI PowerPak RPPs utilize trapped key interlocks for the ultimate in sequential control of the unit.
TVSS/SPD surge protection
Fast acting TVSS units can protect your mission-critical equipment from electrical spikes and surges.
Specifications:
| Eaton PDI PowerPak RPP Specifications | |
|---|---|
| Ratings | |
| Input/output: | 3-phase, 4-wire plus ground |
| Input voltage | @ 50 Hz: 220V – 415V @ 60 Hz: 208V, 400V, 415V, 480V |
| Safety standards | ETL Listed to UL and CSA standards |
| Mounting options | Wall, floor, in tile, on tile |
| Operating Conditions | |
| Storage temperature | -67°F to +185°F (-55°C to +85°C) |
| Operating temperature | +32°F to 104°F (0°C to 40°C) |
| Audible noise | ≤45dBA |
| Relative humidity | 0% to 95% non-condensing |
| Operating altitude | Up to 6,600 ft. (2,000m) |
| Monitoring | |
| Monitor | PDI WaveStar color touch monitor |
| Communications | serial RS-485 modbus RTU; optional SNMP or TCP/IP communications |
| Distribution panelboards/sub-feed breakers | |
| Brands | Eaton, SquareD, Schneider Electric, ABB |
| Style | Classic, IEC, finger-safe |
| Number of poles | 36, 42, 48, 72, 84 |
| Amerage | 225A, 400A |
| Voltage | Up to 480V |
Documentation:
Download the Eaton PDI PowerPak RPP Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
