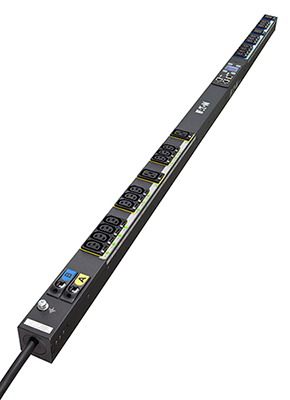

Managed ePDUs
Monitor and control power consumption at the individual outlet level.

Managed ePDUs

Sorry, this product is no longer available, please contact us for a replacement.


More pricing below, click here!

Overview:

Eaton® offers two leading technologies for power distribution management at the rack enclosure level, Advanced Monitored (AM) and Managed (MA) technologies. Both technologies offer outlet-level monitoring of power usage in kilowatt hours. They monitor critical factors such as voltage, current and power factor in high accuracy. This level of monitoring provides the granularity to understand your energy consumption. Specifically, it can reveal where extra capacity resides and allows you to assign power usage by customer, for example, an external customer within a colocation situation.

Key technology features

Eaton's Advanced Monitored and Managed ePDUs offer state-of-the-art monitoring and management capabilities, including:

  Advanced Monitored Managed
Outlet level monitoring
Outlet level power switching (on/off/reboot)
High accuracy monitoring
Advanced LCD display
Flexible mounting

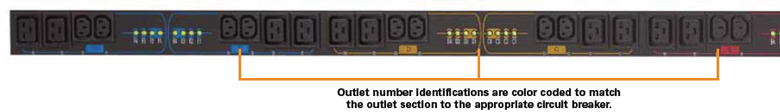

Color coded section labeling

Power Usage Effectiveness

Power usage effectiveness (PUE) is a metric used to determine the energy efficiency of a data center and is determined by dividing the amount of power entering a data center by the power used to run the computer infrastructure within it. These ePDUs provide outlet level power consumption for Level 3 PUE calculations.

\

PUE Levels

Level 1: Basic, uses UPS readings
Level 2: Intermediate, uses PDU level readings
Level 3: Advanced, uses server/outlet level readings

Features:

Key applications

Designed for the needs of the modern data center, these ePDU® configurations are flexible and available with eight different input plugs. All versions feature 200-240V power output to C13 and C19 outlets.

SMB and networking closets

  • Single-phase 20/30A solution with L6-20P and L6-30P input plugs
  • Provides 4-5 kW of power to the rack enclosure
  • The 20A version features a detachable power cord with standard C20 input
  • 120V cords available for 20A version

Enterprise data centers

  • Three phase 20/30A solutions
  • 400V power configurations available – reducing cost of electrical distribution and transformer loss
  • Supports high-consumption applications requiring 11-17 kW of power in racks

High density and Blade servers

  • Three-phase 50/60-amp solution with CS8365 and IEC60309 60A Delta input plugs
  • Support dense environments requiring 15-17 kW of power in the rack
  • 200-240V output

Managed ePDUs

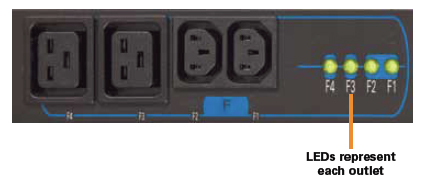

Receptacles

These units feature C13 and C19 receptacles.

Managed ePDUs

Environmental monitoring

You can utilize the Environmental Monitoring Probe to track internal and external temperatures, humidity and contact closure. This information allows you to operate the ePDU up to 50°C, in turn reducing cooling costs. (Part number EMP001).

Managed ePDUs

Power management software

Eaton provides software management capabilities for every application. Out-of-the-box Web browser management is built into the ePDU and SNMP allows integration to thirdparty network management. This also allows you to connect to Eaton's management software options: Intelligent Power® Manager or Power Xpert®.

Monitoring/management software Quantity of racks best supported Type of software Application
Web browser / e-mail 1-25 Includes required Web browser Data closet small network standalone
SNMP 1-1000 Integrates to 3rd party software Small to large enterprise
IPM 1-200 Eaton software (free up to 10 nodes) Small-to-medium enterprise
Power Xpert 1-1000 Eaton enterprise solution Facility or large enterprise

Web Browser/E-mail alerts

Every network-connected ePDU comes standard with built-in web server and e-mail capability, allowing you to connect to any ePDU using a standard web browser.

SNMP

Every network-connected ePDU supports SNMP alerts and has a standard MIB available for third party software integration.

Cisco EnergyWise Compliant

These ePDUs are compliant with Cisco's EnergyWise software. The integration of Cisco Energywise into our ePDU offering helps you to reduce network and facilities energy usage and costs, so you can gain control of your building management system.

Intelligent Power Manager

Eaton's Intelligent Power Manager provides you with monitoring and management capabilities across your network. Ideal for virtualized environments, IPM is fully integrated with VMware's vCenter ServerTM and Microsoft SCVMM TM.

Power Xpert

Ideal for a facility enterprise solution, Power Xpert supports all of Eaton's products and offers support for third-party products as well — providing alarms, current readings and environmental sensors. This software also allows for customization under certain conditions.

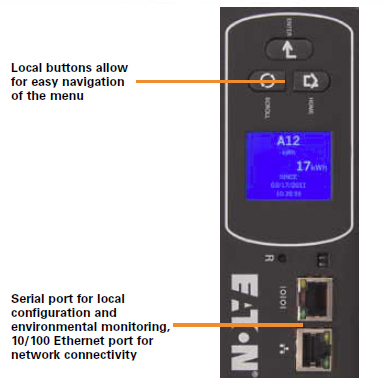

Advanced LCD Display

This new advanced LCD display provides outlet and section current information, voltage and kilowatt-hour readings, all at a single glance. The display is accompanied with a three-button interface that allows you to navigate through the user-friendly menu structure. Dual-color display blinks when a system alarm is detected, providing local notification.

Managed ePDUs

Specifications:

0U Advanced Monitored ePDUs
Catalog Number Outlet Level
Monitoring
Outlet Level
Switching
Input Plug Breakers Max kW Receptacles
C13 / C19
Dimensions
(H x W x D, in)
eAM008   L6-20P** None 3.3 20 / 4 60.0 x 2.2 x 2.6
eAM001   L6-30P (2) 20A 5.8 68.0 x 2.2 x 2.6
eAM002   L21-20P None 21 / 3 60.0 x 2.2 x 2.6
eAM004   L21-30P (3) 20A 8.6 68.0 x 2.2 x 2.6
eAM003   CS8365C 12.6
eAM005   309-460P9W (6) 20A 17.3 12 / 12 72.4 x 2.2 x 2.6
0U Managed ePDUs
Catalog Number Outlet Level
Monitoring
Outlet Level
Switching
Input Plug Breakers Max kW Receptacles
C13 / C19
Dimensions
(H x W x D, in)
eMA012 L6-20P** None 3.3 20 / 4 60.0 x 2.2 x 2.6
eMA006 L21-20P 5.8 21 / 3
eMA010 L6-30P (2) 20A 20 / 4 68.0 x 2.2 x 2.6
eMA011 L21-30P (3) 20A 8.6 21 / 3
eMA014 309-532P6W
*10-ft cord length, all units
**Detachable cordset, C20 cord is also included; 120V cords are optional,

Documentation:

Download the Eaton ePDU Data Center Catalog (PDF).

Download the Eaton Advanced Monitored and Managed ePDU Brochure (PDF).

Pricing Notes:

Eaton Products
Managed ePDU Models
Eaton Managed Rack PDU, 1.44 kW max, 120V, 12A, 0U, Single-Phase, No Circuit Breaker, 5-15P input, 10 ft cord, Outlet: (8) 5-15R
#EMA111-10
Our Price: $999.00
Eaton Managed Rack PDU, 1.44 kW max, 120V, 12A, 0U, Single-Phase, 5-15P input, 10 ft cord, Outlet: (16) 5-15R
#EMA112-10
Our Price: $1,230.00
Eaton Managed Rack PDU, 1.92 kW max, 120V, 16A, 0U, Single-Phase, 5-20P, L5-20P input, 10 ft cord, Outlet: (24) 5-20R
#EMA114-10
Our Price: $1,302.00
Eaton Managed Rack PDU, 2.88 kW max, 120V, 24A, 0U, Single-Phase, L5-30P input, 10 ft cord, Outlets: (24) 5-20R
#EMA108-10
Our Price: $1,656.00
Eaton Managed Rack PDU, 5.76 kW max, 200-240V, 24A, 0U, Single-Phase, L6-30P input, 10 ft cord, Outlets: (24) C13 and (4) C19
#EMA107-10
Our Price: $1,811.00
Eaton Managed Rack PDU, 5.76 kW max, 200-240V, 16A, 0U, Three-Phase, L15-20P input, 10 ft cord, Outlets: (18) C13 and (6) C19
#EMA324-10
Our Price: $1,858.00
Eaton Managed Rack PDU, 5.76 kW max, 120/208V, 16A, 0U, Three-Phase, L21-20P input, 10 ft cord, Outlets: (18) C13 and (6) C19
#EMA325-10
Our Price: $1,809.00
Eaton Managed Rack PDU, 8.64 kW max, 200-240V, 24A, 0U, Three-Phase, L15-30P input, 10 ft cord, Outlets: (18) C13 and (6) C19
#EMA326-10
Our Price: $2,089.00
Eaton Managed Rack PDU, 8.64 kW max, 120/208V, 24A, 0U, Three-Phase, L21-30P input, 10 ft cord, Outlets: (18) C13 and (6) C19
#EMA327-10
Our Price: $2,162.00
Eaton Managed Rack PDU, 8.64 kW max, 120/208V, 24A, 0U, Three-Phase, L21-30P input, 10 ft cord, Outlets: (21) C13 and (6) C19
#EMA333-10
Our Price: $1,876.00
Eaton Managed Rack PDU, 12.48 kW max, 200-240V, 35A, 0U, Three-Phase, CS8365 input, 6 ft cord, Outlets: (18) C13 and (6) C19
#EMA329-06
Our Price: $2,470.00
Eaton Managed Rack PDU, 14.4 kW max, 200-240V, 40A, 0U, Three-Phase, CS8365 input, 6 ft cord, Outlets: (12) C13 and (12) C19
#EMA330-06
Our Price: $2,800.00
