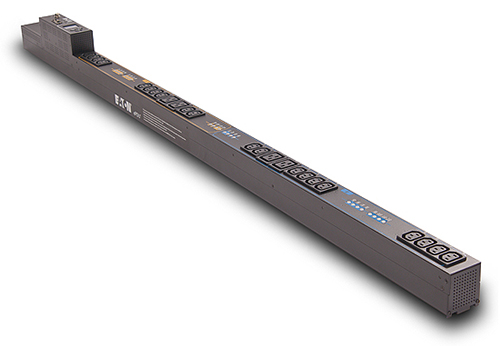

Eaton Advanced Monitored ePDUs
Monitor and control power consumption at the individual outlet level.
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
Eaton® offers two leading technologies for power distribution management at the rack enclosure level, Advanced Monitored (AM) and Managed (MA) technologies. Both technologies offer outlet-level monitoring of power usage in kilowatt hours. They monitor critical factors such as voltage, current and power factor in high accuracy. This level of monitoring provides the granularity to understand your energy consumption. Specifically, it can reveal where extra capacity resides and allows you to assign power usage by customer, for example, an external customer within a colocation situation.
Key technology features
Eaton's Advanced Monitored and Managed ePDUs offer state-of-the-art monitoring and management capabilities, including:
| Advanced Monitored | Managed | |
| Outlet level monitoring | ||
| Outlet level power switching (on/off/reboot) | ||
| High accuracy monitoring | ||
| Advanced LCD display | ||
| Flexible mounting | ||

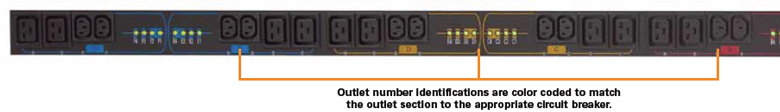

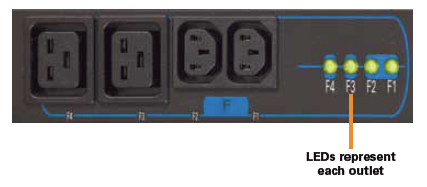

| Color coded section labeling |
Power Usage Effectiveness
Power usage effectiveness (PUE) is a metric used to determine the energy efficiency of a data center and is determined by dividing the amount of power entering a data center by the power used to run the computer infrastructure within it. These ePDUs provide outlet level power consumption for Level 3 PUE calculations.
PUE Levels
Level 1: Basic, uses UPS readings
Level 2: Intermediate, uses PDU level readings
Level 3: Advanced, uses server/outlet level readings
Features:
Key applications
Designed for the needs of the modern data center, these ePDU® configurations are flexible and available with eight different input plugs. All versions feature 200-240V power output to C13 and C19 outlets.
SMB and networking closets
- Single-phase 20/30A solution with L6-20P and L6-30P input plugs
- Provides 4-5 kW of power to the rack enclosure
- The 20A version features a detachable power cord with standard C20 input
- 120V cords available for 20A version
Enterprise data centers
- Three phase 20/30A solutions
- 400V power configurations available – reducing cost of electrical distribution and transformer loss
- Supports high-consumption applications requiring 11-17 kW of power in racks
High density and Blade servers
- Three-phase 50/60-amp solution with CS8365 and IEC60309 60A Delta input plugs
- Support dense environments requiring 15-17 kW of power in the rack
- 200-240V output
Receptacles
These units feature C13 and C19 receptacles.
Environmental monitoring
You can utilize the Environmental Monitoring Probe to track internal and external temperatures, humidity and contact closure. This information allows you to operate the ePDU up to 50°C, in turn reducing cooling costs. (Part number EMP001).
Power management software
Eaton provides software management capabilities for every application. Out-of-the-box Web browser management is built into the ePDU and SNMP allows integration to thirdparty network management. This also allows you to connect to Eaton's management software options: Intelligent Power® Manager or Power Xpert®.
| Monitoring/management software | Quantity of racks best supported | Type of software | Application |
| Web browser / e-mail | 1-25 | Includes required Web browser | Data closet small network standalone |
| SNMP | 1-1000 | Integrates to 3rd party software | Small to large enterprise |
| IPM | 1-200 | Eaton software (free up to 10 nodes) | Small-to-medium enterprise |
| Power Xpert | 1-1000 | Eaton enterprise solution | Facility or large enterprise |
Web Browser/E-mail alerts
Every network-connected ePDU comes standard with built-in web server and e-mail capability, allowing you to connect to any ePDU using a standard web browser.
SNMP
Every network-connected ePDU supports SNMP alerts and has a standard MIB available for third party software integration.
Cisco EnergyWise Compliant
These ePDUs are compliant with Cisco's EnergyWise software. The integration of Cisco Energywise into our ePDU offering helps you to reduce network and facilities energy usage and costs, so you can gain control of your building management system.
Intelligent Power Manager
Eaton's Intelligent Power Manager provides you with monitoring and management capabilities across your network. Ideal for virtualized environments, IPM is fully integrated with VMware's vCenter ServerTM and Microsoft SCVMM TM.
Power Xpert
Ideal for a facility enterprise solution, Power Xpert supports all of Eaton's products and offers support for third-party products as well — providing alarms, current readings and environmental sensors. This software also allows for customization under certain conditions.
Advanced LCD Display

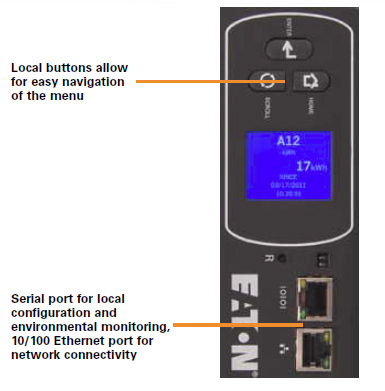

This new advanced LCD display provides outlet and section current information, voltage and kilowatt-hour readings, all at a single glance. The display is accompanied with a three-button interface that allows you to navigate through the user-friendly menu structure. Dual-color display blinks when a system alarm is detected, providing local notification.
Specifications:
| 0U Advanced Monitored ePDUs | |||||||
|---|---|---|---|---|---|---|---|
| Catalog Number | Outlet Level Monitoring |
Outlet Level Switching |
Input Plug | Breakers | Max kW | Receptacles C13 / C19 |
Dimensions (H x W x D, in) |
| eAM001 | L6-30P | (2) 20A | 5.8 | 20 / 4 | 68.0 x 2.2 x 2.6 | ||
| eAM002 | L21-20P | None | 21 / 3 | 60.0 x 2.2 x 2.6 | |||
| eAM005 | 309-460P9W | (6) 20A | 17.3 | 12 / 12 | 72.4 x 2.2 x 2.6 | ||
| 0U Managed ePDUs | |||||||
| Catalog Number | Outlet Level Monitoring |
Outlet Level Switching |
Input Plug | Breakers | Max kW | Receptacles C13 / C19 |
Dimensions (H x W x D, in) |
| eMA012 | L6-20P** | None | 3.3 | 20 / 4 | 60.0 x 2.2 x 2.6 | ||
| eMA006 | L21-20P | 5.8 | 21 / 3 | ||||
| eMA010 | L6-30P | (2) 20A | 20 / 4 | 68.0 x 2.2 x 2.6 | |||
| eMA011 | L21-30P | (3) 20A | 8.6 | 21 / 3 | |||
| eMA014 | 309-532P6W | (6) 20A | 17.3 | 12 / 12 | 72.4 x 2.2 x 2.6 | ||
*10-ft cord length, all units
**Detachable cordset, C20 cord is also included; 120V cords are optional,
Documentation:
Download the Eaton ePDU Data Center Catalog (PDF).
Download the Advanced Monitored and Managed ePDU Brochure (PDF).
