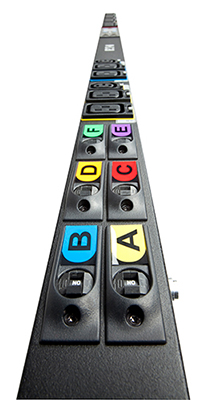

Eaton Switched ePDUs
Rack mounted power distribution units
Sorry, this product is no longer available. Please contact us for a replacement.
Overview:
Designed for data centers needing remote site management, the Switched ePDUs provide remote power monitoring of both voltage and current. The current is also displayed on a local two-digit current meter. These units also monitor both temperature and humidity. The Switched ePDUs employ multiple configurations, available in 0U and 2U rack mount, and 42" or 66" vertical lengths. They also provide individual on/off/reboot control of up to 36 receptacles. The control interface is highly customizable with multiple functions and flexibility to send either SNMP traps or e-mail alerts.
Eaton Switched ePDUs - Features- Individually control outlets via Serial or Ethernet connection
- Voltage Monitoring and Current Monitoring
- Local current meter display shows current draw
- External inputs for temperature, humidity, and switch-closure sensors
- Strapping allows control of up to 23 slave units from a master unit
- UL60950-1 Edition requirements
ePDU technologies
Eaton's ePDU technologies satisfy the demand of every data center. Eaton ePDUs offer single and dual chassis, five technology options, the broadest power range in the market and the ability to manufacture custom ePDUs. They also offer an arrangement of outlets (number and type) for every region.
Eaton ePDUs are distinguished for their quality, dependability and versatility. All products are designed for a specific application with an emphasis on safety and reliability. The Eaton line includes an extensive range of vertical, zero 0U products, which do not occupy server space in racks, as well as 1U and 2U formats. Environmental monitoring options are also available.
| Feature | Basic (BA) | Monitored Network (MI) |
Advanced Monitored (AM) |
Switched (SW) |
Automatic Transfer (AT) |
| Rugged Construction | |||||
| Horizontal Products | |||||
| Vertical Products | |||||
| Local Current Display | |||||
| Current Monitoring Type | Section | Outlet | Section | ||
| Voltage Monitoring | |||||
| Serial Interface | |||||
| Ethernet Interface | |||||
| Environmental Sensors | * |
*Available on some models
Switched ePDUs:
Eaton switched ePDU provides remote power monitoring of both voltage and current and provides outlet level control for on/off/reboot.
| Catalog Number | Input Plug | Breaker | Max kW | Function | Cord (ft) |
Orientation | Receptacles | Dimensions (H x W x D, in) |

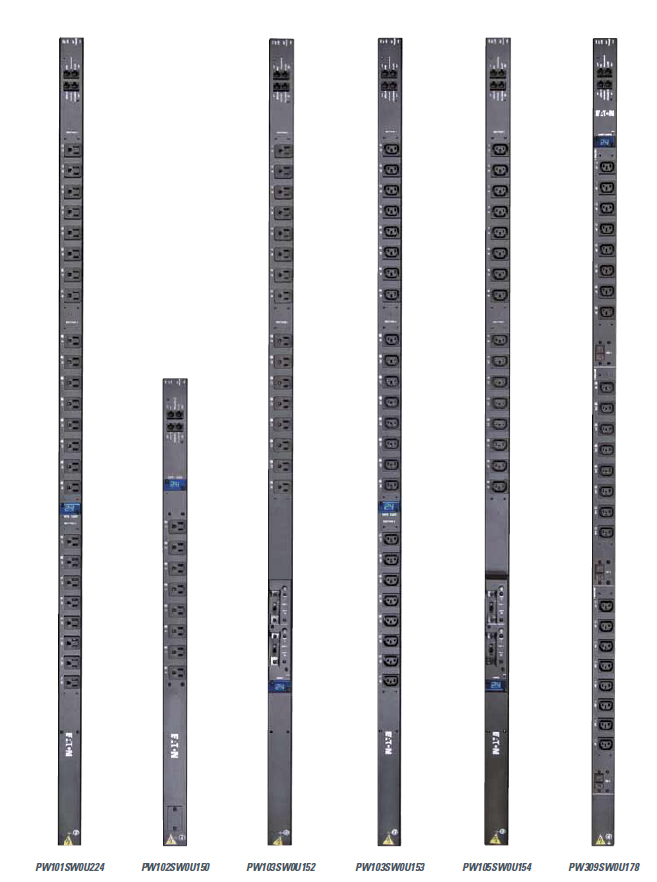

| PW101SW0U224 | 5-15P | None | 1.44 | SW | 9 | 0U | (16) 5-15R | 66 x 2.0 x 1.89 |
| PW102SW0U150 | L5-20P | None | 1.92 | SW | 9 | 0U | (8) 5-15R | 42 x 2.0 x 1.89 |
| PW102SW0U151 | L5-20P | None | 1.92 | SW | 9 | 0U | (24) 5-15R | 66 x 2.0 x 1.89 |
| PW103SW0U152 | L5-30P | (2) 15A | 2.88 | SW | 9 | 0U | (16) 5-15R | 66 x 2.0 x 1.89 |
| PW103SW0U153 | L6-20P | None | 3.33 | SW | 10 | 0U | (24) C13 | 66 x 2.0 x 1.89 |
| PW105SW0U154 | L6-30P | (2) 15A | 4.99 | SW | 9 | 0U | (16) C13 | 66 x 2.0 x 1.89 |
| PW306SW0U155 | L21-20P | None | 5.76 | SW | 9 | 0U | (24) 5-15R | 66 x 2.0 x 1.89 |
| PW306SW0U156 | L21-20P | None | 5.76 | SW | 9 | 0U | (24) C13 | 66 x 2.0 x 1.89 |
| PW309SW0U178 | L21-30P | (3) 20A | 8.64 | SW | 9 | 0U | (24) C13 | 66 x 2.0 x 3.5 |
| PW317SW0U400 | IEC 60309 460P9W | (6) 20A | 17.29 | SW | 12 | 0U | (18) C13 (6) C19 | 66 x 2 x 4 |
| PW317SW0U401 | IEC 60309 460P9W | (6) 20A | 17.29 | SW | 12 | 0U | (12) C13 (12) C19 | 66 x 2 x 4 |
| IPV70U1-EP1-09L | IEC309 516P6W | None | 14.4 | SW | 9 | 0U | (24) C13 | 66 x 2 x 1.83 |
| IPV70U2-EP1-09L | IEC309 516P6W | None | 14.4 | SW | 9 | 0U | (18) C13 (6) C19 | 70 x 2 x 4 |
| PW103SW2U413* | C20 | (1) 20A | 3.33 | SW | 0 | 1U | (8) C13 | 1.75 x 19 x 9.5 |
| PW103SW2U414* | C20 | (1) 20A | 3.33 | SW | 0 | 1U | (8) 5-15R | 1.75 x 19 x 9.5 |
| PW105SW2U415 | L6-30P | (2) 20A | 4.99 | SW | 9 | 2U | (20) C13 (4) C19 | 3.5 x 19 x 9.5 |
| PW105SW2U22 | 3 L6-30P | (2) 20A | 4.99 | SW | 9 | 2U | (20) C13 (4) C19 | 3.5 x 19 x 9.5 |
*Model does not have local or remote current or voltage monitoring, but features local on/off buttons in addition to remote switching.
Specifications:
| Product Snapshot | |
|---|---|
| Power Range | 1.4kW to 10+kW |
| Input Voltage | 100 to 240V |
| Function | Switched (SW) |
| ePDU Models | ||||
|---|---|---|---|---|
| Part Number | Style Number | Function | Input Plug | Output Receptacles |
| ePDU Models | ||||
| PW101MI0U233 | V70NA1-N-SS-109 | MI | 5-15P | (24) 5-15R |
| PW101MI1U221 | T982A1-N-SS-109 | MI | 5-15P | (12) 5-15R |
| PW101MI1U403 | T982A2-F-SS-109 | MI | 5-20P | (12) 5-20R |
| PW102MI0U234 | V70NA2-N-SS-109 | MI | 5-20P | (24) 5-20R |
| PW102MI0U235 | V70NA2-N-SL-109 | MI | L5-20P | (24) 5-20R |
| PW102MI1U160 | T982A2-N-SL-109 | MI | L5-20P | (12) 5-20R |
| PW103MI0U236 | V70BC1-N-SL-109 | MI | L5-30P | (24) 5-15R |
| PW103MI0U238 | V70NB4-N-SL-109 | MI | L6-20P | (24) C13, (4) C19 |
| PW103MI1U161 | T982C2-N-SL-109 | MI | L5-30P | (12) 5-20R |
| PW103MI1U162 | T982B3-N-SL-109 | MI | L6-20P | (12) C13 |
| PW105MI0U240 | V70BF5-N-SL-109 | MI | L6-30P | (24) C13, (4) C19 |
| PW105MI0U255 | V70BJ3-N-SL-109 | MI | L14-30P | (4) 5-20R, (24) C13, (4) C19 |
| PW105MI1U164 | T982F3-N-SL-109 | MI | L6-30P | (12) C13 |
| PW105MI1U165 | T982F4-N-SL-109 | MI | L6-30P | (8) C13, (4) C19 |
| PW105MI2U402 | PC3783 | MI | L6-30P | (20) C13 |
| PW306MI0U242 | VPC2864-A2-3847 | MI | L21-20P | (30) 5-20R |
| PW306MI0U243 | VPC2864-3848 | MI | L21-20P | (6) 5-20R, (24) C13, (3) C19 |
| PW306MI0U245 | VPC2864-3851 | MI | L21-20P | (36) C13, (6) C19 |
| PW306MI0U247 | VPC2864-3857 | MI | L21-20P | (18) 5-20R, (6) L6-20R |
| PW306MI0U408 | VPC_2864_A1 | MI | L21-20P | (30) 5-15R |
| PW306MI0U416 | VPC2864-3436 | MI | L21-20P | (42) C13 |
| PW309MI0U248 | VPC2864-3849 | MI | L21-30P | (6) 5-20R, (24) C13, (3) C19 |
| PW309MI0U256 | VPC2864-3852 | MI | L21-30P | (30) C13, (6) C19 |
| PW314MI0U252 | VPC2864-3859 | MI | CS8365 | (2) L6-30R, (24) C13, (4) C19 |
| PW314MI0U254 | VPC2864-3854 | MI | CS8365 | (30) C13, (6) C19 |
| PW317MI0U222 | VPC3690 | MI | 309-460P9W | (12) C13, (12) C19 |
Documentation:
Download the Eaton ePDU Data Center Catalog (PDF).
Download the Eaton Switched ePDU Product Focus (PDF).
