Eaton RE ePDUs
Rack mounted power distribution units
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
Remote emergency power off ePDUs allow immediate and complete 'power off' control from one button. These ePDUs are hardwired and the power off switch can be housed anywhere in the datacenter for quick and easy access, should the need for immediate shutdown arise.
REmote EPO ePDUs - FEATURES- Control the PDU through a Remote Control Panel
- Perfect for industrial, manufacturing, and test & measurement use
- Multiple units can be connected to the one Remote Control Panel
- EPO is normally open, so removing the EPO connection will not shut down the power to the unit.
Specifications:
| Product Snapshot | |
|---|---|
| Power Range | 1.4kW to 8.6kW |
| Input Voltage | 100 to 240V |
| Function | RE: Remote Emergency Power Off |
| RCP200-GRY | RCP200-GRY-LT | |
|---|---|---|
| General | ||
| Description | EPDU, 2U, RE, STANDARD CONTROL | EPDU, 1U, RE, LATCHING CONTROL |
| Function | RE | RE |

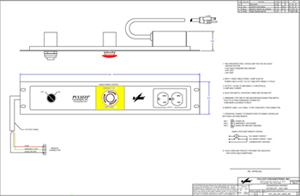

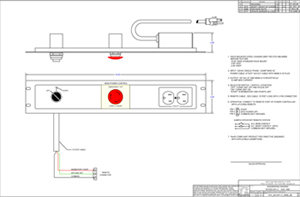

| Drawing |  |
 |
| Part Number | ||
| Style Number | RCP200-GRY | RCP200-GRY-LT |
| Product Code | 50006 | 50006 |
| Availability | Top Sellers 0-2 week lead time | Top Sellers 0-2 week lead time |
| U Height | 2 | 2 |
| MIB | N/A | N/A |
| Physical | ||
| Dimensions (H x W x D, inches) | Box: 23 x 8 x 7.5 Unit: 0 x 0 x 0 | Box: 23 x 8 x 7.5 Unit: 0 x 0 x 0 |
| Mounting Style | Horizontal | Horizontal |
| Input | ||
| Max kW | 1.44 | 1.44 |
| Plug | (1) 5-15P |
(1) 5-15P |
| Cable Length (ft) | 6 | 6 |
| Voltage | 1-Phase 110-125 | 1-Phase 110-125 |
| Current | 12A | 12A |
| Phase | Single Phase | Single Phase |
| Output | ||
| Outlets | (2) 5-15R |
(2) 5-15R |
| Circuit Breakers | None | None |
| Outlet Control | No Remote Control | No Remote Control |
| Local Switches | None | None |
| Protection & Filtering | ||
| Spike/Surge Suppression | Yes | Yes |
| EMI/RFI Filter | None | None |
| Control & Interface | ||
| Serial Interface | No | No |
| Ethernet Interface | No | No |
| Voltage Monitoring | None | None |
Documentation:
Download the ePDU Data Center Catalog (PDF).
