Eaton 9130 Rackmount UPS
Uninterruptible Power Supply

Features:

Maximum availability

• ABM technology increases battery life and system uptime

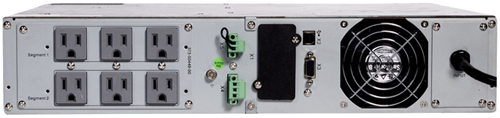

• Load segments allow for selective load shedding during outages

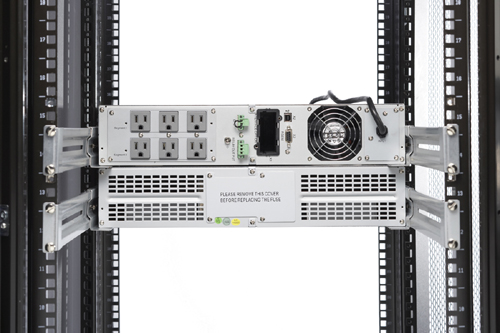

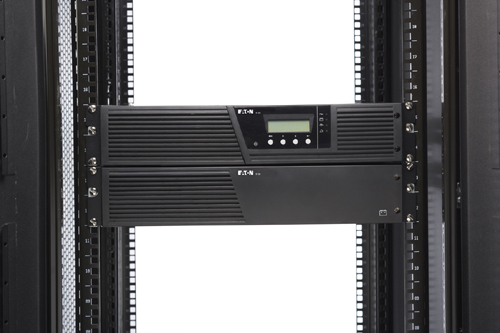

• Optional 2U, hot-swappable extended battery modules (EBMs) extend backup runtime for hours

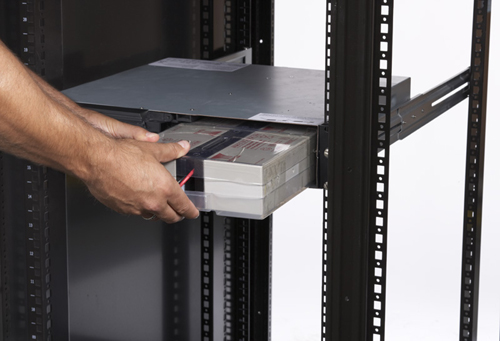

• Internal hot-swappable batteries can be replaced without powering down the UPS
• UPS startup on battery power
• Optional HotSwap Maintenance Bypass (MBP) enables the entire UPS to be serviced or replaced without interrupting power to loads
• Optional PowerPass® Distribution Modules (PPDMs) offer bypass and other features for maintenance or upgrade without powering down critical systems

Low total cost of ownership

• More real output power for dollar spent with 0.9 power factor
• Cuts energy usage and costs with >95% efficiency rating in high efficiency mode

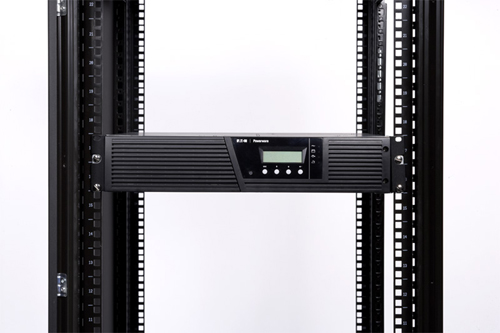

• 3000 VA in only 2U of space saves expensive data center real estate

UPS status and operation

• Bright, front panel LCD for easy monitoring and management
• LEDs to show system status
• Optional FlexPDU adds more plug-and-play flexibility, streamlining power distribution
• Multiple options for industry-standard communications
• Intelligent Power Manager supervisory software included free of charge
• Free NetWatch 5.0 software enables automatic shutdown of UPS-protected devices, including virtualized
• Direct monitoring via existing management systems and LANs

Communications

• A standard communication slot accepts interfaces for Web, SNMP, Modbus or serial connectivity
• Connect directly to the Ethernet network and the Internet to monitor and manage the UPS with a standard Web browser
• Monitor power conditions in real time through existing facilities or building management system
• Monitor and gracefully shut down multiple servers running various operating systems
• Receive alarm notifications from the UPS, environmental monitoring devices or security systems

Intelligent Power Software Suite:

• Intelligent Power Manager: software for extensive monitoring and management
• Intelligent Power Protector: shutdown software for extended power outages

Use each software independently or as a powerful combination. Together with your UPS, they provide end-to-end power management for maximum uptime and data integrity.

Intelligent Power Software Suite

Eaton's Intelligent Power® Software Suite incorporates two important applications for ensuring quality power and uptime: remote monitoring and management of power devices across the network and automatic, graceful shutdown when faced with an extended power outage.

Intelligent Power Manager supervisory software lets you monitor and manage multiple power and environmental devices across the network from a single interface, giving you up-to-the-minute information on the status of power in your network. It also works seamlessly with VMware's vCenter Server™ and vMotion™ as well as other platforms and migration applications.

Intelligent Power Protector protection software provides graceful, automatic shutdown of network devices during a prolonged power disruption, preventing data loss and saving work-in-progress. As part of Eaton's power network management system, these two applications work together to deliver comprehensive power management and protection. Both software programs are compatible with virtualization platforms from VMware®, Microsoft®, Red Hat® and Xen®.

Benefits for virtualized environments

Intelligent Power Manager's integration with platforms like vCenter and XenCenter™ helps data center managers reduce infrastructure and operating costs while increasing uptime, productivity and operational responsiveness.

• View critical power information on devices including UPSs, ePDUs and environmental sensors from the vCenter or XenCenter dashboard
• Instantly access critical information, such as UPS battery condition, load levels and battery runtime
• Remotely and gracefully shut down servers in clusters during an extended power outage
• Trigger vMotion, XenMotion™ and other migration applications to transparently move virtual machines to an available server on the network
• Monitor power usage and kWh to help you calculate your power usage effectiveness (PUE) and identify where to cut costs

Intelligent Power Manager

When it comes to managing power on your network, one missed anomaly or malfunctioning power device brings everything to a halt. Keeping an eye on the status of power devices across the network, and intervening before a blip cascades into a catastrophe, is a top priority.

Eaton's Intelligent Power Manager brings managing a wide range of power and environmental devices under control through a single, Web-based interface. This versatile software solution is compatible with network-enabled power devices, including Eaton UPSs, non-Eaton UPSs, environmental sensors and ePDUs. In addition, Intelligent Power Manager is the first power management software to not only integrate with VMware's vCenter, letting you manage power to your virtualized environment through the vCenter dashboard, but also to enable the remote shutdown of servers in clusters. Intelligent Power Manager even integrates with several virtualization platforms allowing ease of management and live migration, which will transparently move virtual machines from a server affected by a power interruption to a non-affected server on the network, maintaining data integrity with no downtime.

Features

• Monitor and manage multiple power and environmental devices from any Internet browser or your virtual machine management dashboard
• User-definable tree structure enables grouping, access and management of multiple devices across multiple locations
• Power consumption monitoring helps you track ways to improve both energy efficiency and PUE
• Auto discovery provides fast installation by automatically detecting devices on the network
• Mass-upgrading of firmware capability reduces network management card setup and maintenance time
• Power device asset management tracks moves, adds and changes of equipment
• SNMP devices are visible and their individual Web interfaces are accessible for editing and configuration
• Multiple password-protected access levels and support for secure communications
• All the functionality of an enterprise-class monitoring solution for free or at a fraction of the cost

Intelligent Power Protector

Most UPS applications are designed to protect your network devices from power anomalies, including surges, sags and frequency variations. But when the power goes out for longer than your available battery runtime, Intelligent Power Protector software facilitates automatic, graceful shutdown of computers, servers and network devices powered by a UPS, saving all work-in-progress and ensuring data integrity.

Intelligent Power Protector's versatile user interface shows you detailed information about connected servers and UPSs through USB and serial or network communication. The software has a clear, easy-to-use, multilingual interface available on any PC with a Web browser.

Features

• Helps you avoid data loss by gracefully shutting down computers and virtual machines/servers powered by an Eaton UPS during an extended power outage
• Watchdog capability keeps kiosks with a PC or server running smoothly by automatically identifying hang-ups and rebooting the machine
• Provides redundancy capability for dual-cord servers
• Easy-to-use interface from any PC with a Web browser
• Acquires UPS information through local or network communication and can be easily deployed on many computers
• Can be remotely managed, configured and updated with Eaton's Intelligent Power Manager
• Can communicate with the protected device directly (via USB) or through the network (via Web/SNMP card)

Images:

Specifications:

Product Snapshot
Power Rating	700-3000 VA
Voltage	120, 208, 220-240 Vac
Frequency	50/60 Hz (auto-sensing)
Configuration	Rackmount
Product Models	Powerware
9130 Rack Models: 120V, 50/60 Hz
Part Number	Power Rating(VA/Watts)	Input Plug	Output Receptacles
PW9130L700R-XL2U	700 / 630	5-15P	(6) 5-15R
PW9130L1000R-XL2U	1000 / 900	5-15P	(6) 5-15R
PW9130L2000R-XL2U	2000 / 1800	5-20P	(6) 5-20R, (1) L5-20R
PW9130L2500R-XL2U	2500 / 2250	L5-30P	(6) 5-20R, (1) L5-30R
PW9130L3000R-XL2U	3000 / 2700	L5-30P	(6) 5-20R, (1) L5-30R
9130 Models: 120V, 50/60 Hz Virtualization-ready bundles with Network Card-MS
Part Number	Power Rating(VA/Watts)	Input Plug	Output Receptacles
PW9130L2000R-XL2UN	2000 / 1800	5-20P	(6) 5-20R, (1) L5-20R
PW9130L3000R-XL2UN	3000 / 2700	L5-30P	(6) 5-20R, (1) L5-30R
TAA 9130 Rack Models: 120V, 50/60 Hz
Part Number	Power Rating(VA/Watts)	Input Plug	Output Receptacles
PW9130L700R-XL2US	700 / 630	5-15P	(6) 5-15R
PW9130L2000R-XL2US	2000 / 1800	5-20P	(6) 5-20R, (1) L5-20R
PW9130L3000R-XL2US	3000 / 2700	L5-30P	(6) 5-20R, (1) L5-30R

Documentation:

Download the Eaton 9130 Rack UPS Product Focus (PDF).

Download the Intelligent Power Software Suite Brochure (PDF).
