Eaton Power Distribution Unit (PDU)
Provides reliable data center power distribution for both raised and non-raised floor applications
Sorry, this product is no longer available, please contact us for a replacement.
Overview:
The Eaton PDU provides reliable data center power distribution for both raised and non-raised floor applications. To deliver effective power management and monitoring, the Eaton PDU incorporates the Eaton Energy Management System, optimizing both utilization and availability down to the branch circuit level. The optional Power Xpert Gateway PDP Card provides web-enabled, real-time monitoring for power quality status and fast response to power-related events.
To ensure the high performance required for today's data centers, this Eaton-designed and manufactured PDU delivers maximum flexibility in an integrated, factory-tested package:
Features & Benefits:
- Integrated isolation, monitoring, distribution and a wide array of options
- Scalable architecture and space-saving design
- Comprehensive monitoring and connectivity options
- Unparalleled ease of use through front-access only design, top and bottom cable access, and spacious wire-ways
Front Access Only:

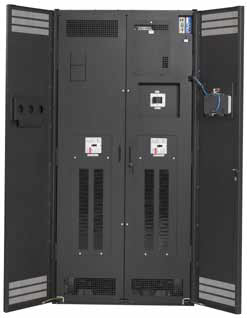

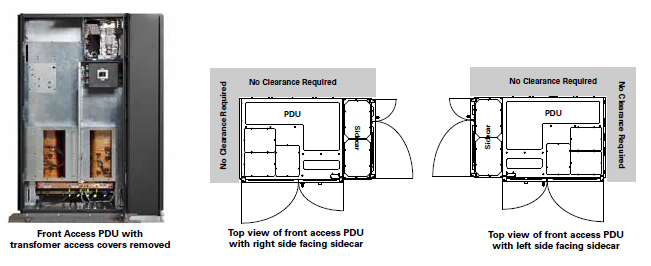

The front access Power Distribution Unit (PDU) builds on Eaton's strong portfolio of three-phase power distribution. The front access PDU increases the flexibility of the product line and allows for placement in space constrained applications such as against the wall or a corner install. The front access PDU offers ratings from 50 to 300 kVA and K13 and K20 transformers, including TP-1 efficiency. Included Energy Management System (EMS) offers cost effective intelligence to manage load profiling.
Easy Service and Setup
Reduce installation time and save on startup costs
- Optional IR scan windows allow for true front access maintenance/inspection
- Bottom and top entry/exit
- Top only cable entry/exit provides high efficiency power distribution to non-raised floor environments and retains the bottom exit for easy expansion and relocation
- Can be installed close to the wall to optimize floor space
- Easily removable side and rear covers with captive hardware
- Front access control panel for all standard communication expansion and maintenance
- Backed by Eaton's extensive network of over 240 field technicans for fast reliable service
- True front only design for operation and access
Monitoring and Connectivity
To understand your power profile
- Eaton's Energy Management System (EMS) provides state-of-the-art monitoring and alarming provisions
- PXGX PDP communication card allows for daisy chaining multiple PDUs together, reducing individual network drops to your power equipment
- Monitor the PDU from any computer without software through the integrated web interface, or easily integrate into existing building management systems or Eaton's Power Xpert Software
- Stores consumption trends for up to 24 months
- Up to 100A branch breaker CTs available
Safety
Protecting employees, contractors and service personnel
- Protective trim panels cover panelboard bus/breakers/wiring from accidental contact
- Separation of Low/High/Control voltage sections for safer servicing
- UL/CSA approved 60950
- Shunt trip in subfeed breakers
Aesthetics and Flexibility
Providing the right form-factor for demanding applications
- Durable textured finish gives a clean professional appearance to facilities and data centers
- Side car required to expand distribution capacity
- Field upgrade options for panel boards and subfeed breakers
Front and rear access:
Available Options
- Panelboards with 400A panel main breaker
- Additional subfeed breakers
- - 225A (50-150kVA)
- - 225A/400A (200-300 kVA)
- Branch circuit monitoring up to 100A per branch CT
- Plexiglas see-through doors
- Input and ground compression lug provisions
- Air skirts
- Dual input with manual kirk key or sync check interlock
- Lockout breaker tabs
- Auxiliary and shunt trip main cabinet subfeeds
- No local Emergency Power Off option
- Field upgradable capabilities

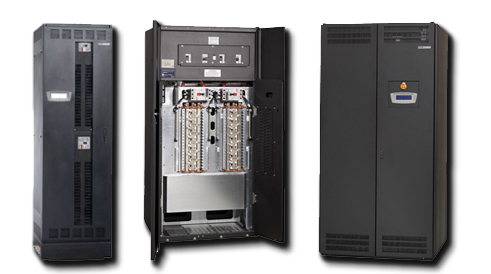

The Eaton line of three-phase power distribution units (PDUs) provide robust power distribution that can be easily tailored to meet the design specifications of any facility or data center. The PDU offers ratings from 50 to 300 kVA and K13 and K20 transformers, including TP-1 efficiency. Energy Management System (EMS) offers cost effective intelligence to manage load efficiency.
Easy Service and Setup
Reduce installation time and save on startup costs
- Backed by Eaton's extensive network of over 240 field technicans for fast reliable service
- Ample cabling space between panelboards and for subfeed breakers
- Standard top and bottom cable access for more flexible installation options
- Front access for operation and general service requirements
- Easily removable side and rear covers with captive hardware
- Front access control panel for all standard communication expansion and maintenance
Monitoring and Connectivity
To understand your power profile
- Eaton's Energy Management System (EMS) provides state-of-the-art monitoring and alarming provisions
- PXGX PDP communication card allows for daisy chaining multiple PDUs together, reducing individual network drops to your power equipment
- Monitor the PDU from any computer without software through the integrated web interface, or easily integrate into existing building management systems or Eaton's Power Xpert Software
- Stores consumption trends for up to 24 months
- Up to 100A branch breaker CTs available
- Auxiliary contacts to interface with third-party monitoring for subfeed breaker positions
Safety
Protecting employees, contractors and service personnel
- Protective trim panels cover panelboard bus/breakers/wiring from accidental contact
- Separation of Low/High/Control voltage sections for safer servicing
- UL/CSA approved 60950
- Shunt trip in subfeed breakers
Aesthetics and Flexibility
Providing the right form-factor for demanding applications
- Durable finish gives a clean professional appearance to facilities and data centers
- Side car options to expand distribution capacity
Specifications:
| Electrical Characteristics | |
| Input ratings: | |
| Voltage: | 208V, 480V or 600V: Three-phase, three-wire plus ground (Transformerless: three-phase, four-wire plus ground) |
| Frequency: | 60 Hz |
| Output ratings: | |
| Voltage: | 208V/120V, 480V or 600V: Three-phase, four-wire plus ground |
| Frequency: | 60 Hz |
| Distribution | |
| Cutler-Hammer® 42 pole panelboards with 225A main breaker | |
| Cutler-Hammer® Series C molded case subfeed breakers up to 225A | |
| Up to eight subfeed breakers | |
| Custom subfeed ratings available | |
| Factory installed branch circuit breakers | |
| Options | |
| Dual main input breakers | |
| High kAIC input breakers | |
| TVSS (80 kA-200 kA) | |
| Lightning arrestor | |
| Transient suppression plate | |
| Floor Stands (12”, 18”, 24” & 36”) | |
| Junction box | |
| Manual restart | |
| Isolated ground | |
| Eaton Energy Management System | |
| Branch circuit monitoring | |
| Remote power panels | |
| Distribution cables (WHIPS) | |
| Communication X-Slots™ (Two) | |
| Physical Characteristics | |
| 30 to 50 kVA (K1-K20): | 36"W x 32"D x 76"H |
| 200 to 225 kVA (K1-K13): | 36”W x 32”D x 76”H |
| 200 to 225 kVA (K20): | 41”W x 35”D x 76”H |
| 300 kVA (K1-K20): | 41”W x 35”D x 76”H |
| Monitoring Features | |
Metered Values: |
|
| Input voltage: L-L | |
| Output voltage: L-L & L-N | |
| Phase output current | |
| Neutral current | |
| Ground current | |
| kVA, KW, Hz | |
| Total Harmonic Distortion (THD) | |
| Power factor / phase | |
| Percent load / phase | |
| Load Profiling | |
| Min & Max V, I, Hz, KW recorded over a four hour period | |
| Captures highest reading on monthly basis, with trend information over last 23 months | |
| Alarms | |
| Transformer over-temp. & shutdown | |
| Over-and under-voltage (input & output) | |
| High current (Three-phases, N, G) | |
| Phase rotation (input & output) | |
| Phase loss | |
| Building alarms (Two - programmable) | |
| Voltage THD | |
| Current THD | |
| Over/Under frequency | |
| Output overload (3-Levels) | |
| Modem call | |
| Control | |
| EPO (Optional) | |
| Custom shutdowns on alarms: - Phase rotation - Phase loss - Ground fault - Site wiring fault - Building alarms |
|
| Connectivity | |
| Modbus | |
| Modem | |
| Optional Power Xpert Gateway PDP card for network interface | |
Documentation:
Download the Eaton Front Access PDU data sheet (PDF).
Download the Eaton Front/Rear Access PDU Data Sheet (PDF).
